Spring Plungers, with ball, headed,
internal hexagon, metric sizes

Series EH22030

Search the Newman Tools site

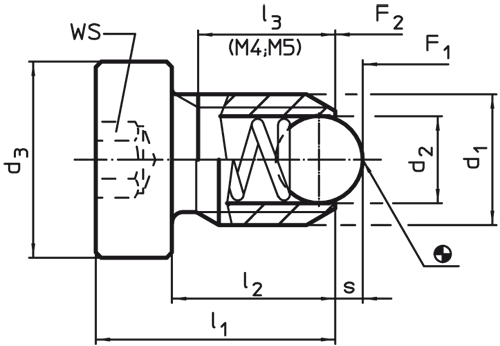

EH 22030.

Spring Plungers, with ball, headed,
internal hexagon, metric sizes


Note:
To be used for locating or for applying pressure, as a detent or for ejection. Precise screwing depth due to head (respect l3 for M 4 / M 5).
Temperature range up to 250 °C.

Material:
Body:
  • Free cutting steel, blackened
  • Stainless steel 1.4305
Ball:
  • Ball-bearing steel, hardened
  • Stainless steel, hardened
Spring:
  • Stainless steel





free cutting steel, standard spring load

Ref. No. former Ref. No. d1 d2 d3 l1 l2 l3 s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0930 2203.930 M4 2,5 6 12 9 7,5 0,8 2 8 14 1
HAL.22030.0931 2203.931 M5 3 8 14 10 8,2 0,9 2,5 8 14 2,3
HAL.22030.0932 2203.932 M6 3,5 10 15 10 - 1 3 11 18 3,9
HAL.22030.0933 2203.933 M8 4,5 13 18 12,5 - 1,5 4 18 31 7,7
HAL.22030.0934 2203.934 M10 6 16 23 17 - 2 5 24 45 14
HAL.22030.0935 2203.935 M12 8 18 26 19 - 2,5 6 26 49 21



* statistical average value



stainless steel, standard spring load

Ref. No. former Ref. No. d1 d2 d3 l1 l2 l3 s WS Spring
load
F1
N~*
Spring
load
F2
N~*

g
HAL.22030.0940 2203.940 M4 2,5 6 12 9 7,5 0,8 2 8 14 1,1
HAL.22030.0941 2203.941 M5 3 8 14 10 8,2 0,9 2,5 8 14 2,3
HAL.22030.0942 2203.942 M6 3,5 10 15 10 - 1 3 11 18 3,9
HAL.22030.0943 2203.943 M8 4,5 13 18 12,5 - 1,5 4 18 31 7,8
HAL.22030.0944 2203.944 M10 6 16 23 17 - 2 5 24 45 14
HAL.22030.0945 2203.945 M12 8 18 26 19 - 2,5 6 26 49 21



* statistical average value
