One Pass Keyway Broaches

American Standard Inch   |  Metric to ISO H9 Tolerance


One Pass Keyway Broaches - American Standard

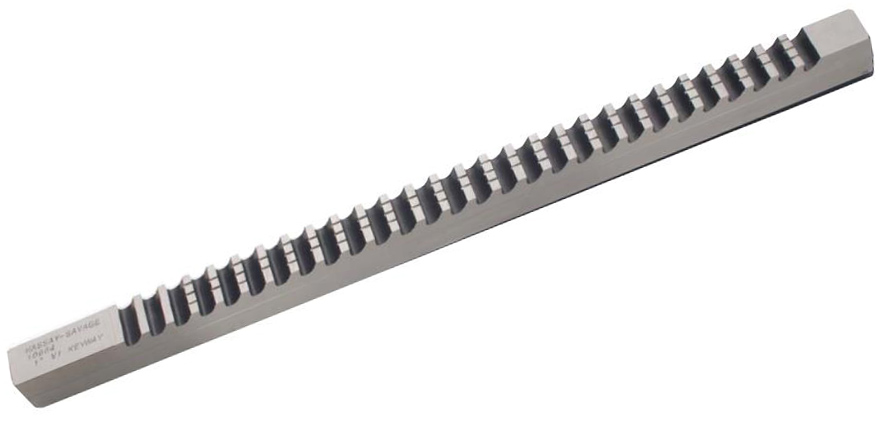

Hassay Savage HSS keyway broaches are available as standard items in sizes from 1/16" to 1".


Rake and relief angles are precisely made for efficient broaching of mild steel. Pressures listed are for maximum length of cut. If these lengths must be exceeded, a special Hassay Savage keyway broach should be ordered for minimum length of cut. Pieces may be broached by stacking and clamping.


For special widths and depths, custom keyway broaches are also available within a 2-weeks period. This is an excellent turnaround for the buyer looking for a special application in production or prototype research.



EDP No.

Description

Broach

Keyway Width Tolerance

Dimensions

Min. Length of Cut

Max. Length of Cut

Pressure Required for Max. L/C

HAS.10208-COP Chamfer, one-pass 1/8-II .1252" - .1262" 3/16" x 10 3/4" 1/4" 1 1/2" 780 lbs
HAS.10210-COP Chamfer, one-pass 5/32-II .1564" - .1574" 3/16" x 10 3/4" 1/4" 1 1/2" 1370 lbs
HAS.10212-OP One-pass, no chamfer 3/16-II .1877" - .1887" 3/16" x 10 3/4" 1/4" 1 1/2" 1930 lbs
HAS.10312-COP Chamfer, one-pass 3/16-III .1877" - .1887" 3/8" x 18 1/2" 5/16" 1 11/16" 1090 lbs
HAS.10316-COP Chamfer, one-pass 1/4-III .2502" - .2512" 3/8" x 18 1/2" 5/16" 1 11/16" 1840 lbs
HAS.10320-COP Chamfer, one-pass 5/16-III .3127" - .3137" 3/8" x 18 1/2" 5/16" 1 11/16" 2860 lbs
HAS.10324-OP One-pass, no chamfer 3/8-III .3755" - .3765" 3/8" x 18 1/2" 5/16" 1 11/16" 4030 lbs








One Pass Metric Keyway Broaches to ISO H9 Tolerance

Hassay Savage HSS keyway broaches are available as standard items in sizes from 1/16" to 1".


Rake and relief angles are precisely made for efficient broaching of mild steel. Pressures listed are for maximum length of cut. If these lengths must be exceeded, a special Hassay Savage keyway broach should be ordered for minimum length of cut. Pieces may be broached by stacking and clamping.


For special widths and depths, custom keyway broaches are also available within a 2-weeks period. This is an excellent turnaround for the buyer looking for a special application in production or prototype research.

EDP No.

Description

Broach

Keyway Width Tolerance

For Standard Millimeter Keys

Dimensions

Min. Length of Cut

Max. Length of Cut

Pressure Required for Max. L/C

HAS.11103-OP One-pass, no chamfer 3 mm-I .1185" - .1190" 3 x 3 mm 1/8" x 8 1/2" 13/64" 1 1/8" 720 lbs
HAS.11204-COP Chamfer, one-pass 4 mm-II .1581" - .1585" 4 x 4 mm 1/4" x 10 3/4" 1/4" 1 1/2" 1510 lbs
HAS.11205-COP Chamfer, one-pass 5 mm-II .1975" - .1979" 5 x 5 mm 1/4" x 10 3/4" 1/4" 1 1/2" 2325 lbs
HAS.11306-COP Chamfer, one-pass 6 mm-III .2372" - .2376" 6 x 6 mm 3/8" x 18 1/2" 5/16" 1 11/16" 1920 lbs
HAS.11308-COP Chamfer, one-pass 8 mm-III .3159" - .3163" 8 x 8 mm 3/8" x 18 1/2" 5/16" 1 11/16" 3020 lbs

link to Hassay broach index page
