Series 946

DIN 6335-AL



Inch and Metric Size, Aluminum
Aluminum
Star Knobs
Blank, Tapped or Blind Bore Type
Blank, Tapped or Blind Bore Type
DIN 6335-AL
DIN 6335-AL

DIN 6335-AL

Specification

Hand knob: Aluminum, metric size available in matte or polished finish
Inch size only available in matte finish
Both dimensions, inch and metric, are interchangeable
for blank type

Information

Star knobs with threaded stud, see GN 6335.4-SG.
Inch size and blank available in polished finish upon request.
Hand knobs are available blank, with plain blind bores, or
with threaded blind bores in both inch and metric sizes.
Plain and threaded through bores in both inch and metric
sizes are available upon request.
Special inch or metric bores and threads available upon
request.

Dimensions in: inches
(millimeters)

Part Number
Matte

d1

d2
Tapped

d3
Blind Bore

d4

d5

e

h2

h3

t1
min

t2

946.5TCA2/EMT

1.57
(40)

5/16-18



.55
(14)

.11
(2.8)

.28
(7)

.98
(25)

.55
(14)

.59
(15)

.47
(12)

946.2BCA2/CMT



.315

946.6TCA3/EMT

1.97
(50)

3/8-16



.71
(18)

.11
(2.8)

.31
(8)

1.26
(32)

.79
(20)

.71
(18)

.63
(16)

946.3BCA3/CMT



.375

946.8TCA4/EMT

2.48
(63)

1/2-13



.79
(20)

.15
(3.8)

.39
(10)

1.57
(40)

.98
(25)

.87
(22)

.79
(20)

946.4BCA4/CMT



.500

946.10TCA5/EMT

3.15
(80)

5/8-11



.98
(25)

.15
(3.8)

.47
(12)

1.97
(50)

1.18
(30)

1.10
(28)

1.18
(30)

946.5BCA5/CMT



.625

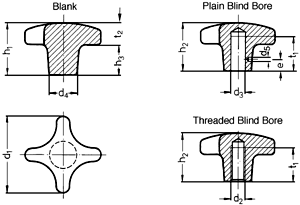

Blank Type Table
Dimensions in: millimeters
(inches)

Part Number
Matte

d1

d4

h1

h3

t2

946.CA2/AMT

1.57
(40)

.55
(14)

26
(1.02)

.55
(14)

.47
(12)

946.CA3/AMT

1.97
(50)

.71
(18)

34
(1.34)

.79
(20)

.63
(18)

946.CA4/AMT

2.48
(63)

.79
(20)

42
(1.65)

.98
(25)

.79
(20)

946.CA5/AMT

3.15
(80)

.98
(25)

52
(2.05)

1.18
(30)

1.18
(30)

Metric Table
Dimensions in: millimeters
(inches)

Part Number

d1

d2
Tapped

d3
Blind Bore

d4

d5

e

h2

h3

t1
min

t2

Matte

Polished

946.8NCA2/EMT

946.8NCA2/EPO

40
(1.57)

M8 x 1.25



14
(.55)

2.8
(.11)

7
(.28)

25
(.98)

14
(.55)

15
(.59)

12
(.47)

946.8MCA2/CMT

946.8MCA2/CPO



8

946.10NCA3/EMT

946.10NCA3/EPO

50
(1.97)

M10 x 1.5



18
(.71)

2.8
(.11)

8
(.31)

32
(1.26)

20
(.79)

18
(.71)

16
(.63)

946.10MCA3/CMT

946.10MCA3/CPO



10

946.12NCA4/EMT

946.12NCA4/EPO

63
(2.48)

M12 x 1.75



20
(.79)

3.8
(.15)

10
(.39)

40
(1.57)

25
(.98)

22
(.87)

20
(.79)

946.12MCA4/CMT

946.12MCA4/CPO



12

946.16NCA5/EMT

946.16NCA5/EPO

80
(3.15)

M16 x 2.0



25
(.98)

3.8
(.15)

12
(.47)

50
(1.97)

30
(1.18)

28
(1.10)

30
(1.18)

946.16MCA5/CMT

946.16MCA5/CPO



16



 .

April 2023, March 2020, updated January 2016 CSS, July 2004

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
