Chasers for Geometric Style Die Heads
How to order | Recommended Cutting Face Angles | Reference page
For proper order entry, you will need the following:
- Number of sets required
- Part Number *
If no part number is available, please also supply:
- Diameter and Pitch
- Size and Style of die head
- Chaser Style (Regular, Projection, etc.)
- Thread Form (UN, ISO METRIC, PIPE, British Whitworth, etc.)
- Chamfer Angle
- RH or LH threads
- Material to be threaded
- Cutting Face Angle

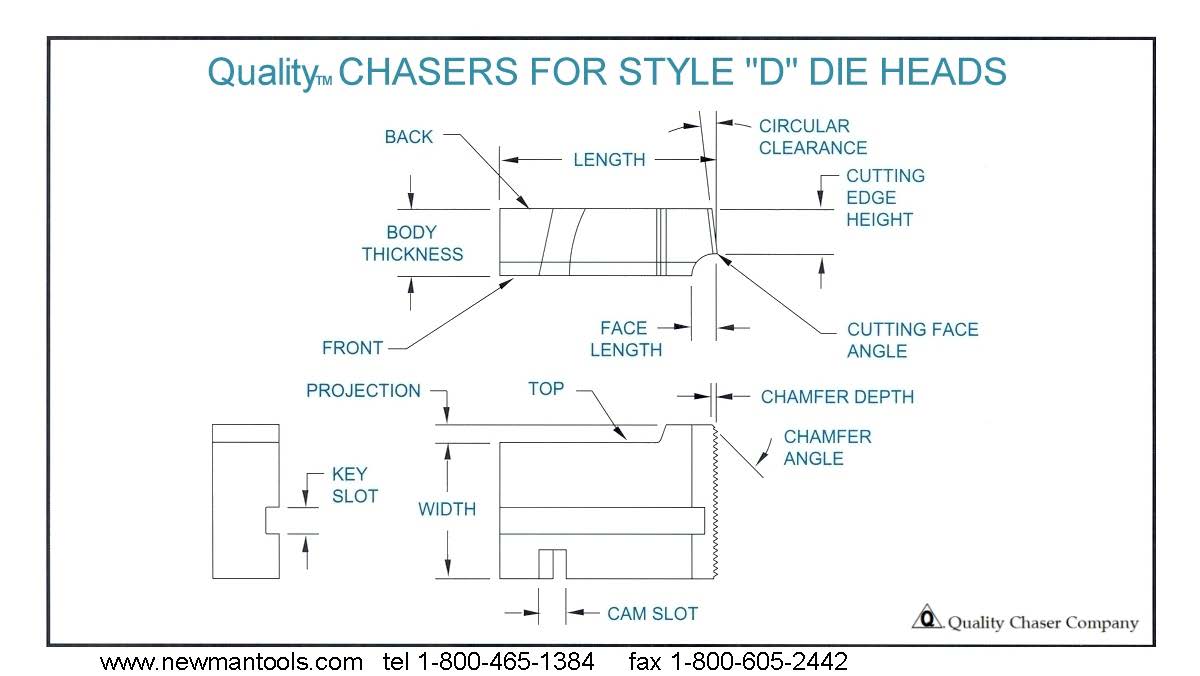

Quality CHASERS FOR STYLE D & STYLE K DIE HEADS
Type D – For geometric, rubometric, fahrion, taco and any die heads that use geometric Type D chasers.
The standard chamfer angle is 33° on regular style chasers and 45° on projection style. This chamfer angle may be changed to suit the job, since tool life will be greatly enhanced by lengthening the chamfer and spreading the cutting load over a larger area of the chaser.
Chamfer Angles
The standard chamfer angle is 33° on regular style chasers and 45° on projection style. This chamfer angle may be changed to suit the job, since tool life will be greatly enhanced by lengthening the chamfer and spreading the cutting load over a larger area of the chaser.
Cutting Face Angles
RECOMMENDED CUTTING FACE ANGLES

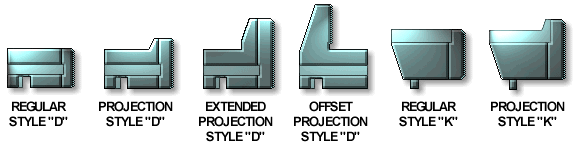

Quality chasers for Geometric style die heads are available in several configurations. The cutting edge grinds or hook angles vary depending upon the type of material that the chaser will cut. The chart below lists our recommendations for cutting various materials.
| MATERIAL | STRAIGHT THREADS | TAPERED THREADS | |
 |
Cast | 15° Radial Hook | 10° Radial Hook |
| Die Cast | 15° Radial Hook | 10° Radial Hook | |
| Bronze Cast | 10° Hook | 5° Hook | |
| Rod | 15° Radial Hook | 10° Radial Hook | |
| Stamping | 15° Radial Hook | 10° Radial Hook | |
| Bakelite | 5° Snub | 5° Snub | |
| Beryllium | 15° Hook | 10° Hook | |
 |
Bar | 5° Hook | Straight |
| Cast | 5° Snub | 5° Snub | |
| Forging | 10° Hook | 5° Hook | |
| Red | 10° Hook | 5° Hook | |
| Stamping | 10° Hook | 5° Hook | |
| Tubing | 10° Hook | 5° Hook | |
| Naval | 10° Hook | 5° Hook | |
| Yellow | 5° Hook | Straight | |
 |
Bar | 10° Hook | 5° Hook |
| Cast | Straight | Straight | |
| Cast Aluminum | 10° Hook | 5° Hook | |
| Manganese | 10° Hook | 5° Hook | |
| Naval | 10° Hook | 5° Hook | |
| Phosphor | 10° Hook | 5° Hook | |
| Silicone | 5° Hook | Straight | |
| Tubing | 10° Hook | 5° Hook | |
| Celluloid | Straight | Straight | |
| Copper | 15° Radial Lip Hook | 10° Radial Hook | |
| Delron | Straight | Straight | |
| Drill Rod | 10° Hook | 10° Hook | |
| Everdur | 10° Hook | 5° Hook | |
| Fiberglas | 5° Hook | 5° Hook | |
| Fibre | 5° Snub | 5° Snub | |
| Formica | 5° Hook |  |
|
| Hastalloy | 15° Hook | 10° Hook | |
| Iconel | 15° Hook | 10° Hook | |
| Invar | 15° Hook | 10° Hook | |
 |
Black Pipe | 10° Hook | 5° Hook |
| Caste | Straight | Straight | |
| Ductile | Straight | Straight | |
| Gray | Straight | Straight | |
| Malleable | 10° Hook | 5° Hook | |
| Wrought | 10° Hook | 5° Hook | |
| Magnesium | 15° Radial Hook | 10° Radial Hook | |
| Manganese | 15° Hook | 10° Hook | |
| Monel Metal | 10° Hook | 5° Hook | |
| MATERIAL | STRAIGHT THREADS | TAPERED THREADS | |
| Nickel | 15° Hook | 10° Hook | |
| Nylon | 5° Hook | 5° Hook | |
| Plastic | 5° Hook | 5° Hook | |
| Polypropylene | 5° Hook | 5° Hook | |
| Rubber | 5° Snub | 5° Snub | |
 |
12L14 & 12L17 A-36 |
10° Hook 15° Hook |
5° Hook 10° Hook |
| Bessemer Screw | 10° Hook | 5° Hook | |
| Bolt, grade 2 & 3 Bolt, grade 5 & 8 |
10° Hook 15° Hook |
5° Hook 10° Hook |
|
| Cast | 10° Hook | 5° Hook | |
| Carbon - SAE 1010-1035 - SAE 1112-X1340- SAE 1040-1095 |
10° Hook 10° Hook 15° Hook |
5° Hook 5° Hook 10° Hook |
|
| Chrome - SAE 5120-52100 |
15° Hook |
10° Hook |
|
| Chrome Vanadium - SAE 6115-6195 |
15° Hook |
10° Hook |
|
| Forged | 15° Hook | 10° Hook | |
| Leaded | 10° Hook | 5° Hook | |
| Manganese - SAE T1330-T1350 |
15° Hook |
10° Hook |
|
| Molybdinum - SAE 4130-4820 |
15° Hook |
10° Hook |
|
| Nickel - SAE 2015-2515 |
15° Hook |
10° Hook |
|
| Ni-Chrome - SAE 3115-3450 |
15° Hook |
10° Hook |
|
| Nitralloy | 15° Hook | 10° Hook | |
| Rolled (Hot & Cold) | 10° Hook | 5° Hook | |
| Semi-Casting | Straight | Straight | |
| Stainless 300 Series 400 Series |
15° Hook 10° Hook |
15° Hook 10° Hook |
|
| Stamping | 15° Hook | 5° Hook | |
| Stress & Fatigue Proof | 10° Hook | 10° Hook | |
| Stress Proof 8620 | 15° Hook | 10° Hook | |
| Tool | 15° Hook | 10° Hook | |
| Tubing | 10° Hook | 5° Hook | |
| Titanium | 15° Hook | 15° Hook | |
| Teflon | 5° Hook | 5° Hook | |
| Zinc Diecast | 15° Radial Hook | 10° Radial Hook | |
