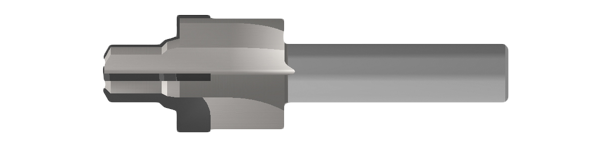

ISO6149/1 (SAEJ2244/1) METRIC PORT TOOL WITH LARGE SPOTFACE

ISO6149/1 (SAEJ2244/1) METRIC PORT TOOL reamer pilot port cutter

Metric port without identification notch

Precision ground for maximum concentricity

Polished flute face for optimum performance

Available with ALTiN+ coating, extends tool life

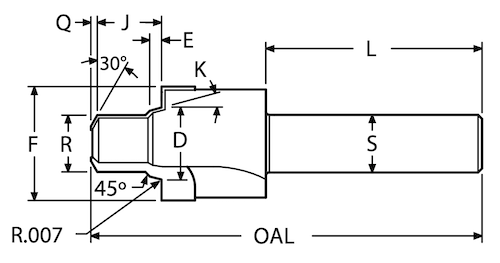

ISO6149/1 (SAEJ2244/1) dimensions

K (deg)	D (mm)	E (mm)	F (mm)	R (mm)	J (mm)	Q (inch)	L (inch)	S (inch)	OAL (inch)		THREAD	ORDER #
K (deg)	D (mm)	E (mm)	F (mm)	R (mm)	J (mm)	Q (inch)	L (inch)	S (inch)	OAL (inch)		THREAD	UNCOATED	ALTiN+
12 ̊	9.15	1.8	17.1	7.0	11.6	0.032	1.75	0.500	3.00	3	M8X1	6149-M8X1-F17	6149-M8X1-F17A
12 ̊	11.15	1.8	20.1	9.0	11.6	0.045	1.75	0.500	3.00	3	M10X1	6149-M10X1-F20	6149-M10X1-F20A
15 ̊	13.85	2.6	23.1	10.5	14.1	0.045	1.88	0.500	3.12	3	M12X1.5	6149-M12X1.5-F23	6149-M12X1.5-F23A
15 ̊	15.85	2.6	25.1	12.5	14.1	0.055	1.88	0.500	3.38	4	M14X1.5	6149-M14X1.5-F25	6149-M14X1.5-F25A
15 ̊	17.85	2.6	28.1	14.5	15.6	0.060	1.88	0.500	3.38	4	M16X1.5	6149-M16X1.5-F28	6149-M16X1.5-F28A
15 ̊	19.85	2.6	30.1	16.5	17.1	0.070	2.12	0.750	3.70	4	M18X1.5	6149-M18X1.5-F30	6149-M18X1.5-F30A
15 ̊	21.85	2.6	32.1	18.5	17.5	0.080	2.12	0.750	3.75	4	M20X1.5	6149-M20X1.5-F32	6149-M20X1.5-F32A
15 ̊	23.85	2.6	34.1	20.5	18.1	0.080	2.12	0.750	3.80	4	M22X1.5	6149-M22X1.5-F34	6149-M22X1.5-F34A
15 ̊	29.45	3.3	40.1	25.0	22.1	0.080	2.12	0.750	3.94	4	M27X2.0	6149-M27X2.0-F40	6149-M27X2.0-F40A
15 ̊	35.45	3.3	49.1	31.0	22.1	0.090	2.25	1.000	4.25	4	M33X2.0	6149-M33X2.0-F49	6149-M33X2.0-F49A

Back to Top of Page

Back to Top of Page

Trademarks are the properties of their respective owner(s).

February 2022

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
