ISO 6149 Metric Port Tools

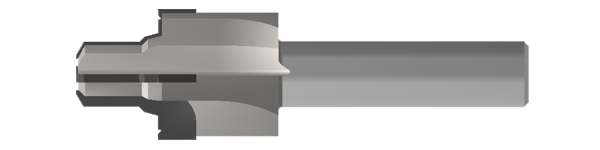

ISO 6149 cutter

without ID notch   |    with ID notch

  • Port Tools are ground between centers to ensure absolute concentricity.

  • They are made from heat-treated alloy steel with brazed carbide inserts.

  • They are designed to enlarge a pre-drilled hole and easily produce a complex form.

  • Port Tools can be used for both lathe and mill applications.

  • Available with ALTiN+ coating, extends tool life

  • ISO6149-1 port tools come in two different types. As indicated by the ISO6149-1 specification, the port can be with or without an ID notch. This port is also called the SAEJ2244-1.




ISO Metric Port Tools  without ID Notch

Order on Line  add to cart


6149 port cutter
ISO 6149 without ID notch

K (deg)

D (mm)

E (mm)

F (mm)

R (mm)

J (mm)

Q (inch)

L (inch)

S (inch)

OAL (inch)

THREAD

ORDER #

UNCOATED

ALTiN+

12 ̊

9.15

1.8

14.1

7.0

11.6

0.032

1.75

0.500

3.00

3

M8X1

6149-M8X1

6149-M8X1A

12 ̊

11.15

1.8

16.1

9.0

11.6

0.045

1.75

0.500

3.00

3

M10X1

6149-M10X1

6149-M10X1A

15 ̊

13.85

2.6

19.1

10.5

14.1

0.045

1.88

0.500

3.12

3

M12X1.5

6149-M12X1.5

6149-M12X1.5A

15 ̊

15.85

2.6

21.1

12.5

14.1

0.055

1.88

0.500

3.38

4

M14X1.5

6149-M14X1.5

6149-M14X1.5A

15 ̊

17.85

2.6

24.1

14.5

15.6

0.060

1.88

0.500

3.38

4

M16X1.5

6149-M16X1.5

6149-M16X1.5A

15 ̊

19.85

2.6

26.1

16.5

17.1

0.070

2.12

0.750

3.70

4

M18X1.5

6149-M18X1.5

6149-M18X1.5A

15 ̊

21.85

2.6

27.1

18.5

17.5

0.080

2.12

0.750

3.75

4

M20X1.5

6149-M20X1.5

6149-M20X1.5A

15 ̊

23.85

2.6

29.1

20.5

18.1

0.080

2.12

0.750

3.80

4

M22X1.5

6149-M22X1.5

6149-M22X1.5A

15 ̊

29.45

3.3

34.2

25.0

22.1

0.080

2.12

0.750

3.94

4

M27X2.0

6149-M27X2.0

6149-M27X2.0A

15 ̊

35.45

3.3

43.1

31.0

22.1

0.090

2.25

1.000

4.25

4

M33X2.0

6149-M33X2.0

6149-M33X2.0A

15 ̊

44.45

3.3

52.1

40.0

22.6

0.090

2.25

1.000

4.35

4

M42X2.0

6149-M42X2.0

6149-M42X2.0A

15 ̊

50.45

3.3

57.1

46.0

25.1

0.095

2.25

1.000

4.35

4

M48X2.0

6149-M48X2.0

6149-M48X2.0A

15 ̊

62.45

3.3

67.1

58.0

27.6

0.095

2.25

1.250

4.35

4

M60X2.0

6149-M60X2.0

6149-M60X2.0A






ISO 6149 Port Cutters with ID Notch

Order on Line  add to cart

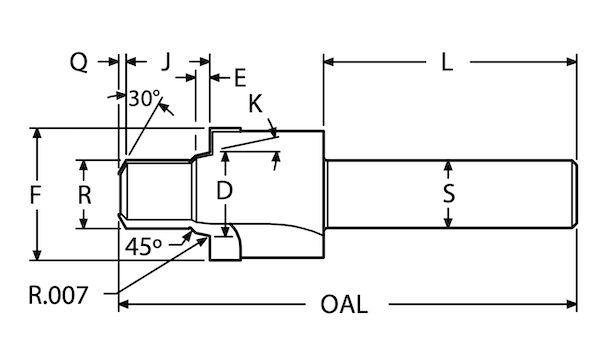

iiso 6149 with id notch iso 6149 with od notch dimensions

K (deg)

D (mm)

E (mm)

F (mm)

R (mm)

J (mm)

Q (inch)

L (inch)

S (inch)

OAL (inch)

THREAD

ORDER #

UNCOATED

ALTiN+

12 ̊

9.15

1.8

17.1

7.0

11.6

0.032

1.75

0.500

3.00

3

M8X1

6149-M8X1-ID

6149-M8X1-IDA

12 ̊

11.15

1.8

20.1

9.0

11.6

0.045

1.75

0.500

3.00

3

M10X1

6149-M10X1-ID

6149-M10X1-IDA

15 ̊

13.85

2.6

23.1

10.5

14.1

0.045

1.88

0.500

3.12

3

M12X1.5

6149-M12X1.5-ID

6149-M12X1.5-IDA

15 ̊

15.85

2.6

25.1

12.5

14.1

0.055

1.88

0.500

3.38

4

M14X1.5

6149-M14X1.5-ID

6149-M14X1.5-IDA

15 ̊

17.85

2.6

28.1

14.5

15.6

0.060

1.88

0.500

3.38

4

M16X1.5

6149-M16X1.5-ID

6149-M16X1.5-IDA

15 ̊

19.85

2.6

30.1

16.5

17.1

0.070

2.12

0.750

3.70

4

M18X1.5

6149-M18X1.5-ID

6149-M18X1.5-IDA

15 ̊

21.85

2.6

32.1

18.5

17.5

0.080

2.12

0.750

3.75

4

M20X1.5

6149-M20X1.5-ID

6149-M20X1.5-IDA

15 ̊

23.85

2.6

34.1

20.5

18.1

0.080

2.12

0.750

3.80

4

M22X1.5

6149-M22X1.5-ID

6149-M22X1.5-IDA

15 ̊

29.45

3.3

40.1

25.0

22.1

0.080

2.12

0.750

3.94

4

M27X2.0

6149-M27X2.0-ID

6149-M27X2.0-IDA

15 ̊

35.45

3.3

49.1

31.0

22.1

0.090

2.25

1.000

4.25

4

M33X2.0

6149-M33X2.0-ID

6149-M33X2.0-IDA

15 ̊

44.45

3.3

60.1

40.0

22.6

0.090

2.25

1.000

4.35

4

M42X2.0

6149-M42X2.0-ID

6149-M42X2.0-IDA

15 ̊

50.45

3.3

66.1

46.0

25.1

0.095

2.25

1.000

4.35

4

M48X2.0

6149-M48X2.0-ID

6149-M48X2.0-IDA

15 ̊

62.45

3.3

76.1

58.0

27.6

0.095

2.25

1.250

4.35

4

M60X2.0

6149-M60X2.0-ID

6149-M60X2.0-IDA
