AS5202-X Port Tool WITHOUT PILOT - Carbide Tipped

Meets the requirements of AS5202/MS33649 and AND10050 ports






Features

  • Ideal for non-standard minor diameter lengths

  • Polished flute face for optimum performance

  • Meets the requirements of AS5202/MS33649 and AND10050 ports

  • ALTiN+ coating for improved surface finish

  • The AS5202/MS33649 requires a UNJ thread

  • The AND10050 thread requires a UN thread




Specifications

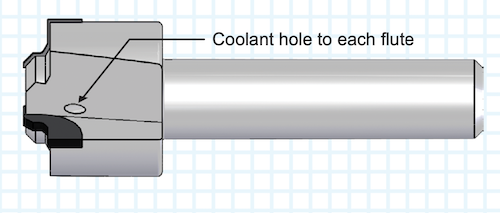

as5202 dimensions

A

D

E

G

F

S

L

OAL

FLUTES

TUBE

THREAD

ORDER #

EDP #

UNCOATED

ALTiN+

UNCOATED

ALTiN+

0.367

0.2665

0.071

0.121

0.575

0.500

2.00

2.75

3

N/A

0.2500-28 UNJF-3B

Solid Carbide

AS5202-01X

AS5202-01XA

406850

406851

0.446

0.3305

0.071

0.121

0.742

0.500

2.00

2.75

3

0.125

0.3125-24 UNJF-3B

Carbide Tipped

AS5202-02X

AS5202-02XA

406852

406853

0.508

0.3925

0.071

0.121

0.805

0.500

2.00

2.75

3

0.188

0.3750-24 UNJF-3B

AS5202-03X

AS5202-03XA

406854

406855

0.570

0.4565

0.083

0.133

0.888

0.500

2.00

2.75

3

0.250

0.4375-20 UNJF-3B

AS5202-04X

AS5202-04XA

406856

406857

0.633

0.5195

0.083

0.133

0.950

0.500

2.00

2.75

3

0.312

0.5000-20 UNJF-3B

AS5202-05X

AS5202-05XA

406858

406859

0.696

0.5825

0.091

0.151

1.012

0.500

2.00

2.75

3

0.375

0.5625-18 UNJF-3B

AS5202-06X

AS5202-06XA

406860

406861

0.758

0.6455

0.102

0.162

1.105

0.500

2.00

2.88

3

0.438

0.6250-18 UNJF-3B

AS5202-07X

AS5202-07XA

406862

406863

0.883

0.7715

0.102

0.172

1.240

0.750

2.13

3.13

3

0.500

0.7500-16 UNJF-3B

AS5202-08X

AS5202-08XA

406864

406865

0.946

0.8345

0.115

0.185

1.300

0.750

2.13

3.13

3

0.562

0.8125-16 UNJ-3B

AS5202-09X

AS5202-09XA

406866

406867

1.008

0.8985

0.115

0.195

1.415

0.750

2.13

3.25

3

0.625

0.8750-14 UNJF-3B

AS5202-10X

AS5202-10XA

406868

406869

1.164

1.0255

0.133

0.213

1.500

0.750

2.13

3.25

3

0.688

1.0000-12 UNJF-3B

AS5202-11X

AS5202-11XA

406870

406871

1.242

1.0885

0.133

0.213

1.665

0.750

2.13

3.25

3

0.750

1.0625-12 UNJ-3B

AS5202-12X

AS5202-12XA

406872

406873

1.370

1.2135

0.133

0.213

1.790

1.000

2.25

3.50

3

0.875

1.1875-12 UNJ-3B

AS5202-14X

AS5202-14XA

406874

406875

1.495

1.3385

0.133

0.213

1.965

1.000

2.25

3.50

3

1.000

1.3125-12 UNJ-3B

AS5202-16X

AS5202-16XA

406876

406877

1.683

1.5265

0.133

0.213

2.090

1.000

2.25

3.50

3

1.125

1.5000-12 UNJF-3B

AS5202-18X

AS5202-18XA

406878

406879

1.808

1.6505

0.133

0.223

2.310

1.000

2.25

3.63

3

1.250

1.6250-12 UNJ-3B

AS5202-20X

AS5202-20XA

406880

406881

2.058

1.9005

0.133

0.223

2.628

1.000

2.25

3.63

3

1.500

1.8750-12 UNJ-3B

AS5202-24X

AS5202-24XA

406882

406883

2.433

2.2755

0.133

0.223

3.050

1.250

2.25

3.75

3

1.750

2.2500-12 UNJ-3B

AS5202-28X

AS5202-28XA

406884

406885

2.683

2.5265

0.133

0.223

3.520

1.250

2.25

3.75

3

2.000

2.5000-12 UNJ-3B

AS5202-32X

AS5202-32XA

406886

406887
