AS5202-R Port Tool, MS33649 Reamer Pilot, Carbide Tipped

AS5202-R port tools have replaced MS33649-R port cutters

As5202 reamer pilot port cutter tools

This port is also meets the requirements of MS33649.

The reamer pilot design cuts the minor-thread diameter.

Also available with New Coolant Through Options.

ALTiN+ coated tool for higher cutting speed

This port requires a UNJ thread which specifies a larger minor-thread diameter

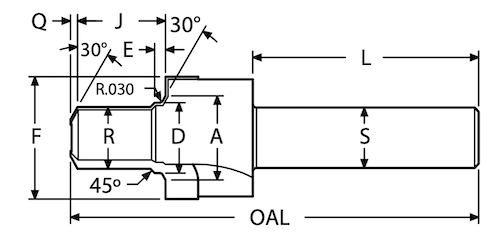

AS5202R-dimensions



All dimensions are in inches

A

D

E

F

J

Q

R

L

S

OAL

Flutes

TUBE

THREAD

ORDER #

UNCOATED

ALTiN+

0.367

0.2665

0.071

0.575

0.425

0.025

0.219

2.00

0.500

3.00

3

N/A

0.2500-28 UNJF-3B

Solid Carbide

AS5202-01R

AS5202-01RA

0.446

0.3305

0.071

0.742

0.597

0.032

0.276

1.75

0.500

3.00

3

0.125

0.3125-24 UNJF-3B

Carbide Tipped

AS5202-02R

AS5202-02RA

0.508

0.3925

0.071

0.805

0.603

0.040

0.339

1.75

0.500

3.00

3

0.188

0.3750-24 UNJF-3B

AS5202-03R

AS5202-03RA

0.570

0.4565

0.083

0.888

0.676

0.040

0.393

1.88

0.500

3.12

3

0.250

0.4375-20 UNJF-3B

AS5202-04R

AS5202-04RA

0.633

0.5195

0.083

0.950

0.676

0.045

0.455

1.88

0.500

3.12

3

0.312

0.5000-20 UNJF-3B

AS5202-05R

AS5202-05RA

0.696

0.5825

0.091

1.012

0.729

0.060

0.513

1.88

0.500

3.38

3

0.375

0.5625-18 UNJF-3B

AS5202-06R

AS5202-06RA

0.758

0.6455

0.102

1.105

0.745

0.060

0.575

1.88

0.500

3.38

3

0.438

0.6250-18 UNJF-3B

AS5202-07R

AS5202-07RA

0.883

0.7715

0.102

1.240

0.854

0.070

0.693

2.12

0.750

3.84

3

0.500

0.7500-16 UNJF-3B

AS5202-08R

AS5202-08RA

0.946

0.8345

0.115

1.300

0.870

0.070

0.758

2.12

0.750

3.84

3

0.562

0.8125-16 UNJ-3B

AS5202-09R

AS5202-09RA

1.008

0.8985

0.115

1.415

0.950

0.080

0.810

2.12

0.750

3.94

3

0.625

0.8750-14 UNJF-3B

AS5202-10R

AS5202-10RA

1.164

1.0255

0.133

1.500

1.084

0.080

0.925

2.12

0.750

4.12

3

0.688

1.0000-12 UNJF-3B

AS5202-11R

AS5202-11RA

1.242

1.0885

0.133

1.665

1.084

0.080

0.985

2.12

0.750

4.12

3

0.750

1.0625-12 UNJ-3B

AS5202-12R

AS5202-12RA

1.370

1.2135

0.133

1.790

1.084

0.090

1.112

2.25

1.000

4.37

3

0.875

1.1875-12 UNJ-3B

AS5202-14R

AS5202-14RA

1.495

1.3385

0.133

1.965

1.084

0.090

1.235

2.25

1.000

4.37

3

1.000

1.3125-12 UNJ-3B

AS5202-16R

AS5202-16RA

1.683

1.5265

0.133

2.090

1.136

0.090

1.425

2.25

1.000

4.53

3

1.125

1.5000-12 UNJF-3B

AS5202-18R

AS5202-18RA

1.808

1.6505

0.133

2.310

1.136

0.090

1.549

2.25

1.000

4.54

3

1.250

1.6250-12 UNJ-3B

AS5202-20R

AS5202-20RA

2.058

1.9005

0.133

2.628

1.147

0.095

1.799

2.25

1.000

4.54

3

1.500

1.8750-12 UNJ-3B

AS5202-24R

AS5202-24RA

2.433

2.2755

0.133

3.050

1.263

0.095

2.174

2.50

1.250

4.92

3

1.750

2.2500-12 UNJ-3B

AS5202-28R

AS5202-28RA

2.683

2.5265

0.133

3.520

1.388

0.095

2.424

2.50

1.250

5.15

3

2.000

2.5000-12 UNJ-3B

AS5202-32R

AS5202-32RA

Back to Top of Page



AS5202 (MS33649) - REAMER PILOT PORT TOOL COOLANT THROUGH - CARBIDE TIPPED



Order on Line  add to cart

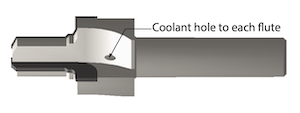

AS5202 R Coolant cutter

New Coolant Through

This port is also meets the requirements of MS33649.

The reamer pilot design cuts the minor-thread diameter.

ALTiN+ coated tool for higher cutting speed

This port requires a UNJ thread which specifies a larger minor-thread diameter

as5202R coolant dimensions

All dimensions are in inches

A

D

E

F

J

Q

R

L

S

OAL

TUBE

THREAD

ORDER #

UNCOATED

ALTiN+

0.446

0.3305

0.071

0.742

0.597

0.032

0.276

1.75

0.500

3.00

3

0.125

0.3125-24 UNJF-3B

AS5202-02R-X3

AS5202-02R-X3A

0.508

0.3925

0.071

0.805

0.603

0.040

0.339

1.75

0.500

3.00

3

0.188

0.3750-24 UNJF-3B

AS5202-03R-X3

AS5202-03R-X3A

0.570

0.4565

0.083

0.888

0.676

0.040

0.393

1.88

0.500

3.12

3

0.250

0.4375-20 UNJF-3B

AS5202-04R-X3

AS5202-04R-X3A

0.633

0.5195

0.083

0.950

0.676

0.045

0.455

1.88

0.500

3.12

3

0.312

0.5000-20 UNJF-3B

AS5202-05R-X3

AS5202-05R-X3A

0.696

0.5825

0.091

1.012

0.729

0.060

0.513

1.88

0.500

3.38

3

0.375

0.5625-18 UNJF-3B

AS5202-06R-X3

AS5202-06R-X3A

0.883

0.7715

0.102

1.240

0.854

0.070

0.693

2.12

0.750

3.84

3

0.500

0.7500-16 UNJF-3B

AS5202-08R-X3

AS5202-08R-X3A

1.008

0.8985

0.115

1.415

0.950

0.080

0.810

2.12

0.750

3.94

3

0.625

0.8750-14 UNJF-3B

AS5202-10R-X3

AS5202-10R-X3A

1.242

1.0885

0.133

1.665

1.084

0.080

0.985

2.12

0.750

4.12

3

0.750

1.0625-12 UNJ-3B

AS5202-12R-X3

AS5202-12R-X3A

1.370

1.2135

0.133

1.790

1.084

0.090

1.112

2.25

1.000

4.37

3

0.875

1.1875-12 UNJ-3B

AS5202-14R-X3

AS5202-14R-X3A

1.495

1.3385

0.133

1.965

1.084

0.090

1.235

2.25

1.000

4.37

3

1.000

1.3125-12 UNJ-3B

AS5202-16R-X3

AS5202-16R-X3A











Back to Top of Page
