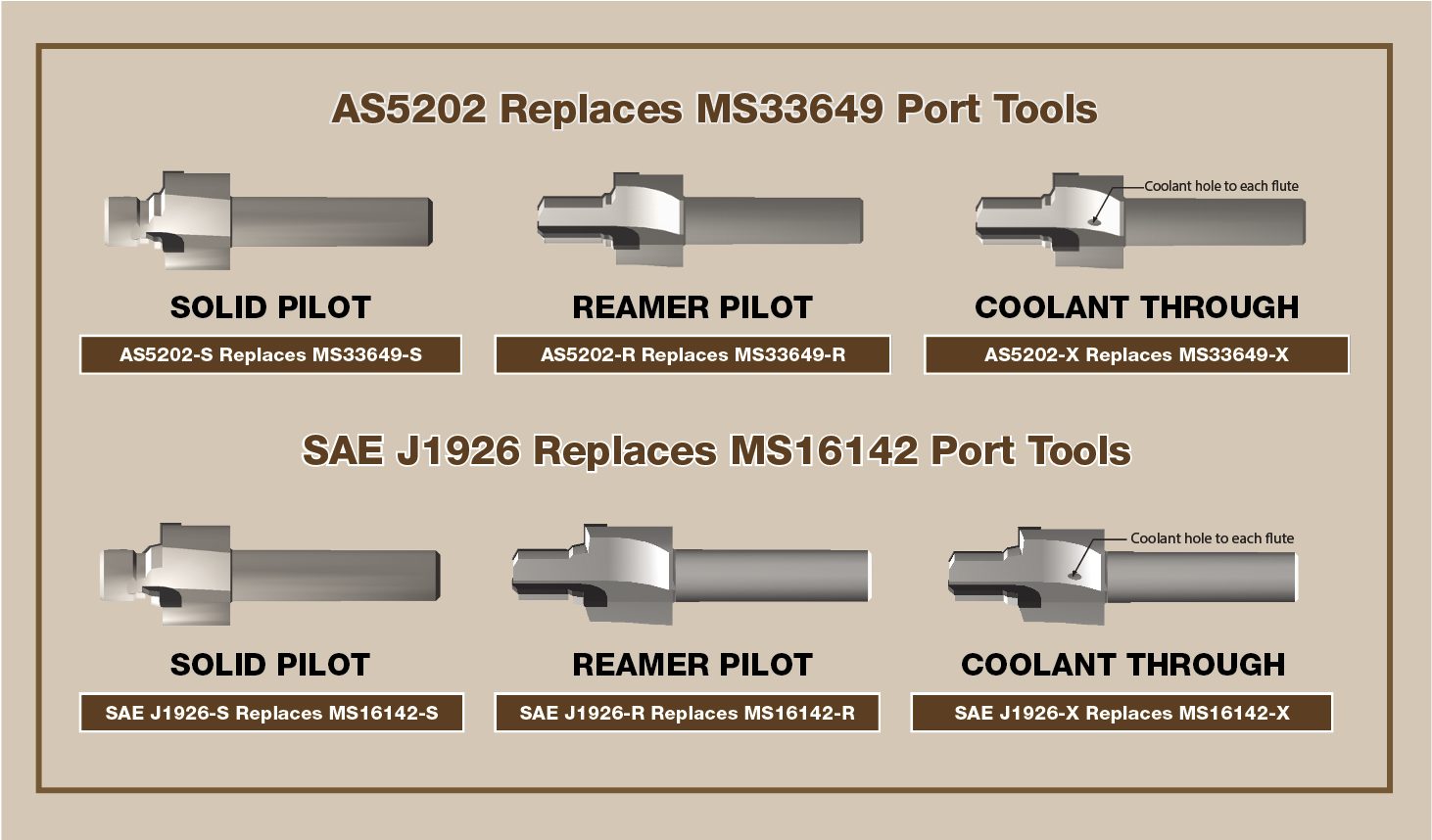

New SAE J1926 Tools to Replace MS16142 Port Tools
They are designed to enlarge a pre-drilled hole and easily produce a complex form.
The reamer pilot tool cuts the minor thread diameter to size.
Other
names for this port are SAEJ1926, SAEJ514, and the O-Ring Boss (ORB).
ORDER # | K | D | E | F | R | J | L | S | O.A.L. | TUBE | THREAD |
MS16142-2R | 12 | .3605 | .082 | .682 | .271 | .479 | 1.75 | .500 | 3.00 | .125 | .3125-24UNF-2B |
MS16142-3R | 12 | .4235 | .082 | .760 | .333 | .479 | 1.75 | .500 | 3.00 | .188 | .375-24UNF-2B |
MS16142-4R | 12 | .4895 | .101 | .838 | .386 | .558 | 1.88 | .500 | 3.12 | .250 | .4375-20UNF-2B |
MS16142-5R | 12 | .5525 | .101 | .916 | .449 | .558 | 1.88 | .500 | 3.12 | .312 | .500-20UNF-2B |
MS16142-6R | 12 | .6185 | .105 | .979 | .506 | .620 | 1.88 | .500 | 3.38 | .375 | .5625-18UNF-2B |
MS16142-8R | 15 | .8135 | .108 | 1.198 | .686 | .699 | 2.12 | .750 | 3.70 | .500 | .750-16UNF-2B |
MS16142-10R | 15 | .9445 | .108 | 1.354 | .802 | .792 | 2.12 | .750 | 3.80 | .625 | .875-14UNF-2B |
MS16142-12R | 15 | 1.1505 | .138 | 1.635 | .976 | .917 | 2.12 | .750 | 3.94 | .750 | 1.0625-12UN-2B |
MS16142-14R | 15 | 1.2755 | .138 | 1.775 | 1.102 | .917 | 2.25 | 1.000 | 4.21 | .875 | 1.1875-12UN-2B |
MS16142-16R | 15 | 1.4005 | .138 | 1.920 | 1.226 | .917 | 2.25 | 1.000 | 4.25 | 1.000 | 1.3125-12UN-2B |
MS16142-20R | 15 | 1.7155 | .140 | 2.280 | 1.538 | .917 | 2.25 | 1.000 | 4.35 | 1.250 | 1.625-12UN-2B |
MS16142-24R | 15 | 1.9645 | .140 | 2.570 | 1.788 | .917 | 2.25 | 1.000 | 4.35 | 1.500 | 1.875-12UN-2B |
MS16142-32R | 15 | 2.5895 | .140 | 3.490 | 2.413 | .917 | 2.50 | 1.250 | 5.15 | 2.000 | 2.500-12UN-2B |
The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
