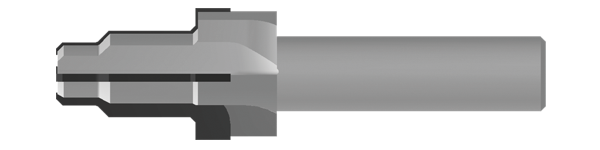

MS21921 - PORT TOOL - CARBIDE TIPPED

ms21921 port cutter

Precision ground for maximum concentricity

Polished flute face for optimum performance

Bodies made with head treated alloy steel

Available with ALTiN+ coating, extends tool life

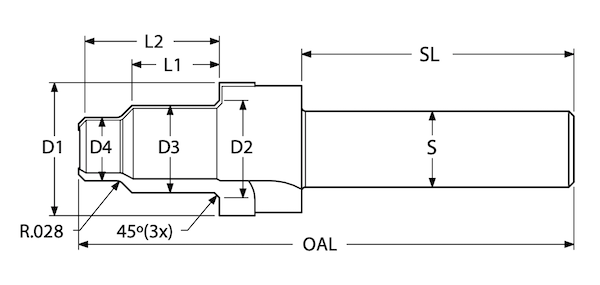

MS21921 cutter dimensions

All dimensions are in inches

D1	D2	D3	D4	L1	L2	S	SL	OAL		TUBE	THREAD	ORDER #
D1	D2	D3	D4	L1	L2	S	SL	OAL		TUBE	THREAD	UNCOATED	ALTiN+
0.400	0.328	0.277	0.173	0.425	0.570	0.500	1.75	3.00	3	0.125	0.3125-24 UNJF-3B	Solid Carbide
0.400	0.328	0.277	0.173	0.425	0.570	0.500	1.75	3.00	3	0.125	0.3125-24 UNJF-3B	MS21921-2	MS21921-2A
0.475	0.391	0.338	0.234	0.429	0.625	0.500	1.75	3.00	3	0.187	0.3750-24 UNJF-3B	MS21921-3	MS21921-3A
0.600	0.460	0.393	0.393	0.547	0.760	0.500	1.75	3.25	3	0.250	0.4375-20 UNJF-3B	Carbide Tipped
0.600	0.460	0.393	0.393	0.547	0.760	0.500	1.75	3.25	3	0.250	0.4375-20 UNJF-3B	MS21921-4	MS21921-4A
0.675	0.520	0.455	0.368	0.562	0.800	0.500	1.75	3.25	3	0.312	0.5000-20 UNJF-3B	MS21921-5	MS21921-5A
0.750	0.582	0.513	0.427	0.578	0.840	0.500	1.75	3.25	4	0.375	0.5625-18 UNJF-3B	MS21921-6	MS21921-6A
0.900	0.770	0.693	0.554	0.609	0.900	0.500	1.75	3.50	4	0.500	0.7500-16 UNJF-3B	MS21921-8	MS21921-8A
1.050	0.895	0.810	0.692	0.687	1.020	0.750	2.00	3.75	4	0.625	0.8750-14 UNJF-3B	MS21921-10	MS21921-10A
1.300	1.082	0.987	0.828	0.687	1.040	0.750	2.13	4.00	4	0.750	1.0625-12 UNJF-3B	MS21921-12	MS21921-12A
1.550	1.332	1.236	1.076	0.687	1.090	1.000	2.25	4.25	4	1.000	1.3125-12 UNJF-3B	MS21921-16	MS21921-16A
2.050	1.645	1.549	1.332	0.678	1.080	1.000	2.38	4.50	4	1.250	1.6250-12 UNJF-3B	MS21921-20	MS21921-20A

Back to Top of Page

Trademarks are the properties of their respective owner(s).

February 2022

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
