Port Cutters MS33649

New AS5202 Tools to Replace MS33649 Port Tools

MS33649-R - Reamer Pilot and MS33649-S Solid Pilot

( specs AS5202 and AS1171 )





 Reamer Pilot

 Solid Pilot

  • Port Tools are ground between centers to ensure absolute concentricity.

  • They are made from heat-treated alloy steel with brazed carbide inserts.

  • They are designed to enlarge a pre-drilled hole and easily produce a complex form.

  • Port Tools can be used for both lathe and mill applications.
MS33649 port tools come in two different styles. With the solid pilot tool, the minor
diameter must be cut to size before the tool can be used. This tool excels when the thread
depth deviates from standard. The reamer pilot tool cuts the minor thread diameter to size.
Also know as the AS5202.

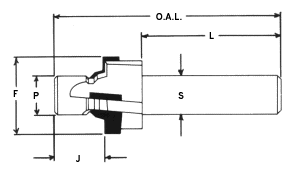

TUBE THREAD L S F

Reamer Pilot

 Solid Pilot

          R J O.A.L.  Part NUMBER  P  J  O.A.L.  Part NUMBER
1/8" 5/16"-24 1-3/4" 1/2" .742 .276 .610 3.00 MS33649-2R .274 .430 3.00 MS33649-2S
3/16" 3/8"-24 1-3/4" 1/2" .805 .339 .610 3.00 MS33649-3R .337 .470 3.00 MS33649-3S
1/4" 7/16"-20 1-7/8" 1/2" .888 .393 .675 3.12 MS33649-4R .392 .520 3.12 MS33649-4S
5/16" 1/2"-20 1-7/8" 1/2" .950 .455 .675 3.12 MS33649-5R .454 .560 3.12 MS33649-5S
3/8" 9/16"-18 1 7/8" 1/2" 1.012 .513 .730 3.38 MS33649-6R .511 .600 3.25 MS33649-6S

7/16" 5/8"-18 1 7/8" 1/2" 1.105 .575 .745 3.38 MS33649-7R .574 .600 3.25 MS33649-7S
1/2" 3/4"-16 2 1/8" 3/4" 1.240 .693 .855 3.84 MS33649-8R .692 .660 3.57 MS33649-8S
9/16" 13/16"-16 2 1/8" 3/4" 1.30 .758 .875 3.84 MS33649-9R .755 .700 3.61 MS33649-9S
5/8" 7/8"-14 2 1/8" 3/4" 1.415 .810 .950 3.94 MS33649-10R .809 .750 3.66 MS33649-10S
11/16" 1"-12 2 1/8" 3/4" 1.500 .952 1.080 4.12 MS33649-11R .923 .800 3.75 MS33649-11S

3/4" 1 1/16"-12 2 1/8" 3/4" 1.665 .985 1.080 4.12 MS33649-12R .983 .800 3.75 MS33649-12S
7/8" 1 3/16"-12 2 1/4" 1" 1.790 1.112 1.080 4.37 MS33649-14R 1.110 .800 4.00 MS33649-14S
1" 1 5/16"-12 2 1/4" 1" 1.965 1.235 1.080 4.37 MS33649-16R 1.233 .850 4.05 MS33649-16S
1 1/8" 1 1/2"-12 2 1/4" 1" 2.090 1.425 1.130 4.53 MS33649-18R MS33649-18S
1 1/4" 1 5/8"-12 2 1/4" 1" 2.310 1.549 1.130 4.54 MS33649-20R 1.797 .900 4.20 MS33649-20S

1 1/2" 1 7/8"-12 2 1/4" 1" 2.628 1.799 1.140 4.54 MS33649-24R 1.797 .900 4.20 MS33649-24S
1 3/4" 2 1/4"-12 2 1/2" 1 1/4" 3.050 2.174 1.270 4.92 MS33649-28R 2.172 .950 4.50 MS33649-28S
2" 2 1/2"-12 2 1/2" 1 1/4" 3.520 2.424 1.400 5.15 MS33649-32R 2.422 .950 4.60 MS33649-32S

February 2022, November 2020, April 2019, updated February 2010, September 2007, Sept 1999

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
