British Standard Parallel Pipe Port Contour Cutters ( Pipe Reamers) Carbide Tipped

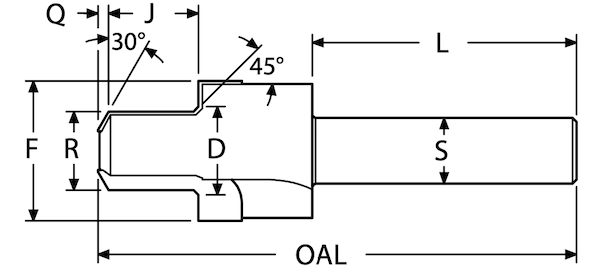

British standard parallel pipe port tools (PT-BSPP) cut the minor-thread diameter, the 45° angle, and the spot face
Meets the requirements of the ISO/BS2779
Precision ground for maximum concentricity
Polished flute face for optimum performance
Bodies made with head treated alloy steel
Available with ALTiN+ coating, extends tool life
All dimensions are in inches
D |
F |
J |
R |
Q |
L |
S |
OAL |
THREAD |
ORDER # |
||
UNCOATED |
ALTiN+ |
||||||||||
0.398 |
0.719 |
0.565 |
0.345 |
0.045 |
2.00 |
0.500 |
3.62 |
3 |
1/8 BSPP |
PT-BSPP-1/8 |
PT-BSPP-1/8A |
0.533 |
0.938 |
0.683 |
0.459 |
0.065 |
2.00 |
0.500 |
3.62 |
3 |
1/4 BSPP |
PT-BSPP-1/4 |
PT-BSPP-1/4A |
0.671 |
1.063 |
0.683 |
0.597 |
0.080 |
2.00 |
0.500 |
3.62 |
4 |
3/8 BSPP |
PT-BSPP-3/8 |
PT-BSPP-3/8A |
0.840 |
1.250 |
0.801 |
0.741 |
0.090 |
2.00 |
0.750 |
3.62 |
4 |
1/2 BSPP |
PT-BSPP-1/2 |
PT-BSPP-1/2A |
1.055 |
1.500 |
0.880 |
0.958 |
0.120 |
2.50 |
0.750 |
4.37 |
4 |
3/4 BSPP |
PT-BSPP-3/4 |
PT-BSPP-3/4A |
1.325 |
1.875 |
0.998 |
1.201 |
0.120 |
2.50 |
1.000 |
4.62 |
4 |
1.0 BSPP |
PT-BSPP-1.0 |
PT-BSPP-1.0A |
1.665 |
2.313 |
1.078 |
1.541 |
0.125 |
2.50 |
1.000 |
4.62 |
4 |
1 1⁄4 BSPP |
PT-BSPP-1-1/4 |
PT-BSPP-1-1/4A |
1.897 |
2.563 |
1.078 |
1.774 |
0.125 |
2.50 |
1.000 |
4.88 |
4 |
1 1⁄2 BSPP |
PT-BSPP-1-1/2 |
PT-BSPP-1-1/2A |
