SAE J1926-S MS16142S Port Contour Cutters

SAE J1926 port tools have replaced MS16142S

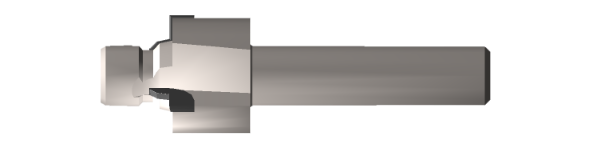

SAE j1926 solid pilot port cutter tools

The solid pilot design does not cut the minor-thread diameter.

This port is also called the O-Ring Boss or ORB, SAEJ1926-1, SAEJ514 or just SAE (dash number).

sae j1926s-dimensions



Polished flute face for optimum performance.

ALTiN+ coating for improved surface finish

All dimensions are in inches

K

D

E

F

P

J

L

S

OAL

FLUTES

TUBE

THREAD

SAE#

ORDER #

UNCOATED

ALTiN+

12 ̊

0.3605

0.082

0.682

0.270

0.365

2.00

0.500

3.00

3

0.125

0.3125-24 UNF-2B

SAE#2

SAEJ1926-02S

SAEJ1926-02SA

12 ̊

0.4235

0.082

0.760

0.331

0.415

2.00

0.500

3.00

3

0.188

0.3750-24 UNF-2B

SAE#3

SAEJ1926-03S

SAEJ1926-03SA

12 ̊

0.4895

0.101

0.838

0.385

0.445

2.00

0.500

3.12

3

0.250

0.4375-20 UNF-2B

SAE#4

SAEJ1926-04S

SAEJ1926-04SA

12 ̊

0.5525

0.101

0.916

0.448

0.465

2.00

0.500

3.12

3

0.312

0.5000-20 UNF-2B

SAE#5

SAEJ1926-05S

SAEJ1926-05SA

12 ̊

0.6185

0.105

0.990

0.504

0.495

2.00

0.500

3.25

3

0.375

0.5625-18 UNF-2B

SAE#6

SAEJ1926-06S

SAEJ1926-06SA

15 ̊

0.8135

0.108

1.198

0.685

0.560

2.12

0.750

3.57

3

0.500

0.7500-16 UNF-2B

SAE#8

SAEJ1926-08S

SAEJ1926-08SA

15 ̊

0.9445

0.108

1.354

0.801

0.610

2.12

0.750

3.66

3

0.625

0.8750-14 UNF-2B

SAE#10

SAEJ1926-10S

SAEJ1926-10SA

15 ̊

1.1505

0.138

1.635

0.975

0.640

2.12

0.750

3.75

3

0.750

1.0625-12 UN-2B

SAE#12

SAEJ1926-12S

SAEJ1926-12SA

15 ̊

1.2755

0.138

1.775

1.101

0.710

2.25

1.000

4.00

3

0.875

1.1875-12 UN-2B

SAE#14

SAEJ1926-14S

SAEJ1926-14SA

15 ̊

1.4005

0.138

1.935

1.225

0.710

2.25

1.000

4.05

3

1.000

1.3125-12 UN-2B

SAE#16

SAEJ1926-16S

SAEJ1926-16SA

15 ̊

1.7155

0.140

2.290

1.537

0.750

2.25

1.000

4.20

3

1.250

1.6250-12 UN-2B

SAE#20

SAEJ1926-20S

SAEJ1926-20SA

15 ̊

1.9645

0.140

2.570

1.787

0.750

2.25

1.000

4.20

3

1.500

1.8750-12 UN-2B

SAE#24

SAEJ1926-24S

SAEJ1926-24SA

15 ̊

2.5895

0.140

3.490

2.412

0.800

2.50

1.250

4.60

3

2.000

2.5000-12 UN-2B

SAE#32

SAEJ1926-32S

SAEJ1926-32SA
