Sun Hydraulic Cartridge Valve tools

sun hyraulic cavity port cutter

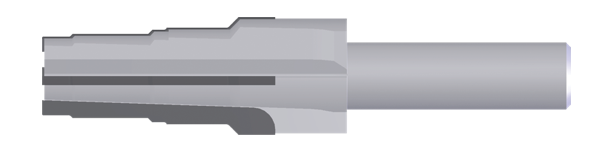

Sun Hydraulic cavity tools are available in both HSS roughing step drills and carbide tipped finishing versions.

Precision ground for maximum concentricity

Polished flute face for optimum performance

Available with ALTiN+ coating, extends tool life

Drills, HSS

sun hydraulic drill

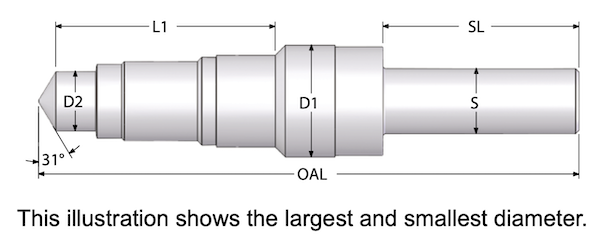

sun hydraulic drill dimensions

All dimensions are in inches

D1	D2	L1	S	SL	OAL	Flutes	THREAD	ORDER #
D1	D2	L1	S	SL	OAL	Flutes	THREAD	UNCOATED	ALTiN+
1.285	0.686	2.517	0.750	2.400	6.40	2	1.0-14UNS-2B	T-2A-DRILL	T-2A-DRILL-A
1.312	0.876	2.382	0.750	2.400	6.40	2	1.0-14UNS-2B	T-3A-DRILL	T-3A-DRILL-A
1.312	0.876	2.147	0.750	2.400	6.40	2	1.0-14UNS-2B	T-5A-DRILL	T-5A-DRILL-A
0.980	0.688	2.018	0.750	2.400	6.40	2	M20X1.5-6H	T-10A-DRILL	T-10A-DRILL-A
0.980	0.688	2.322	0.750	2.400	6.40	2	M20X1.5-6H	T-11A-DRILL	T-11A-DRILL-A
0.980	0.688	1.858	0.750	2.400	6.40	2	M20X1.5-6H	T-13A-DRILL	T-13A-DRILL-A
1.500	1.251	2.377	0.750	2.400	6.50	2	M36X2.0-6H	T-16A-DRILL	T-16A-DRILL-A
0.978	0.529	2.780	0.750	2.400	6.80	2	M20X1.5-6H	T-21A-DRILL	T-21A-DRILL-A
1.125	0.405	1.804	0.750	2.400	6.40	2	M16X1.5-6H	T-162A-DRILL	T-162A-DRILL-A
1.125	0.405	2.143	0.750	2.400	6.40	2	M16X1.5-6H	T-163A-DRILL	T-163A-DRILL-A

Back to Top of Page

Rougher Cutters, Carbide tipped

All dimensions are in inches

D1	D2	L1	S	SL	OAL	Flutes	THREAD	ORDER #
D1	D2	L1	S	SL	OAL	Flutes	THREAD	UNCOATED	ALTiN+
1.725	1.226	2.697	1.000	2.50	6.50	4	M36X2.0-6H	T-17A-ROUGH-X8	T-17A-ROUGH-X8A
2.038	1.601	3.135	1.000	2.50	6.88	4	M48X2.0-6H	T-18A-ROUGH-X8	T-18A-ROUGH-X8A

Back to Top of Page

Finisher Cutters, Carbide Tipped

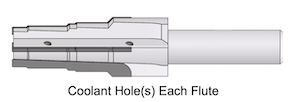

sun hydraulic cutter

cutter dimensions

All dimensions are in inches

D1	D2	L1	S	SL	OAL	Flutes	THREAD	ORDER #
D1	D2	L1	S	SL	OAL	Flutes	THREAD	UNCOATED	ALTiN+
1.312	0.876	2.073	0.750	2.50	5.88	4	1.0-14UNS-2B	T-2A-FINISH-X8	T-2A-FINISH-X8A
1.709	0.876	1.885	0.750	2.25	5,38	4	1.0-14UNS-2B	T-3A-FINISH-X8	T-3A-FINISH-X8A
1.079	0.876	1.635	0.750	2.25	5.13	4	1.0-14UNS-2B	T-5A-FINISH-X6	T-5A-FINISH-X6A
0.704	0.438	0.752	0.500	2.00	4.00	4	M16X1.5-6H	T-8A-FINISH-X3	T-8A-FINISH-X3A
1.000	0.688	1.726	0.750	2.25	5.25	4	M20X1.5-6H	T-10A-FINISH-X8	T-10A-FINISH-X8A
1.000	0.688	2.036	0.750	2.25	5.50	4	M20X1.5-6H	T-11A-FINISH-X6	T-11A-FINISH-X6A
1.000	0.688	1.539	0.750	2.25	5.00	4	M20X1.5-6H	T-13A-FINISH-X6	T-13A-FINISH-X6A
1.563	1.251	2.448	1.000	2.25	6.00	4	M36X2.0-6H	T-16A-FINISH-X8	T-16A-FINISH-X8A
1.750	1.251	2.448	1.000	2.50	6.50	4	M36X2.0-6H	T-17A-FINISH-X8	T-17A-FINISH-X8A
2.063	1.626	3.135	1.000	2.50	6.88	4	M48X2.0-6H	T-18A-FINISH-X8	T-18A-FINISH-X8A
1.000	0.688	2.539	0.750	2.25	6.00	4	M20X1.5-6H	T-21A-FINISH-X8	T-21A-FINISH-X8A
0.938	0.516	1.377	0.750	2.25	4.88	4	M16X1.5-6H	T-162A-FINISH-X6	T-162A-FINISH-X6A
0.938	0.516	1.800	0.750	2.25	5.25	4	M16X1.5-6H	T-163A-FINISH-X6	T-163A-FINISH-X6A

Trademarks are the properties of their respective owner(s).

January 2024, February 2022

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
