Erick Magnetic Holding Devices









Model 100BDErick Magna Holder – Model MAG.C-100BD

Features

  • NEW DOUBLE WIDE 110 lbs. pull.
  • Universal model to accommodate practically every type of holding application.
  • Base has powerful magnetic pull in excess of 100 lbs. with magnetic release.

Specifications

  • Base – 3-1/2" x 2-3/8" x 1-1/2"
  • Shipping Weight – 2 lb.
  • Packaged – One per box
Back to Top of Page

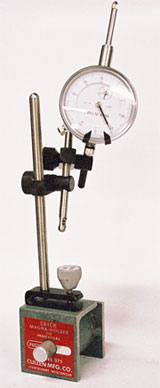

Erick Magna Holder ?| Model 375Erick Magna Holder – Model MAG.C-375

New Push-Button Magnetic Base Indicator Holder

It's On! ... It's Off!

Combination – Model MAG.C-375
Magnetic Base Only – Model MAG.C-375-B
Swivel Adaptor Only – Model MAG.C-375-IH

Features

  • Now with just a push of the button you can turn on and off the powerful magnetic field of this finely engineered unit.
  • With the magnetic field in the ON position the base has a powerful magnetic grip across the bottom, both sides and in the V step across the top for attaching to rounds.
  • Precision adjustment for “zeroing in” indicators.
  • Swivel adaptor provides great flexibility in positioning indicator where desired.
  • Base is precision ground on all surfaces.

Indicating piece in lathe with large dial indicator
Indicating piece in lathe with
large dial indicator.

Specifications

  • Base – 2" x 2" x 2"
  • Pillar Height Over Base – 8"
  • Main Pillar Diameter – 5/16"
  • Shipping Weight – 2 lbs.
  • Packaged – One per box







Back to Top of Page

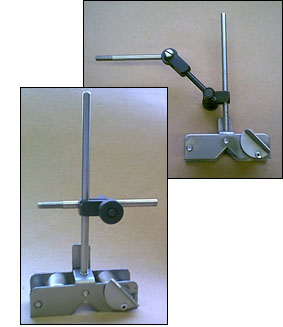

300 Neo 90 lbs. Pull

MAG.C-300 Neo 90 lbs. Pull

Top or side mount 1/4 x 6" stainless steel rod.

Specifications

  • Base – 3-1/2" x 1-1/8" x 1-1/2"
  • Shipping Weight – 2 lb.
  • Packaged – One per box









Back to Top of Page





Erick Magna Holder ?| Model 350-AErick Magna Holder – Model MAG.C-350-A

Features

  • Now comes complete with necessary attachments to accommodate practically every type test and dial indicator.
  • Large 1/4" lug back type Indicators mount in specially designed extension links which provide great flexibility in positioning Indicator.
  • To accommodate small test Indicators mount the 6 inch long, 1/4" diameter stainless steel attachment in a 360° swivel block.
  • Unit has precision lateral adjustment controlled by large thumb screw located at rear of unit with 1/2" travel – highly important for "zeroing in" Indicator.
  • All components of this unit are of chrome, aluminum, stainless steel and black oxide.
  • Base has powerful magnetic pull in excess of 50 lbs. with magnetic release.

Specifications

  • Base – 3-1/2" x 1-1/8" x 1-1/2"
  • Shipping Weight – 1 1/2 lb.
  • Packaged – One per box
Back to Top of Page

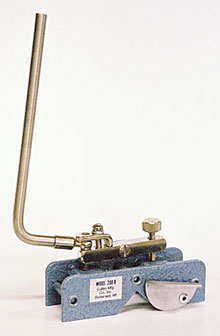

Erick Magna Holder – Model MAG.C-200-B

Designed for use with the small test indicators.

Erick Magna Holder ?| Model 200-B

Features

  • Tens of thousands in use all over the world.
  • Unit has fine precision adjustment similar to surface gauge controlled by thumb screw allowing the most minute adjustment of Indicator without touching work or Indicator.
  • Base has the same powerful magnetic grip as the 350-A and like the 350-A will adhere firmly to round or flat surfaces with magnetic release.
  • 1/4" stainless steel non-magnetic holding rod is 6" long, set in hardened ball socket setting which allows universal positioning of Indicator.
  • Base finish is hammered blue. All other parts are plated or are of stainless steel.
  • Base has powerful magnetic pull in excess of 50 lbs. with magnetic release.

Specifications

  • Base – 3-1/2" x 1-1/8" x 1"
  • Shipping Weight – 1 lb.
  • Packaged – One per box
Back to Top of Page





Erick Magna Holder – Model MAG.C-300

Erick Magna Holder ?| Model 300Features

  • Here is a rugged holder for Indicators for use as lathe stops, etc.
  • Assures fast accurate work in facing, boring, turning, etc
  • Widely used on machines where graduations are hard to read.
  • Lug back Indicators (not furnished) are mounted directly on unit with bolt and nut provided to give powerful compact unit.
  • Base has powerful lifetime guaranteed magnetic grip which assures you of accurate work.

Specifications

  • Base – 3-1/2" x 1-1/8" x 1"
  • Shipping Weight – 3/4 lb.
  • Packaged – One per box
Back to Top of Page





Erick Swivel Adapter – Model MAG.C-210

Features

  • Our Swivel Adapter shown here is designed for use with our Models 100B, 200B and on the 1/4" diameter rod attachment for the 350-A.
  • It accommodates most small test Indicators.
  • When used on the above unit with Indicator attached, this unit adds greatly to the flexibility of the Indicator holders, making possible the setting of the Indicator in almost every conceivable position.

Specifications

  • Length – 3"
  • Rod – 1/4" diameter X 3" Long
  • Shipping Weight – 1/2 lb.
  • Packaged – One per box
Back to Top of Page





Erick Swivel Adapter ?| Model 210Y
Lug Back Yoke

Erick Swivel Adapter – Model MAG.C-210Y

Swivel Yoke Adapter

Features

  • Works with our 210 Swivel Adapter
  • Slot 1/4" with 1/4" Shoulder Screw
  • 1/4" Rod Diameter
  • Gun Metal Finish

Specifications

  • Shipping Weight – 1/4 lb.
  • Packaged – One per box



Back to Top of Page





Erick Nozzle Holder– Model MAG.C-1300

Having trouble holding your . . . Coolant lines, Oil lines, Air lines
in the right position without special clamps, drilling several holes, etc?

Erick Nozzle Holder?| Model 1300Features

  • Here is the answer – a powerful magnetic base with holding rod set in ball socket which allows setting in any conceivable position.
  • A holding attachment mounted on the rod which clamps tightly to the holding rod and also holds firmly your coolant, air or oil lines while affording adjustment in any position by loosening and tightening the wing nut.
  • Accommodates any type of hose or line up to 1 inch in diameter or down to 1/8 inch diameter.
  • Highly portable – powerful base adheres to any ferrous surface, round or flat.

Specifications

  • Base – 3-1/2" x 1 1/4" x 1"
  • Holding Rod – 6" long
  • Shipping Weight – 1 lb.
  • Packaged – One per box
Back to Top of Page
