Flex-hone® Flexible Honing Tools

Features  |  Product Range

What is honing?

Honing is an abrasive machining process that produces a precision surface on a metal workpiece by scrubbing an abrasive grinding stone or grinding wheel against it along a controlled path. Honing is primarily used to improve the geometric form of a surface, but can also improve the surface finish.
Wikepedia

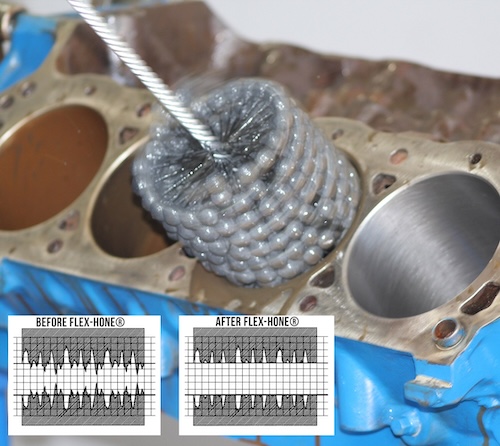

The Flex-hone® Tool produces a controlled surface finish unobtainable by any other method. A high percentage plateau surface is produced free of cut, torn and folded metal.



Features

  • Simple and easy to use, powered by an ordinary drill
  • Available for bores from 5/32 to 36, 4mm to 914mm diameter
  • Creates a high percentage plateau surface
  • Deburrs cross holes
  • Edge blends
  • Self-centering
  • Self-aligning to bore
  • Self-compensating for wear.


If Your Specifications Call For:

  1. A plateaued finish over 50%
  2. A finish free from cut, torn and folded metal and...

If You Want:

  1. Lowered oil consumption
  2. Less blow-by
  3. Less Friction...


Then Flex-Hone® It!



The Flex-Hone® Tool produces a controlled surface condition unobtainable by any other method. It involves finish, geometry and metallurgical structure. A high percentage plateau free of cut, torn and folded metal is produced. The Flex-Hone® is a resilient, flexible honing tool with a soft cutting action. The abrasive globules each have independent suspension that assures the Flex-Hone® to be self-centering, self-aligning to the bore, and self-compensating for wear.

Flex-Hones® are sometimes called or referred to as Ball-Hones. Dingleberry Hones dingleberry hone, grape hone, bead hone, bottle brush hone, glaze buster/breaker hone, or flexible hone





FLEX-HONE® TOOLS Product Line



...

Flex-Hone® for Rotors

Disc rotor finishing tool.

...

Miniature Flex-Hone®

4mm (.157"), 4.5mm (.177"), 4.75mm (3/16")

...

Brake Cylinder, Hydraulic, Valve Guide Flex-Hone®

Sizes from (.197") to 3", 5mm to 76mm

...

Disc Brake Flex-Hone®

Sizes from 1 ½" to 3 1/8" , 38mm to 79mm

...

Block Cylinder or Liner Flex-Hone®

Sizes from 3" to 8" , 76mm to 203mm

...

Heavy Duty Flex-Hone®

Sizes from 8 ½" to 36", 203mm to 914mm , shafts sold separately.

...

Specialty Flex-Hone® Tools

Shotgun, Paintball Gun, Handgun

...

Diamond Flex-Hone® Tools

for finishing carbide, ceramic and hardened tool steel

...

Flex-Hone® Accessories

Flex-Hone Oil, Cylinder Washing Brush, Pipe Nipple Adaptors, Flex-Shaft



General Application and Selection of the Flex-Hone® Tool, flexible honing tools

Flex-Hone ® prices list

May 2022, updated September 2020, May 2019, October 2018,June 2016,Sept 2013, July 2010, September 2009, June 2009, April 2009, Aug 2007 March 2006

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
