PI TAPE® O-Ring Tapes

O-RING TAPE for PRECISION INSIDE DIAMETER MEASUREMENTS

QUICK and ACCURATE measurement

Commonly called our O-ring tape, this tape is an excellent precision tool for the measurement of Inside Diameters, including O-rings and other soft-walled parts.

Inch| Metric

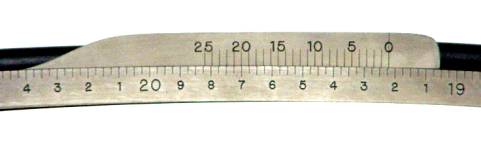

o-ring tape






Inch sizes

  • Tape resolution ±.001”.
  • Accuracy ±.003” on standard range tapes up to 144”.
  • These precision tapes are made of .010” Clock Spring Steel.
  • Standard width is 3/8” x 3/4”.
  • Certificate of accuracy traceable to NIST is furnished



 Model Range
 ORT2-12 2 to 12" Diameter Tape
ORT2-24 2 to 24" Diameter Tape
 ORT12-24 12 to 24" Diameter Tape
ORT12-36 12 to 36" Diameter Tape
ORT24-36 24" to 36" Diameter Tape
 ORT24-48 24 to 48" Diameter Tape
ORT36-48 36 to 48" Diameter Tape
ORT48-60 48 to 60" Diameter Tape
ORT60-72 60 to 72"Diameter Tape
ORT72-84 72 to 84" Diameter Tape





Metric sizes

  • Tape resolution ±.03 mm
  • Accuracy ±.09 mm on standard range tapes up to 3600 mm.
  • These precision tapes are made of .25 mm (.010”) Clock Spring Steel.
  • Standard width is 9.53mm x 19.05mm (3/8” x 3/4”).
  • Certificate of accuracy traceable to NIST is furnished
Model Range
ORTM100-300 100-300mm Diameter Tape
ORTM50-600 50-600mm Diameter Tape
OTRM300-600 300-600 mm Diameter Tape
ORTM300-900 300-900mm Diameter Tape
ORTM600-900 600-900mm Diameter Tape
ORTM600-1200 600-1200mm Diameter Tape
ORTM900-1200 900-1200mm Diameter Tape
ORTM1200-1500 1200-1500mm Diameter Tape
ORTM1500-1800 1500 - 1800mm Diameter Tape
ORTM1800-2100 1800-2100mm Diameter Tape
Larger sizes available upon request.

Larger sizes available upon request.
