Quick Release Pin with Tee Handle

Quick Release Pin with Button Handle - single acting - according to NASM / MS 17984

single acting - according to NASM / MS 17985

EH 4211

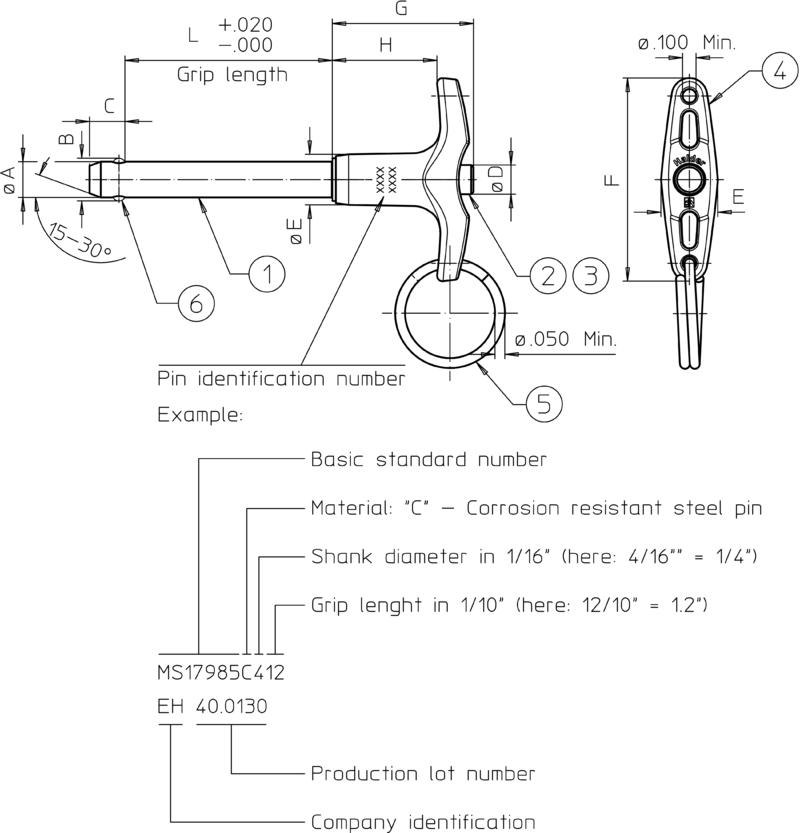

Quick Release Pin with Tee Handle - single acting - according to NASM / MS 17985_Drawings

Ball positions may be different than shown in the drawing (rotation may be possible).

Quick Release Pins according to NASM (former norm: MS) are used for quick fastening, locking, adjusting, changing and securing. Quickly and easily unlockable for frequently repeated connections.

Quick Release Pins (Single Acting Ball Lock Pins / Ball Lock Pins) are produced according to Aviation Norm NASM (former norm: MS) and tested to NAS 1332.

Quick Release Pins according to NASM (former norm: MS) are used for quick fastening, locking, adjusting, changing and securing. Quickly and easily unlockable for frequently repeated connections. Quick Release Pins (Single Acting Ball Lock Pins / Ball Lock Pins) are produced according to Aviation Norm NASM (former norm: MS) and tested to NAS 1332.

Material

Pin ①

  • Stainless steel, precipitation-hardened, passivated

Press bolt ②

  • Stainless steel, precipitation-hardened, passivated

Spring ③

  • Stainless steel, precipitation-hardened, passivated

Handle ④

  • Aluminum, black anodized

Attaching ring ⑤

  • Stainless steel, passivated

Ball ⑥

  • Stainless steel, precipitation-hardened, passivated

Operation

The balls are unlocked by pressing the knob.

Notes

All further dimensions are available on request.

Special types on request.

Data sheet EH 4211. Quick Release Pin with Tee  Handle – single acting - according to NASM / MS 17985

...
