Order on Line  add to cart

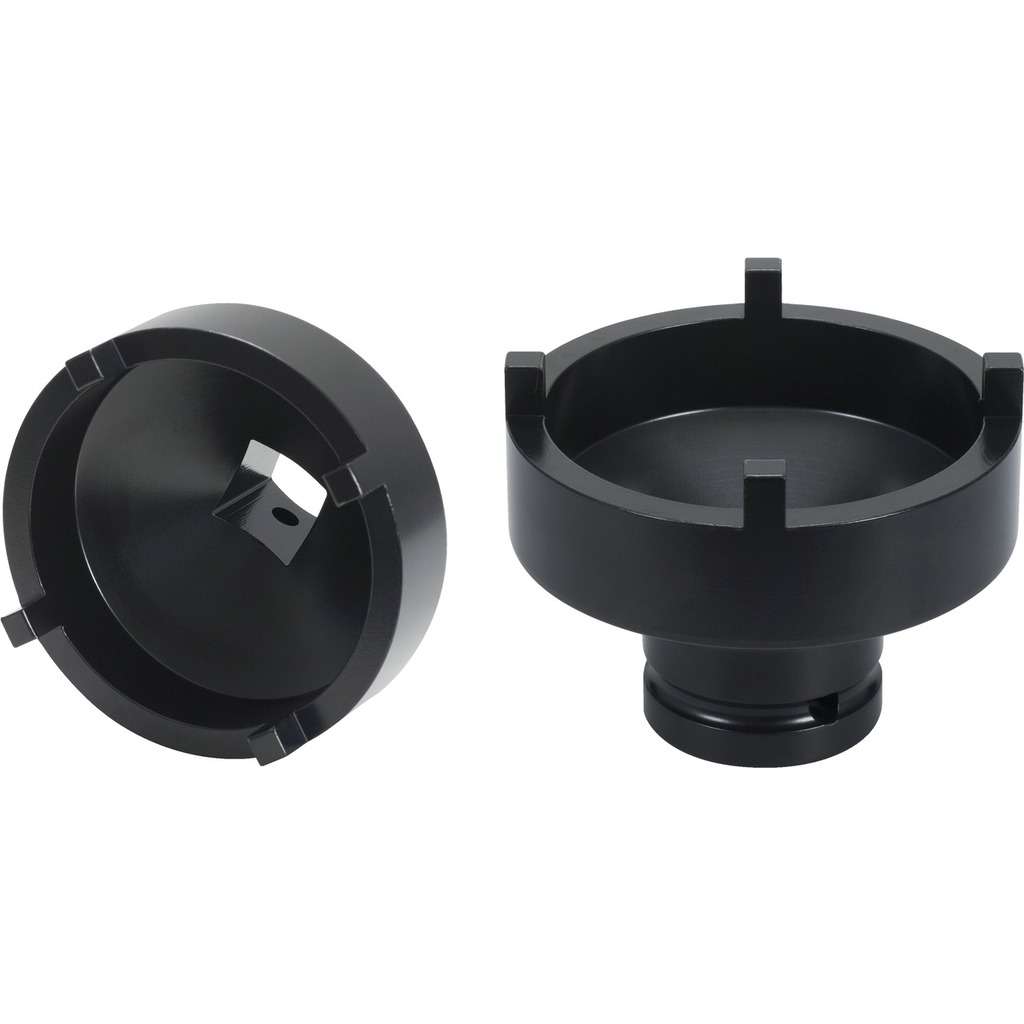

Bearing Locknut Sockets with external spigot

Bearing locknut sockets external spigot

Description

  • for loosening and tightening groove nuts DIN 981 on crimping or clamping sleeves
  • minimum space on nut size
  • slim design
  • suitable for exact torque possible
  • pin + rubber rings for safe holding
  • working range KM4 to KM12 (nuts of ball bearing)

Application range: Removal and installation of bearings, gear wheels, cone roll bearings, ball bearings etc.
Trucks, land and construction machines, municipally and forestery technology etc.

Properties

Material1: special tool steel
Norm: IN 981
Packaging contents: 1
Number of studs: 4



Article No. Description Square drive imperial For nuts Outside diameter D1 in mm Weight [g] Height H Internal diameter D2 in mm Stud width B in mm
SOC-KM4x1/2EXT 1/2" KM Locknut Socket KM4, external spigot 1/2 KM4 37.3 207 60 28.5 4
SOC-KM5x1/2EXT  1/2" KM Locknut Socket KM5, external spigot 1/2 KM5 44.3 259 60 34.5 5
SOC-KM6x1/2EXT  1/2" KM Locknut Socket KM6, external spigot 1/2 KM6 52.3 321 60 41.5 5
SOC-KM7x1/2EXT  1/2" KM Locknut Socket KM7, external spigot 1/2 KM7 59.3 350 60 48.5 5
SOC-KM8x1/2EXT  1/2" KM Locknut Socket KM8, external spigot 1/2 KM8 65.5 422 60 53.5 6
SOC-KM9x3/4EXT 3/4" KM Locknut Socket KM9, external spigot 3/4 KM9 73.5 601 68 60.5 6
SOC-KM10x3/4EXT 3/4" KM Locknut Socket KM10, external spigot 3/4 KM10 78.5 625 68 65.5 6
SOC-KM11x3/4EXT 3/4" KM Locknut Socket KM11, external spigot 3/4 KM11 82.5 664 68 70.0 7
SOC-KM12x3/4EXT 3/4" KM Locknut Socket KM12, external spigot 3/4 KM12 87.5 691 68 74.5 7

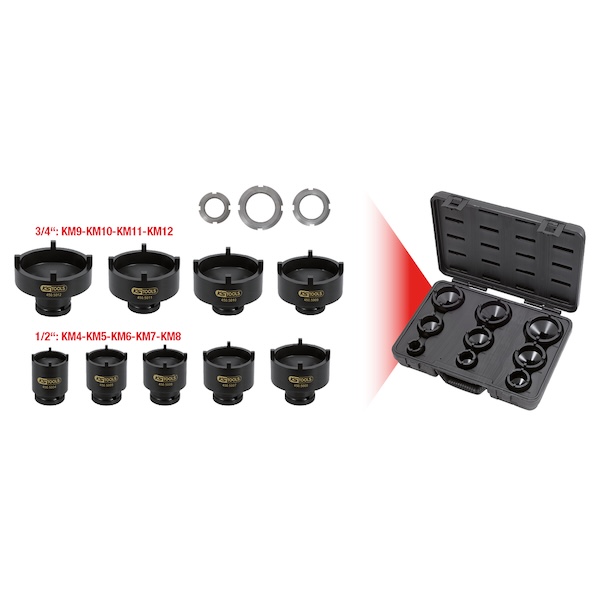

KM Locknut Socket Set , external spigot

Article No. Article
Soc-KM-SET9-EXT Socket set for KM groove nuts, studs exterior, 9 pcs
