Hufnagel Parting Off Tools and Boring Tools

Parting Off Tools         Boring Tools




Parting Off Tool Holder and Blades

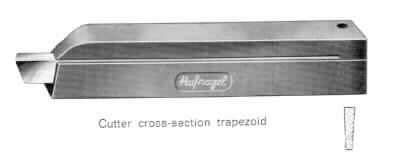

D Parting off tool

Type D Features

  • Trapezoid parting-off cutters are relief ground in longitudinal directions.

  • The tapering of the cutting edge prevents any seizure in the workpiece

  • Used for all plunge-cutting or recessing and parting-off work.



Da Parting off tool

Type Da Features

  • Double-conical ground blades

  • Tapered towards the back

  • Cutting height of blade adjustable by repositioning of blade in holder.




Cut off Holders and Blades (all dimensions in mm)
Part No. Blade Size
height x width x length
Holder Size
height x width x length
        Part No. Blade Size
height x width x length
Holder Size
height x width x length
HUF.D1 8x2/1.5x75 20x12x75         HUF.DA-1 8x2/1.5x80 17x12x125
HUF.D2 10x2.5/1.8x100 26x14x100         HUF.DA-2 10x2.5/1.8x100 22x15x140
HUF.D3 15x4/3x150 32x16x150         HUF.DA-3 15x3.5/2.5x125 30x17x160
HUF.D4 18x5/3.8x160 40x20x160         HUF.DA-4 19x4.5/3.5x150 35x20x180
HUF.D5 21x5/3.8x200 44x26x200         HUF.DA-5 24x5.5/4x175 42x25x220





Boring Tools

Features

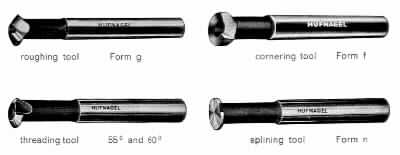

BN Boring Tool
  • Perfect cutting performance on account of preshaped forms

  • Profiles for roughing, cornering, threading or grooving

  • Easy regrinding just grind face of cutting edge

  • Form relief ground.

  • One piece construction

Boring Tools Standard Type BN (all dimensions in mm)
Part No. Overall Length Shank Length Shank Diameter forms G&F
min. hole
forms N, 55° and 60°
min. hole
recessing width form N
tol. +0.2mm
HUF.BN3 50 25 8 3
HUF.BN5 60 35 8 5 5 1.1
HUF.BN5/10 60 35 10 5 5 1.1
HUF.BN7 65 35 8 7 7 1.5
HUF.BN8/10 65 35 10 8 8 1.5
HUF.BN10 65 45 8 10 10 2.0
HUF.BN10/10 65 32 10 10 10 2.0
HUF.BN13 75 52 10 13 13 2.5
HUF.BN16 100 78 10 16 16 3.0








Features

  • Perfect cutting performance on account of preshaped forms

  • Profiles for roughing, cornering, threading or grooving

  • Easy regrinding just grind face of cutting edge

  • Form relief ground.

  • One piece construction

Boring Tools Long Type BL (all dimensions in mm)
Part No. Overall Length Shank Length Shank Diameter forms
G& D
min. hole
forms
N, 55° and 60°
min. hole
recessing width
form N
tol. +0.2mm
HUF.BL3 100 70 10 3
HUF.BL5 125 80 10 6 6 1.0
HUF.BL9 125 75 10 9 9 2.0
HUF.BL12 125 85 10 12 12 2.5
HUF.BL15 125 100 10 15 15 3.0





Features

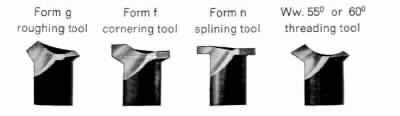

BK boring Forms
  • Perfect cutting performance on account of preshaped forms

  • Profiles for roughing, cornering, threading or grooving

  • Easy regrinding just grind face of cutting edge

  • Form relief ground.

  • Two piece construction

Boring Tools with screw-on Profiled Boring Heads (all dimensions in mm)
Part No. Length of boring bar Shank Diameter Inside thread of boring head forms g,f, 55°, and 60°
min. hole
forms n,
min. hole
recessing width form n
tol. +0.2mm
recommended Prism P
HUF.BK15 200 10 M6 15 18 2 P10
HUF.BK18 220 13 M8 18 22 2 P13
HUF.BK22 250 15 M10x1.25 22 25 3 P15
HUF.BK25 270 20 M12x1.25 25 28 3 P20
HUF.BK28 280 20 M14x1.25 28 31 4 P20
HUF.BK30 300 20 M15x1.25 30 33 4 P20
HUF.BK32 350 20 M15x1.25 32 35 4 P20
HUF.BK35 370 28 M18x1.25 35 39 5 P28
HUF.BK44 500 28 R 1/2" 44 48 5 P28

Boring Bar





P Prisms

Prisms for Boring Bars



Prisms P to match boring bars (all dimensions in mm)
Part No. Diameter of
Boring bar
Length of Prism Cross-section
height x width
for Boring Bars
HUF.P10 10 110 24x18 BK15
HUF.P12 12 110 24x20 H73-12, H74-12
HUF.P13 13 130 28x24 BK18
HUF.P15 15 130 31x28 BK22, H73-15, H74-15
HUF.P20 20 150 37x32 BK25, BK28, BK30, BK32, H73-20,H74-20
HUF.P28 28 180 53x50 BK35, BK44, H73-28, H74-28
HUF.P40 * 40 200 30x70 H73-40, H74-40
HUF.P50 * 50 200 40x80 H73-50, H74-50
HUF.P60 * 60 250 40x100 H73-60, H74-60

* single piece prism.
