HYLOMAR® AEROGRADE PL32

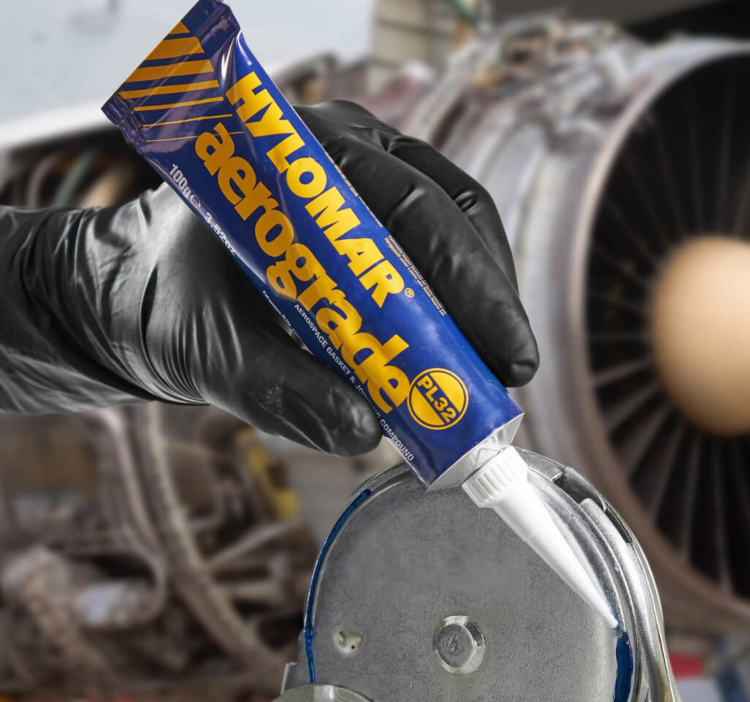

PL32 m tube

HYLOMAR® AEROGRADE PL32

NON-SETTING GASKET & JOINTING COMPOUND CARRYING ROLLS-ROYCE APPROVAL AND NATO STOCK NUMBER

Hylomar Aerograde is a highly engineered, non-setting and non-hardening gasketing compound for use in the aeronautical industry with a wide operating temperature of -50°C to +250°C. Hylomar Aerograde was developed in conjunction with Rolls Royce – Aerospace Division for sealing joints in turbine engines.

Hylomar Aerograde is resistant to:

  • Air, water and oils
  • Turbine and piston engine combustion products
  • Water/glycol and methanol/water mixtures
  • Petroleum and synthetic diester lubricating oils
EMBED IFRAME HERE (INSIDE THE ELEMENT I FRAME )

FEATURES

  • Non-hardening and non-setting
  • Resistant to air, water and oils
  • Specified worldwide by OEM’s
  • Wide operating temperatures (- 50°C to +250°C)
  • Easy to use
  • Unlimited assembly time
  • Easy to disassemble components
  • For use on metal and plastic close fitting components
  • Use as a non-curing thread sealant
  • Resists vibration
  • Easy to apply to vertical and underside joints due to its thixotropic properties
  • Can be used with or without a gasket

PRODUCT SIZES

Pack size – 100g tube

Hylomar Aerograde PL32 is manufactured under licence from Rolls-Royce PLC to their specification MSRR 9055.

There are 3 grades of Hylomar Aerograde PL32 – Light, Medium and Heavy.

OMAT numbers:
Light – 4/46
Medium – 4/47
Heavy – 4/48

TYPICAL PHYSICAL PROPERTIES

Light Grade
Film Thickness 0.015 mm
Typical Surface Finish 2.0 μm Ra
Area covered by 100g 1.875m²
Product coverage after drying 2mg/cm²
MEDIUM GRADE
Film Thickness 0.03 mm
Typical Surface Finish 3.0 μm Ra
Area covered by 100g 1.125m²
Product coverage after drying 4mg/cm²
HEAVY GRADE
Film Thickness 0.09 mm
Typical Surface Finish 3.5 μm Ra
Area covered by 100g 0.56m²
Product coverage after drying 12mg/cm²






Trademarks are the properties of their respective owner(s).

May 2022

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
