Order on Line  add to cart

Imperial 45° Rol-Air® Flaring Tools

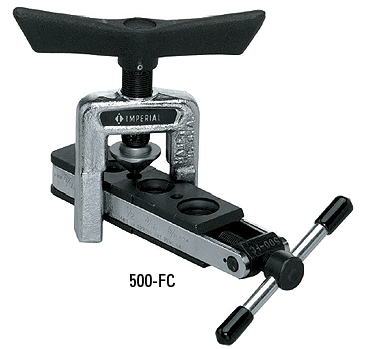

45° ROL-AIR FLARING TOOL
Flares and burnishes 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8" O.D. tubing.

IMP.500-FC

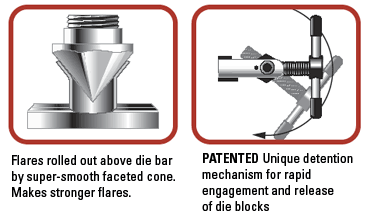

Faceted, hardened steel, chrome-finished cone rolls out perfect 45° flares above die block, and automatically burnishes flare face reducing the need for deburring. Original wall thickness is maintained at base of flare. New slip-on yoke permits use in tight quarters, where there is little space between nut and tube end. Larger handle, with better leverage, and precision threads on feed screw make flaring effortless. Heat treated dies grip tubing without scoring. Satin chrome and black finish. Wt. 1.5 lbs.



Download the Tubing Tool Selector
Reference Guide 01 (PDF)

METRIC SIZE 45° ROL-AIR FLARING TOOL

IMP.500-FCM
Same as 500-FC except for metric size tubing 6 mm, 8 mm, 10 mm, 12 mm, 15 mm and 16 mm O.D.

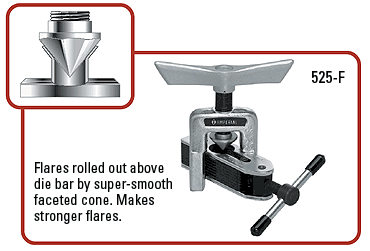

“GRABBER”® ROL-AIR 45° FLARING TOOL
Universal application. Adjustable opening holds all sizes. Flares and burnishes 3/16" to 5/8" (4.75 to 16 mm) O.D. tubing.

IMP.525-F

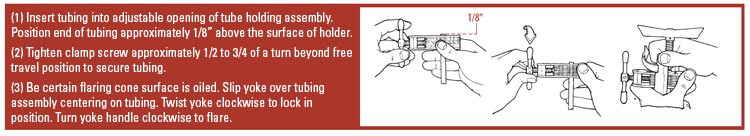

Unique, self-adjusting, tube holding mechanism permits
flaring any size tubing within the range of 3/16" to 5/8" (4.75
to 16 mm) O.D. tubing. Innovative, single opening design
is more compact and easier to use than conventional multi
opening flaring bars. Faceted, hardened steel, chrome-finished
cone rolls out and burnishes perfect 45° flare above the tube holding mechanism reducing need for deburring. Original wall thickness is maintained at base of flare. Slip-on self-centering
yoke permits use in tight quarters. Large handle, with better
leverage, and precision threads on feed screw make flaring effortless. High quality construction with satin chrome and
black finish. Wt. 1.75 lbs.

HI-DUTY® FLARING TOOL
For 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8" O.D. tubing.

IMP.300-FB
Hardened steel, chrome finished cone makes
exceptionally smooth, high strength flares with a radius
at base of flare – instead of the sharp angle formed by
ordinary tools. New slip-on yoke permits use in tight
quarters, allows flaring where there is little space
between nut and tube end. New feed screw design
provides smoother, easier operation. Positive gripping
and self-gauging of tube for exact flare size. Sliding die
blocks lock in place by lever clamp action to ensure
even dispersal of force around full diameter of tube
for superior grip. Wt. 1.6 lbs.

link to Imperial Tools index page


February 2022, February 2020 , updated November 2009 CSS, July 2009,October 2005

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
