FLARING AND SWAGING TOOLS

275-fs

FLARING (45°) & SWAGING TOOL
For 1/8" to 3/4" and 4 mm to 22 mm O.D. tubing.

IMP.275-FS
Flares and swages. Converts quickly. Screw-type feed. Ideal for use in close quarters. Two bars included cover 9 sizes. Swivel-type swaging adapters and flaring cone are hardened steel chrome-finished for easy operation. Self-centering, slip-on forged steel yoke. In tool case. Wt. 3.5 Ibs.

Flares 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8" and 3/4" O.D.

Includes 5 swage adapters that swage 7 tube sizes 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" O.D.



Replacement parts: IMP.278-FS-03X04X06 Adapter
                                  3/16", 1/4", 3/8".

IMP.278-FS-05 Adapter 5/16".

IMP.278-FS-08 Adapter 1/2".

IMP.278-FS-10 Adapter 5/8".

IMP.278-FS-12 Adapter 3/4".

IMP.S38600 Flaring Cone.

IMP.275-FSM Metric flaring and swaging tool. Same as
275-FS except for metric size tubing 4 mm, 6 mm,
8 mm, 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm,
22 mm O.D. tubing. In tool case. Wt. 3.5 lbs.

275-fs flaring and swaging tools
Replacement parts: IMP.278-FSM4-6-10 Adapter
                                  4 mm, 6 mm, 10 mm.

IMP.278-FSM-8 Adapter 8 mm.

IMP.278-FSM-12 Adapter 12 mm.

IMP.278-FSM-14 Adapter 14 mm.

IMP.278-FSM-15 Adapter 15 mm.

IMP.278-FSM-16 Adapter 16 mm.

IMP.278-FSM-18 Adapter 18 mm.

IMP.278-FSM-22 Adapter 22 mm.

IMP.S38600 Flaring Cone.

data table

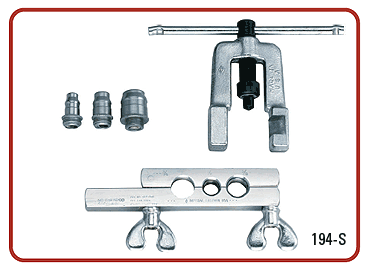

45° SWAGING TOOL

For 1/2", 5/8" and 7/8" O.D. tubing.

IMP.194-S
Screw-type flaring and swaging tool.
Far easier to work with in close quarters than
punch type tools. Perfect swaging alignment
of tube every time. Hardened steel chrome-
finished adapters change quickly. In tool
case. Wt. 2.0 Ibs.

Replacement parts:

IMP.278-FS-08 Adapter 1/2".
IMP.278-FS-10 Adapter 5/8".
IMP.278-FS-14 Adapter 7/8".



Download the Tubing Tool Selector
Reference Guide 01 (PDF)



194 s swaging tools
