Order on Line  add to cart

IMP® MINI TUBE CUTTERS



 IMP.TC-1050RH RATCHETING MINI TUBE CUTTERS

For 1/8" to 5/8" and 4mm to 15mm O.D. tubing.

• Minimal clearance radius of 1-1/4".
• Easily completes a full revolution, maximizing leverage.
• TC-1050RH cutter can easily be removed from the handle.
Includes (1) S32633 general purpose cutter wheel

• Ergonomic handle with non-slip grip.
• 100% factory tested to ensure accurate spiral-free cutting.
• Six independent drive pawls provide 15" arc-swing.
• 5" nominal length.

  tube cutter
 tube cutter

IMP® MINI TUBE CUTTERS
For 1/8" to 5/8" and 3/16" to 7/8" O.D. tubing.


• Big capacity, small size tube cutters designed for use in
  tight quarters where other cutters won't fit.
• Enclosed feed screw minimizes contamination assuring
  continued smooth operation.
• Corrosion resistant stainless steel rollers positioned at
  bottom of cutter allows for easier cutter engagement on
  tubing and smoother cutting action.
• All Imperial tube cutters are 100% factory tested to ensure
  accurate spiral-free cutting.

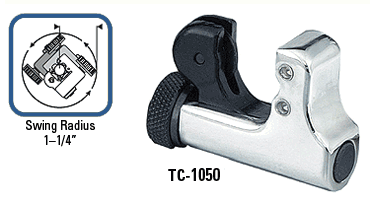

IMP.TC-1050 For 1/8" to 5/8" and 4 mm to 15 mm O.D. tubing. Includes (1) S32633 general-purpose cutter wheel. Swing radius 1-1/4". Length 1-3/4". Wt. 2.5 oz.

IMP.TC-2050 For 3/16" to 7/8" and 5 mm to 22 mm O.D. tubing. Includes (1) S75015 general-purpose cutter wheel. Swing radius 1-11/16". Length 2-1/4". Wt. 4.0 oz.

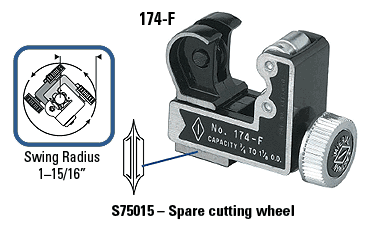

"BIG IMP"® TUBE CUTTER –
"Big capacity in small size"
For 3/8" to 1-1/8" (10 mm to 28 mm) O.D. tubing.

IMP.174-F Includes (2) S75015 general-purpose cutter wheels. Swing radius 1-15/16" (2-1/4" swing radius with 1-1/8" tube). Length 2-11/16". Wt. 5.0 oz.

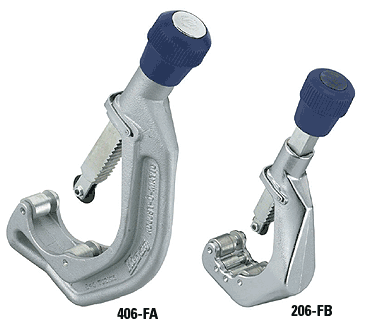

ADJUST-O-MATIC® TUBE CUTTERS
For 3/8" to 2-5/8" and 2" to 4-1/8" O.D. tubing.

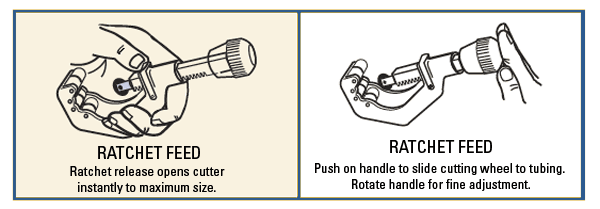

• Ratchet feed mechanism speeds up cutting operation.
• Extra wide rollers with flare cut-off groove stabilize tubing.
• Spare cutting wheel included under handle cap.
• Enclosed screw-type feed mechanism; light weight
  aluminum alloy body.

IMP.206-FB For 3/8" to 2-5/8" and 10 mm to 66 mm O.D. tubing. Includes (2) S74761 general-purpose cutter wheels. Length closed 7-3/4". Wt. 2.0 lbs.

IMP.206-FBP Cuts schedule 40 PVC pipe up to 2". Includes one cutter wheel for PVC S10000770 and one general-purpose cutter wheel S74761.

IMP.406-FA For 2" to 4-1/8" and 51 mm to 104 mm O.D. tubing. Includes (2) S74833 general-purpose cutter wheels. Length closed 11-1/4". Wt. 3.5 lbs.

Conforms to Federal Specification GGG-C-771d,
Type II, Class I.

 tube cutter

 tube cutter



 tube cutter

Download the Tubing Tool Selector
Reference Guide 01 (PDF)

 tube cutter

 tube cutter

Imperial Tools index page

August 2024, updated February 2022, updated June 2016, November 2009 CSS, July 2009, October 2005

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
