Kafer Thickness Gages

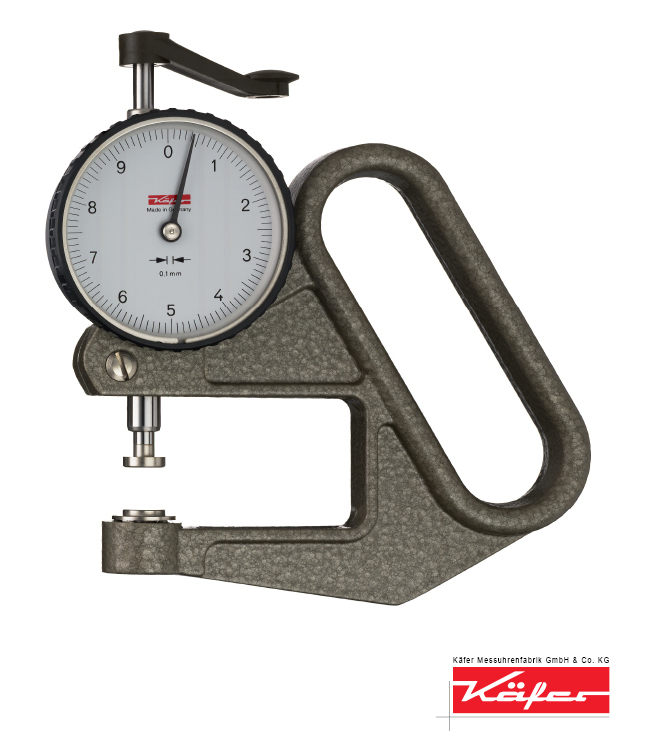

Kafer Dial Indicator Thickness Gage

Kafer Thickness Gages

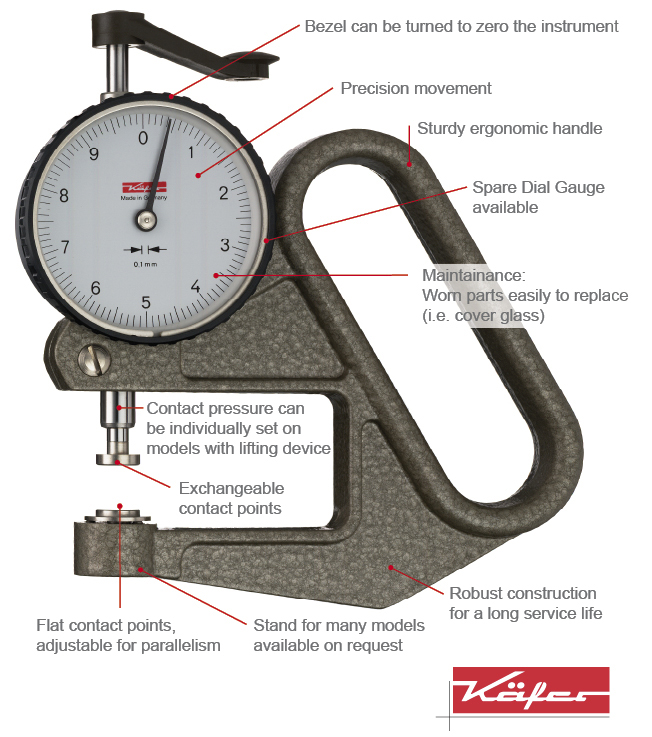

Dial Thickness Gauges are used for measuring the thickness of a very wide range of materials such as leather, paperboard, paper, felt, rubber, glass, sheet, metal, films, plywood and plastics.

The shape of the feelers should be adapted to the material being measured.

Metric | Inch | Feelers





Specifications of the Technical data for Metric Dial Thickness Gauge

Type Reading Range Bezel dia. Special Features
F 50 0.001 mm 5 mm 50
F 50 R 0.001 mm 5 mm 50
F 50 R 0.001 mm 5 mm 50
J 100  0.01 mm 10 mm 100 with lifting device
J 100 R  0.01 mm 10 mm 100 without side discs / with lifting device
J 100/30 0.01 mm 30 mm 100 with lifting device
J 12  0.01 mm 8 mm 12
J 15  0.01 mm 10 mm 18
J 200  0.01 mm 10 mm 200 with lifting device
J 200/30  0.01 mm 30 mm 200
J 300  0.01 mm 10 mm 300
J 300/30 0.01 mm 30 mm 300
J 400  0.01 mm 10 mm 400
J 400/30 0.01 mm 30 mm 400
J 45  0.01 mm 10 mm 45
J 50  0.01 mm 10 mm 50
J 50  0.01 mm 10 mm 50 with lifting device
J 50 R  0.01 mm 5 mm 50 with side discs / with lifting device
J 50 R 0.01 mm 5 mm 50 without side discs / with lifting device
J 50 W  0.01 mm 10 mm 50 with lifting device
J 50/3 WP  0.01 mm 20 mm 50 Corrugation Dial Thickness Gauge to EN 494 / with lifting device
J 50/30  0.01 mm 30 mm 50
J 50/30 0.01 mm 30 mm 50 with lifting device
J 50/30 R 0.01 mm 18 mm 50 without side discs / with lifting device
K 100  0.1 mm 30 mm 100
K 15  0.1 mm 10 mm 15
K 15/2 0.1 mm 20 mm 15
K 200  0.1 mm 30 mm 200 with lifting device
K 300  0.1 mm 30 mm 300 with lifting device
K 300/50 0.1 mm 50 mm 300
K 400  0.1 mm 30 mm 400 with lifting device
K 50  0.1 mm 10 mm 50
K 50  0.1 mm 10 mm 50 with lifting device
K 50/2  0.1 mm 20 mm 50
K 50/3  0.1 mm 30 mm 50
K 50/5  0.1 mm 50 mm 50
F 1000/30  0.001 mm 1 mm 30 Foil Thicknessgauge with lifting device
F 1101/30  0.001 mm 1 mm 30 Foil Thicknessgauge with lifting device / Movement of Comparator Gauge
F 1101/30-0.1  0.001 mm 0.1 mm 30 Foil Thicknessgauge with lifting device / Movement of Comparator Gauge
Vliesdicken-messgerätDIN EN ISO 5084 0.01 mm 28 mm 200
Vliesdicken-messgerätDIN EN ISO 9073/2 0.01 mm 28 mm 200





Specifications of the Technical data for Inch Dial Thickness Gauge

Type Reading Range Bezel dia. Special Features
KZ 50/3  0.01 inch 1.200 inch 2.000 inch
KZ 50/2  0.01 inch 0.800 inch 2.000 inch
KZ 400  0.01 inch 1.200 inch 16.000 inch with lifting device
KZ 300 0.01 inch 1.200 inch 12.000 inch with lifting device
KZ 200  0.01 inch 1.200 inch 8.000 inch with lifting device
KZ 15/2  0.01 inch 0.800 inch 0.600 inch
KZ 15  0.005 inch 0.400 inch 0.600 inch
KZ 100  0.01 inch 1.200 inch 4.000 inch with lifting device
JZ 50 R  0.001 inch 0.200 inch 2.000 inch without side discs / with lifting device
JZ 50  0.001 inch 0.400 inch 2.000 inch with lifting device
JZ 50 0.001 inch 0.400 inch 2.000 inch with lifting device
JZ 45  0.001 inch 0.400 inch 1.800 inch
JZ 400  0.001 inch 0.400 inch 16.000 inch with lifting device
JZ 300  0.001 inch 0.400 inch 12.000 inch with lifting device
JZ 200  0.001 inch 0.400 inch 8.000 inch with lifting device
JZ 15  0.001 inch 0.400 inch 0.700 inch
JZ 12  0.001 inch 0.300 inch 0.500 inch
JZ 100  0.001 inch 0.400 inch 4.000 inch with lifting device
FZ 50 0.0001 inch 0.200 inch 2.000 inch with lifting device
Folien FZ 1101/30 0.00005 inch 0.040 inch 1.200 inch precision work movement / with lifting device
Folien FZ 1000/30 0.0001 inch 0.040 inch 1.200 inch with lifting device





Feelers
