Type LB2 - Lindibolt® 2


Type LB2 - Lindibolt® 2

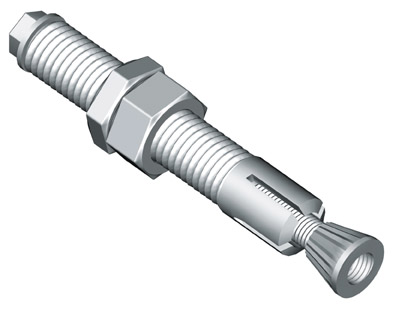

The Lindibolt® 2 is a self heading bolt suitable for making connections to cavity steel structures
in similar applications to the Hollo-Bolt® but where the specific nature of the application precludes
the Hollo-Bolt®’s use. For example where there is limitation on the size of hole which can be
drilled (the Lindibolt® requires a smaller hole than the Hollo-Bolt®) or where a wider fixing thickness
is required.

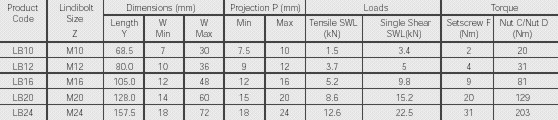

Note 1: Tensile loads shown are based on tests carried out in BS EN 10025:1993 Grade S275JR
plate and have a Factor of Safety of 5 (on pullout).

Note 2: Single Shear loads are based on tests carried out in BS EN 10025:1993 Grade S275JR
plate and have a Factor of Safety of 5 on shearing of the Lindibolt®, providing that the plates have
a higher bearing value.

Material
Bright Mild Steel Bar to BS 10087:1999 (also available in Stainless Steel)

Finish
Electro Zinc Plated to BS EN 12329: 2000 Grade Fe//Zn//A (Clear)



Installing the Lindibolt®  2

There are 6 steps to installing the Lindibolt®, detailed below. These guidelines refer to the
diagram at the top of the page and the loads and dimensions table above.

Step 1. Drill clearance hole (Z + 1mm) through connection plates.

Step 2.
Measure the total thickness of the plates to be connected (X) and set the Nut (C)
at the distance of (X + Projection P). Tighten Locknut (D).

Step 3. Insert the Lindibolt® through the pre-drilled holes, cone end first.

Step 4. Using a spanner to hold Nut (C), to prevent rotation, tighten Setscrew (F) to correct
torque. The cone (A) will be drawn up inside the Lindibolt® Body.

Step 5. Loosen off Locknut (D) and tighten Nut (C) to recommended torque to secure the
plates.

Step 6. Secure by tightening Locknut (D) to recommended torque.

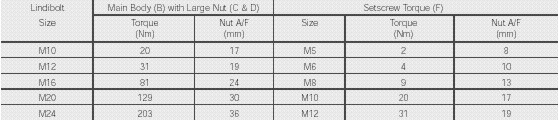

Torque and Spanner Sizes
