Lowell Ratchet Clutches, Roller Clutches, and Observation Windows

download LOWELL 2018 catalogue (14.5 Mb)

Ratchet Clutches | Roller Clutches | Observation Windows

ratchet clutches

Ratchet Clutches

Lowell ratchet clutches are designed from standard bodies, gears, pawls, and springs. Forces are applied in an optimum between the solid steei gear and hefty pawl so that loads are in compression rather than in standard shear. Gears are a low carbon steel. Rugged tooth design has large contact area with pawl.

Mounting holes provided in body
Keyways are per ASA B 17.1
Lubrication is recommended after every 1200 hours of operation
Specials may be ordered with size, shape, and tooth arrangements of your choice
Body sizes from 2-7/8 x 2-3/8 to 10-7/8 x 8-3/8
Gear opening sizes 3/8 to 4-5/8 inches, 10 - 120 mm
Free running neutral available on reques

Roller Clutches

For applications demanding precise motion control

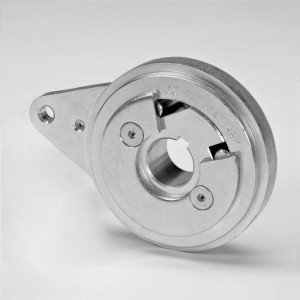

Ratchet Arm Assembly

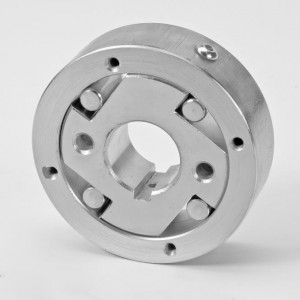

Cam Ring Assembly

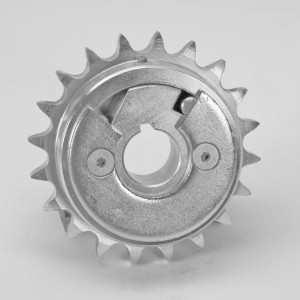

One Way Sprocket Clutch

The simple construction of the Roller Clutch results in an easy-to-produce one-way clutch device that saves money for the user or OEM. Overrunning clutches are also known as free-wheeling or one-way clutches. In these roller-ramp clutches, engagement occurs with a wedging of the rollers between the inner cam and the outer housing. Torque capacity is nomially limited only by the contact stresses between the parts. Standard keyways are per ASA B17. 1.

Contact us for sizes and specifications

Lowell Product Picture

Observation Windows

For Trouble-Free Visual Inspection

Solid, shock-resistant transparent acrylic
Withstands temperatures up to 220° F and internal pressures up to 8.8 psi or higher with optional guard ring
Removable film protects polished face from damage during delivery and assembly
White reflectors are furnished with all windows up to 8-inch diameter (removable if not desired)
Flat or Curved styles
Sizes from 7/8 to 11-7/8 inch diameter

link to Lowell Index page

February 2022, updated March 2017, October 2009, June 1999

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
