SureTork® "Bolt Thru " Torque Wrench

suretork bolt thru rtorque wrench

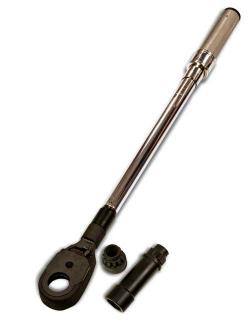

SureTork® "Bolt Thru" Torque Wrench

Lowell Model 50ST

Click Type, Field Adjustable

  • Unique “Bolt-Thru” head allows use on any length bolt or all-thread rod

  • Heavy duty reversible ratchet head

  • Quick Release socket engagement for fast socket changes

  • Standard hex and square sockets from 5/8 inch to 1-1/4 inch

  • Extended reach hex sockets from 7/8 inch to 1-1/4 inch

  • Torque handle “clicks” when set torque is reached

  • Torque setting is field adjustable from 30 to 150 foot-pounds in one foot-pound increments

  • Helps meet manufacturers installation and warranty requirements

Also Available in sets with

standard or extended reach sockets

  • Set 516 - includes one SureTork® wrench and six standard "bolt-thru" hex sockets

  • Set 516X - includes one SureTork® wrench and five extended reach "bolt-thru" hex sockets





516 SureTork® Standard Socket Set

suretork 516 SureTork set

Standard Reach Sockets Set

Model 50ST SureTork® torque wrench, 3/4”, 7/8”, 15/16”, 1-1/16”, 1-1/8” and 1-1/4” hex sockets in a heavy duty metal case.

The SureTork® is a ratcheting, quick release, field adjustable, click-type torque handle that ensures nuts are properly tightened during equipment installation and repair.

The “Bolt-Thru” sockets allow access to nuts on any length bolt or threaded rod.

Components
• 50ST handle 23-25810-9900
• 3/4” hex socket 21-94712-0000
• 7/8” hex socket 21-94714-0000
• 15/16” hex socket 21-94715-0000
• 1-1/16” hex socket 21-94717-0000
• 1-1/8” hex socket 21-94718-0000
• 1-1/4” hex socket 21-94720-0000
• Steel box 21-36906-0000

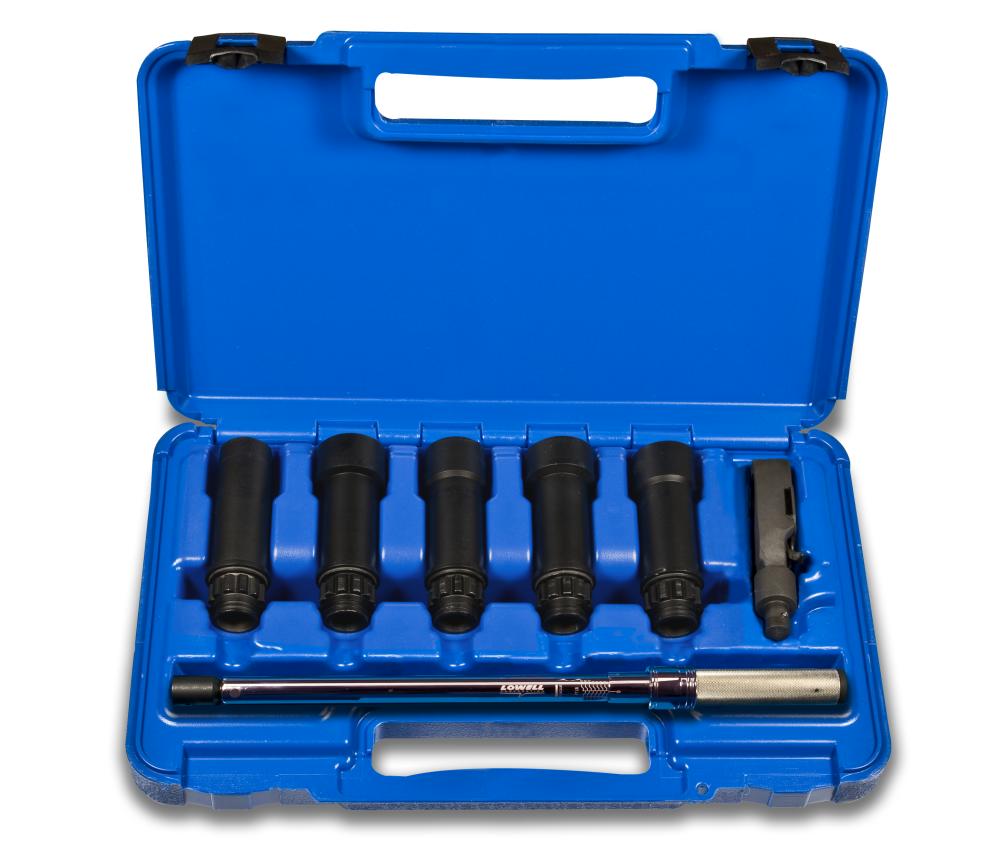

516X SureTork® Extended Reach Socket Set



suretork 516X SureTork set

516X SureTork® Extended Reach Socket Set

Extended reach hex sockets from 7/8 inch to 1-1/4 inch for extra knuckle clearance

Model 50ST SureTork® torque wrench, 7/8”, 15/16”, 1-1/16”, 1-1/8” and 1-1/4” extended reach hex sockets in a molded plastic case.

The SureTork® is a ratcheting, quick release, field adjustable, click-type torque handle that ensures nuts are properly tightened during equipment installation and repair.

The “Bolt-Thru” extended reach sockets allow access to nuts on any length threaded rod with plenty of “knuckle” clearance.

Components
• 50ST handle 23-25810-9900
• 7/8” extended hex socket 23-09904-9901
• 15/16” extended hex socket 23-09904-9902
• 1-1/16” extended hex socket 23-09904-9903
• 1-1/8” extended hex socket 23-09904-9904
• 1-1/4” extended hex socket 23-09904-9905
• Plastic box 23-09904-9906






link to Lowell index page



February 2022, updated March 2017, April 2011

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
