Rotary Magnetic Chucks

High Power Rotary Magnetic Chucks

Rotary chucks operate the same as the rectangular chucks and are of the same construction with poles running off the edge. Top plates on all models are of magnetic steel and nonmagnetic stainless furnace brazed construction. Ideally rotating spindles. To withstand the high torque of used on lathes, grinders and other machinery with heavy lathe cuts, dowel pins or screws may be inserted in the top plate. Chuck top plates may be machined for work with odd configurations or an auxiliary plate may be added and removed for other work, leaving the original plate intact. The ST series is not water-tight and should not be used with coolant. Handles are removable.



HIGH POWER STANDARD POLE

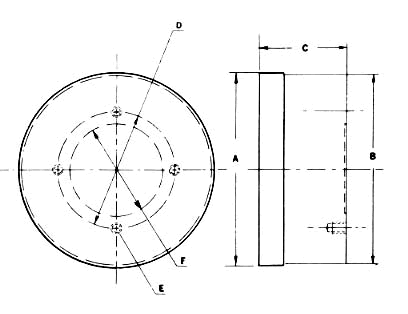

DIMENSIONS - INCHES



CATALOG
NUMBER

A

B

C

D

E

F

NO. OF
HOLES

POLE
SPACING

WEIGHT
LBS

MAG.ST 2-1/2 R

2-5/8

2-9/16

1-7/8

2

1/4-20 x 3/8

1-5/8

2

1/8

1-1/2

MAG.ST 4-1/8 R

4-3/16

4-1/8

2-3/16

3-3/4

1/4-20 x 3/8

3

3

1/4

5

MAG.ST 5-1/4 R

5-3/8

5-1/4

1-15/16

4-3/4

1/4-20 x 3/8

4

4

3/8

7-1/2

MAG.SP 6 R

6-5/16

6-3/16

2-13/16

4-1/2

3/8-16 x 3/8

3-3/4

4

3/8

15

MAG.SP 8 R

8-1/8

8

2-13/16

4-1/2

3/8-16 x 3/8

3-3/4

4

3/8

27

MAG.SP 10 R

10-1/4

10

3-3/4

8

3/8-16 x 5/8

6-3/4

4

3/8

49

MAG.SP 12 R

12-1/8

12

3

8

3/8-16 x 1/2

7

4

3/8

63

MAG.SP 16 R

16-1/8

16

3-1/2

12

3/8-16 x 1/2

8

4

3/8

140

MAG.SP 20 R

20-1/4

20

3-5/8

16

3/8-13 x 1/2

10

4

3/8

205

HIGH POWER FINE POLE

MAG.FP 6 RD

6-5/16

6-3/16

3

4-1/2

3/8-16 x 3/8

3-3/4

4

1/8

16

MAG.FP 8 RD

8-1/8

8

3

4-1/2

3/8-16 x 3/8

3-3/4

4

1/8

25

MAG.FP 10 RD

10-1/4

10

3-3/4

8

3/8-16 x 5/8

6-3/4

4

1/8

49

MAG.FP 12 RD

12-1/8

12

3

8

3/8-16 x 3/8

7

4

1/8

63

PARALLELS & V BLOCKS

PARALLEL BARS

HEIGHT
Inches

WIDTH
Inches

LENGTH
Inches

1/2

1

3

1/2

1

6

1

2

3

1

2

6

1

4

6

1

4

8

V BLOCKS

HEIGHT
Inches

WIDTH
Inches

LENGTH
Inches

1-7/8

3-1/2

3-1/2

2-1/4

6

6

1- FURNACE BRAZED - will not come apart when machined, sawed or formed.
2- LAMINATIONS - 1/16 iron- 1/16 standard stainless steel for high magnetic permeability.
3- HOLD ODD shapes and sizes for grinding inspection.

These accessories increase the versatility of your magnetic chucking equipment. They extend chuck's magnetic holding power above working surface. Auxiliary plates made to match pole dimensions of present chuck with horizontal vertical poles
