Magnetic Sweepers

Magnetic Sweepers

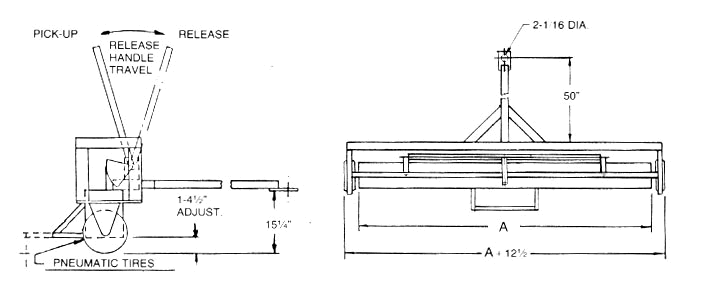

Road Sweepers


The Heavy Duty Road Sweepers contain permanent magnets that will not lose their magnetism. They are used to sweep large areas and can be attached to trucks, fork lifts, automobiles, etc. Maximum sweeping speed is from 5 to 10 MPH. Discharge of tramp metal is accomplished by the hand operating release handle.

MODEL NO.

DWG. NO.

A

TIRE SIZE

WEIGHT

MAG.HDRS-96

3400-82

96

16" Dia.

700#

MAG.HDRS-84

3401-82

84

16" Dia.

625#

MAG.HDRS-72

3402-82

72

16" Dia.

550#

MAG.HDRS-60

3403-82

60

12" Dia.

475#

MAG.HDRS-48

3404-82

48

12" Dia.

400#

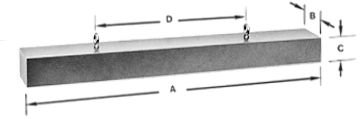

Magnetic Sweeper Plate

Plate type sweeper for parking lots, factory floors, and other large areas. These units can be mounted on a fork lift or truck. They are manually cleaned and have a pickup range from 1 to 4 inches.


DIMENSIONS (INCHES)

MODEL NO.

A+/- 1/4

B+/- 1/4

C+/- 1/4

D+/- 1/8

WGT. (LBS.)

MAG.PM-2-24

24

6-1/2

2-3/4

14

75

MAG.PM-2-36

36

6-1/2

2-3/4

20

110

MAG.PM-2-48

48

6-1/2

2-3/4

30

145

MAG.PM-2-60

60

6-1/2

2-3/4

36

175

MAG.PM-2-72

72

6-1/2

2-3/4

42

217

MAG.PM-2-84

84

6-1/2

2-3/4

48

245

MAG.PM-2-96

96

6-1/2

2-3/4

54

276
