Electromagnets

Small Flat-Faced Electromagnets

Round and Rectangular Flat-Faced Electromagnets are available in a variety of sizes.

Flat-Faced magnets should only be used on flat, smooth material where the entire magnet face is in contact.

Can be used in manually operated or automated applications.

Magnets listed utilize D.C. current. Pounds pull ratings are maximum on low carbon steel at magnetic saturation.

assortment of electro magnets

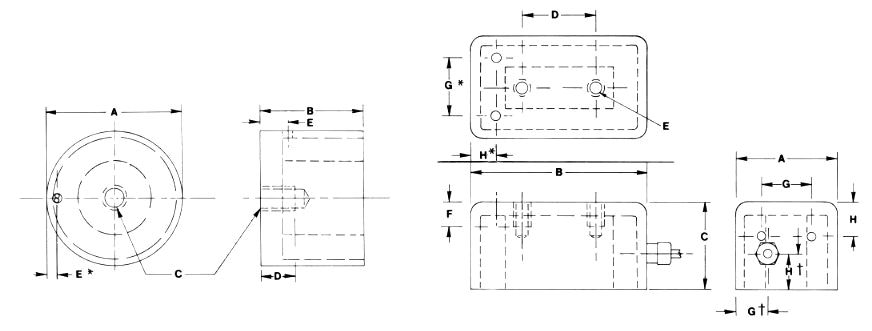

electro magnet dimensions

SMALL ROUND FLAT-FACED ELECTROMAGNETS - 12VDC (24 VDC OPTIONAL)

MODEL
DIAMETER
HEIGHT
THREAD
THREAD
DEPTH
LOCATION
OF LEADS
WATTS
LBS.
PULL
NET
WGT.

A
B
C
D
E

MAG.EM-R50
1/2
1-1/2
6-32
3/8
3/16
1.4
4
1.5 oz..
MAG.EM-R75
3/4
1-1/4
10-32
3/8
3/16
0.2
10
1.7 oz..
MAG.EM-R1
1
1-1/4
10-32
3/8
3/16
4..5
20
2.6 oz..
MAG.EM-R1A
1
23/32
10-32
3/8
1/8*
1
10
1.9 oz..
MAG.EM-R125
1-1/4
1-1/4
1/4-20
3/8
1/4
4.5
40
4..2 oz..
MAG.EM-R-175
1-3/4
1-5/8
1/4-20
1/2
3/8
3
160
11 oz..
MAG.EM-R2
2
1-5/8
1/4-20
1/2
1/4
5.2
220
1 lb.
MAG.EM-R3
3
2
(2) 1/4-20
1/2
5/8
12
500
3-1/4 lb.
MAG.EM-R3-1/2
3-1/2
1-1/2
(2) 1/4-20
1/2
5/16*
8
650
3-1/4 lb.
MAG.EM-R4
4
3-1/4
(2) 3/8-16
5/8
3/8*
15
900
9 lb.
MAG.EM-R6B
6
1-1/4
(2) 1/4-20
5/8
7/8*
7.8
1000
8 lb.

SMALL RECTANGULAR ELECTROMAGNETS - 12VDC (24 VDC OPTIONAL) • MAG.EM-476 IS 110VDC

SMALL RECTANGULAR ELECTROMAGNETS - 12VDC (24 VDC OPTIONAL) • MAG.EM-476 IS 110VDC
MODEL
WIDTH
INCHES
LENGTH
HEIGHT
MNT'G
THREAD
THREAD
DEPTH
LOCATION
OF LEADS
WATTS
LBS.
PULL
NET
WGT.

A
B
C
D
E
F
G
H

MAG.EM-622
1-1/2
2-1/2
1-1/4
1
10-32
3/8
3/4
1/2
5
200
1 lb.
MAG.EM-815
2-1/2
2-1/2
1-1/2
3/4
1/4-20
1/2
1-3/4*
3/8*
8
450
2 lb.
MAG.EM-711
2-1/2
4-1/2
2
2
1/4-20
1/2
1-1/2
3/4
6
750
5 lb.
MAG.EM-667
3
6
2
3
3/8-16
1/2
1
1
37
1000
11 lb.
MAG.EM-476
4
8
2-1/2
4
3/8-16
3/4
1-1/4
1-1/4
42
2000
16 lb.
