GP Series BiPolar Electromagnets

General Purpose Parallel Pole Design for Various Handling Operations

 GP Series BiPolar Electromagnets
  •   GP Series BiPolar Electromagnets feature
    parallel poles which provides an extended field
    and allows both poles to contact an irregularly
    shaped part. To provide maximum contact, the
    pole- can be machined or contoured auxiliary
    pole -hoes can be added to provide better
    contact with the workpiece.
    Contact the factory with details of your
    application for recommendations.

    Standard Features:
  • (2) Tapped Mounting Holes
  • 24" Leads on 1 " Wide Magnets
  • 24" 18-2 Cord on 2" Wide Magnets
  • Continuous Duty
  • 12 VDC (Standard), 24 VDC and 110 VDC
    No Charge Optional Voltages



Options:

  • Special Pole Shoes
  • Special Mounting Hole Location
  • Special Cord Lengths
  • 120 VAC Versions On Some Models



Pull rating is maximum breakaway force on low carbon steel with a cold rolled finish at magnetic saturation

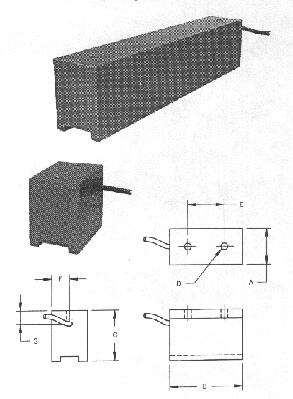

 Model Width A Length B Height D Tap D E F G Pull Max Watts Weights(lbs)
 Mag. GP-1010  1"  1"  1-3/8"  10-32  1/2"  1/2"  1/2"  20 lbs.  4  0.4
 Mag. GP-1020  1"  2"  1-3/8"  10-32  1"  1/2"  1/2"  80 lbs  6  0.9
 Mag. GP-1030  1"  3"  1-3/8"  1/4-20  2"  1/2"  1/2"  170 lbs  11  1.2
 Mag. GP-1040  1"  4"  1-3/8"  1/4-20  3"  1/2"  1/2"  210 lbs  13  1.8
 Mag. GP-1060 1" 6"  1-3/8"  1/4-20  3"  1/2"  1/2"  260 lbs  22  2.4
 Mag. GP-2030   2"  3"  2-3/4"  5/16-18  2"  1"  1/2"  270 lbs  21  3.0
 Mag. GP-2040  2"  4"  2-3/4"  5/16-18  3"  1"  1/2"  350 lbs.  22  4.0
 Mag. GP-2060   2"  6"  2-3/4"  5/16-18  4-1/2"  1"  1/2"  610 lbs.  38  6.0
 Mag. GP-2080   2"  8"  2-3/4"  5/16-18  6-1/2"  1"  1/2"  970 lbs.  52  8.0







link to Magnetool Index page



Trademarks are the properties of their respective owner(s).

November 2022, updated May 2012 CSS, November 2008, November 2005

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
