Meyer Gear and Thread Measuring Wires

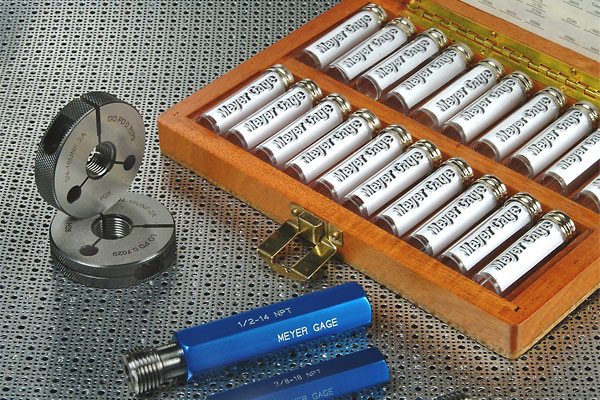

Thread Gages O.D / I.D. & Wires

Gear Measuring Wires Sets
Meyer Gage Gear Measuring Wires meet or exceed former Fed. Spec. GGG-W-366bB89 for grade AM.G.W.  Meyer Thread Measuring Wires are manufactured as a matched set of two wires with each wire diameter matched to the others within +/-.00001″.  The diameters of the two wires shall be within +/-.00002″ of the best wire size diameter.


60 Degree Thread Wires With Holders and Sets
Meyer Gage thread measuring wires are available in English and Metric for 60 degree wires and also 29 degree acme sets and are manufactured as a matched set of three wires per ASME B89.1.17.  Each wire diameter is matched to the others within +/-.00001″.  The diameters of the three wires shall be within +/-.00002″ of the best wire size diameter.


60° THREAD MEASURING WIRES
Meyer Gage Thread Measuring Wires together with a micrometer, are used to quickly & accurately measure pitch diameters of external threads. They are perfect for calibrating or checking wear threads plug gages, and are used to monitor and control pitch diameters manufactured threads. Meyer Thread Measuring Wires are manufactured as a matched set of three wires per ASME B89.1.17.  Each wire diameter is matched to the others within +/-.00001″.  The diameters of the three wires shall be within +/-.00002″ of the best wire size diameter.

FEATURES:

  • 100% inspection
  • 2 microfinish or better
  • Tool Steel
  • All members 2” long
  • Meets former Federal Specification GGG-W-366b for Grade A Master Thread Wires. Each wire diameter is a matched set to the others within +/-.00001″.  The diameters of the wires shall be within +/-.00002″ of the best wire size diameter.



download 2019 technical catalogue 4.4 Mb

link to index page

May 2022, March 2019

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
