Meyer Class X, MG25 Pin Gage Sets

Thread Gages O.D / I.D. & Wires

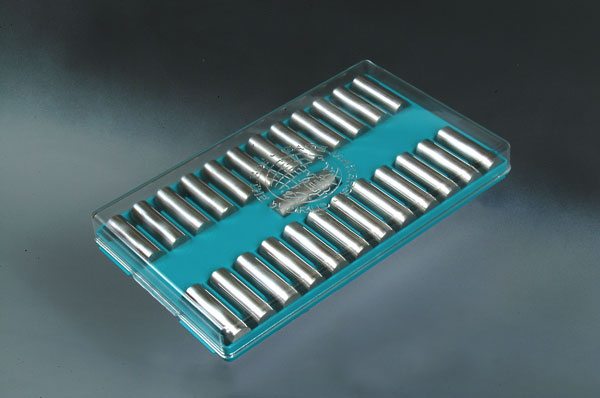

Each set contains 25 pieces with starting tolerance of Class X tolerance

Class X grade pins with a starting diameter tolerance of .00004″ or .001mm and roundness limt of .00002″ or .0005mm ( note tolerance limits increase above .8250″ or 21.01mm per gage makers tolerance chart ). Used as masters to calibrate measuring equipment and check linearity of comparators, micrometers, and calipers. These “Tenth Step” pin gage sets have unlimited applications, such as quality control inspection, prototype work and production layout. Inspectors select from the range of pins to find the size of a hole or slot. These round masters simulate a cylindrical part which, unlike flat blocks, can detect uneven wear on the tips of micrometers and calipers. The thin “line” of contact detects uneven face wear better than flat gage blocks with large contact area.

FEATURES

  • Each set contains 25 pieces with starting tolerance of Class X tolerance ( .00004” ) gage pins. Traceable to NIST.
  • ( note tolerance limits increase above .8250″ per gage makers tolerance chart )
  • Choice of two tolerances: Plus (+) or Minus (-)
  • Sets consist of a center nominal size, and 12 gages larger in .0001” steps and 12 gages smaller in .0001” steps.
  • Each gage is inspected and has a 2 microfinish or better.
  • Heat treated and through hardened to 60-62 Rockwell C
  • All pin gages over .060” or 1. 51mm are laser marked with size direction of tolerance and serial number for traceability.



English Metric
MEY.MG1-25 .0122" to .0609" 0.28mm to 1.54mm
MEY.MG2-25 .0610" to .2509" 1.55mm to 6.37mm
MEY.MG3-25 .2510" to .5009" 6.38mm to 12.72mm
MEY.MG4-25 .5010" to .7499" 12.73mm to 19.04mm
MEY.MG5-25 .7500" to .8129" 19.05mm to 20.64mm
