Meyer Class Z Pin Sets  &  Libraries

inch     metric

The Meyer Gage Class Z gage pin will meet or exceed the requirements of Class ZZ, and can replace the Class ZZ in any situation or application.

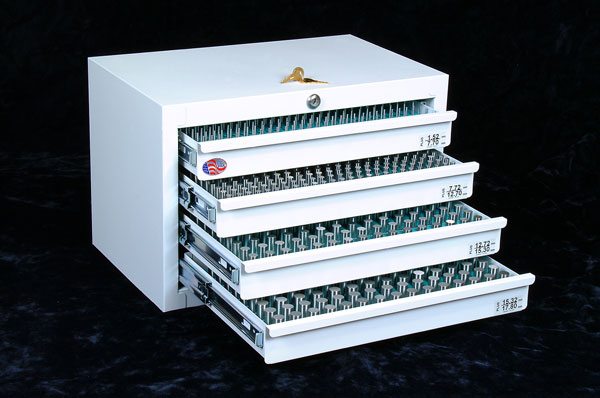

CLASS Z ENGLISH PIN GAGE SETS & LIBRARIES

Meyer started making the original ZZ back in 1965 and our competition has tried, but can’t copy the quality of these affordable pin gage sets. Meyer now have taken the extra step for the better pin gage, Class Z. Introducing the MEYER Z. A closer tolerance (.0001), more accurate and better for your needs. Meyer have done it again. Meyer made a better pin gage that no other has attempted with the same great features listed below.

See for yourself, below is a comparison of the Class ZZ and the Class Z gage pin specifications.

OLD Class ZZ
Size deviation .0002”
Roundness geometry .0001”
Surface finish 10 micro
NEW Class Z
Size deviation .0001”
Roundness geometry .00005”
Surface finish 8 micro

The Meyer Gage Class Z gage pin will meet or exceed the requirements of Class ZZ, and can replace the Class ZZ in any situation or application.



FEATURES:
More features than gages costing twice the price.

  • All gages and sets are traceable to N.I.S.T.
  • Boxes and gages both marked
  • Size and serial number laser etched on each piece (M-O not etched)
  • Material: 52100 Bearing Steel
  • No sharp edges
  • All members 2” long

USES:

  • Checking locations
  • Measuring hole sizes and depth
  • GO & NO/GO gaging
  • Setting micrometers
  • Checking distances between holes

FINISH:

  • Centerless lapped
  • Each gage is inspected and has a 8 microfinish or better
  • Heat treated to a hardness of 60-62 Rockwell C
  • All English gages with .0001″ limit


Inch GAGE SETS

inch gage sets





Part Number Range Number of Members weight grams weight lbs
MEY.MOM - minus 0.0110" to 0.0600" 50 454 1
MEY.MOP - plus 0.0110" to 0.0600" 50 454 1
MEY.M05M - minus 0.0115" to 0.0605" 50 454 1
MEY.M05P- plus 0.0115" to 0.0605" 50 454 1
MEY.C10M - minus 0.0110" to 0.2500" 240 3632 8
MEY.C10P - plus 0.0110" to 0.2500" 240 3632 8
MEY.C105M - minus 0.0115" to 0.2505" 240 3632 8
MEY.C105P - plus 0.0115" to 0.2505" 240 3632 8
MEY.M1M - minus 0.0610" to 0.2500" 190 3632 8
MEY.M1P - plus 0.0610" to 0.2500" 190 3632 8
MEY.M15M - minus 0.0615" to 0.2505" 190 3632 8
MEY.M15P - plus 0.0615" to 0.2505" 190 3632 8
MEY.M2M - minus 0.2510" to 0.5000" 250 10442 23
MEY.M2P - plus 0.2510" to 0.5000" 250 10442 23
MEY.M25M - minus 0.2515" to 0.5005" 250 10442 23
MEY.M25P- plus 0.2515" to 0.5005" 250 10442 23
MEY.M3M - minus 0.5010" to 0.6250" 125 10896 24
MEY.M3P - plus 0.5010" to 0.6250" 125 10896 24
MEY.M35M - minus 0.5015" to 0.6255" 125 10896 24
MEY.M35P- plus 0.5015" to 0.6255" 125 10896 24
MEY.M4M - minus 0.6260" to 0.7500" 125 14982 33
MEY.M4P - plus 0.6260" to 0.7500" 125 14982 33
MEY.M45M - minus 0.6265" to 0.7505" 125 14982 33
MEY.M45P- plus 0.6265" to 0.7505" 125 14982 33
MEY.M5M - minus 0.7510" to 0.8320" 82 13166 29
MEY.M5P - plus 0.7510" to 0.8320" 82 13166 29
MEY.M55M - minus 0.7515" to 0.8325" 82 13166 29
MEY.M55P- plus 0.7515" to 0.8325" 82 13166 29
MEY.M6M - minus 0.8330" to 0.9160" 84 15890 35
MEY.M6P - plus 0.8330" to 0.9160" 84 15890 35
MEY.M65M - minus 0.8335" to 0.9165" 84 15890 35
MEY.M65P- plus 0.8335" to 0.9165" 84 15890 35
MEY.M7M - minus 0.9170" to 1.0000" 84 18614 41
MEY.M7P - plus 0.9170" to 1.0000" 84 18614 41
MEY.M75M - minus 0.9175" to 1.0005" 84 18614 41
MEY.M75P- plus 0.9175" to 1.0005" 84 18614 41

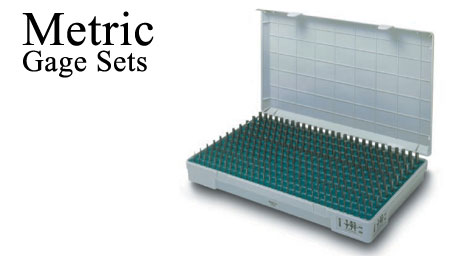

CLASS Z METRIC PIN GAGE SETS & LIBRARIES

Just look at this selection of Metric gage pin sets. If we don’t make it you probably don’t need it! These sets have all the features of our English sets, but provide the finer increments in size that you just can’t get by converting English to Metric.

FEATURES:

More features than gages costing twice the price.

  • All gages and sets are traceable to N.I.S.T.
  • Boxes and gages both marked
  • Size and serial number laser etched on each piece (M-O not etched)
  • Material: 52100 Bearing Steel
  • No sharp edges
  • 51mm overall length
  • All sets in .02mm increments

USES:

  • Checking locations
  • Measuring hole sizes and depth
  • GO & NO/GO gaging
  • Setting micrometers
  • Checking distances between holes

FINISH:

  • Centerless lapped
  • Each gage is inspected and has a 8 microfinish or better
  • Heat treated to a hardness of 60-62 Rockwell C
  • All metric gages with .0025mm tolerance limit

metric gage set



Part Number Range Number of Gages weight grams weight lbs.
MEY.M0MMM - minus .22 to 1.50 65 454 1
MEY.M0MMMP - plus .22 to 1.50 65 454 1
MEY.M01MMM - minus .23 to 1.51 65 454 1
MEY.M01MMP - plus .23 to 1.51 65 454 1
MEY.M1MMM - minus 1.52 to 7.70 310 4540 10
MEY.M1MMP- plus 1.52 to 7.70 310 4540 10
MEY.M11MMM - minus 1.53 to 7.71 310 4540 10
MEY.M11MMP - plus 1.53 to 7.71 310 4540 10
MEY.M2MMM - minus 7.72 to 12.70 250 11350 25
MEY.M2MMP- plus 7.72 to 12.70 250 11350 25
MEY.M21MMM - minus 7.73 to 12.71 250 11350 25
MEY.M21MMP - plus 7.73 to 12.71 250 11350 25
MEY.M3MMM - minus 12.72 to 15.30 130 10896 24
MEY.M3MMP- plus 12.72 to 15.30 130 10896 24
MEY.M31MMM - minus 12.73 to 15.31 130 10896 24
MEY.M31MMP - plus 12.73 to 15.31 130 10896 24
MEY.M4MMM - minus 15.32 to 17.80 125 13620 30
MEY.M4MMP- plus 15.32 to 17.80 125
125
13620 30
MEY.M41MMM - minus 15.33 to 17.81  125
125
13620 30
MEY.M41MMP - plus 15.33 to 17.81  125 13620 30
MEY.M5MMP- minus 17.82 to 20.36 128 17252 38
MEY.M5MMP- plus 17.82 to 20.36 128 17252 38
MEY.M51MMM - minus 17.83 to 20.37 128 17252 38
MEY. M51MMP - plus  17.83 to 20.37 128 17252 38
MEY.M6MMM - minus 20.38 to 22.04 84 14528 32
MEY.M6MMP- plus 20.38 to 22.04 84 14528 32
MEY.M61MMM - minus 20.39 to 22.05 84 14528 32
MEY.M61MMP - plus 20.39 to 22.05 84 14528 32
MEY.M7MMM - minus 22.06 to 23.72 84 16798 37
MEY.M7MMP- plus 22.06 to 23.72 84 16798 37
MEY.M71MMM - minus  22.07 to 23.73 84 16798 37
MEY.M71MMP - plus 22.07 to 23.73   84 16798 37
MEY.M8MMM - minus 23.74 to 25.40  84 18614 41
MEY.M8MMP - plus 23.74 to 25.40 84 18614 41
MEY.M81MMP - minus  23.75 to 25.41  84 18614 41
MEY.M81MMP - plus  23.75 to 25.41  84 18614 41






link to index page

June 2023, April 2022, March 2019

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
