APPLICATIONS

Holes

Cross Holes

Deep Holes

Curved Edge
|
Specialty blades.
Additional options for special applications.
Some right hand or left hand operation, and some are for both. Some blades are made of Tungsten Carbide and certain blades can be obtained Tin-coated for longer tool life.
Some blades are with Diamond coating for working on Ceramics and Glass.
download the Noga Specialty blades catalogue ( 593 kb pdf)

NOG.S10 CARBIDE - BS1016
Works best on hardened steel & special plastics.
For right hand users.
- Blade Material: Carbide
- Hardness: 1400 - 1700 HV
- Angle: 50 Deg
- Weight: 33 gr
- Pack quantity: 10 pcs

NOG.S10 DIAMOND - BS1014
Works best on glass & ceramics.
For right hand users.
- Hardness: 1400 - 1700 HV
- Weight: 33 gr
- Pack quantity: 10 pcs

NOG.S10 LH - BS1011
Works best on steel,aluminum and plastic.
For left hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 33 gr
- Pack quantity: 10 pcs

NOG.S10 LH TIN - BS1013
Works best on abrasive material. S10 with Tin coating for longer blade life.
For left hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 31 gr
- Pack quantity: 10 pcs

NOG.S100 TIN - BS1019
Works best on plastic and hard materials.
S100 with Tin coating for longer blade life.
For right hand users.
- Blade Material: H.S.S
- Hardness: 64-67Rc.
- Angle: 45 Deg
- Weight: 33 gr
- Pack quantity: 10 pcs

NOG.S20 CARBIDE - BS2015
Works best on hardened steel & special plastics.
For left & right hand users.
- Blade Material: H.S.S
- Hardness: 1400 - 1700 HV
- Angle: 60 Deg
- Weight: 33 gr
- Pack quantity: 10 pcs

NOG.S101 LH - BK1011
Works best on fine edges on all materials.
For left hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 29 gr
- Pack quantity: 10 pcs

NOG.S101 TIN - BK1012
Works best on fine edges on all materials.
S101 with Tin coating for longer blade life.
For right hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 29 gr
- Pack quantity: 10 pcs

NOG.S101 TIN - BK1012
Works best on fine edges on all materials.
S101 with Tin coating for longer blade life.
For right hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 29 gr
- Pack quantity: 10 pcs

NOG.S30 TIN - BS3003
Works best on both int. and ext. burrs.
S30 with TiN coating for longer blade life.
For right hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 7 gr
- Pack quantity: 1 pcs

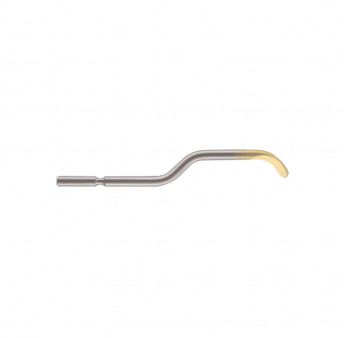

NOG.S60 TIN - BS6003
Works best on cross holes in difficult to reach places.
S60 with TiN coating for longer blade life.
For right hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 9 gr
- Pack quantity: 1 pcs

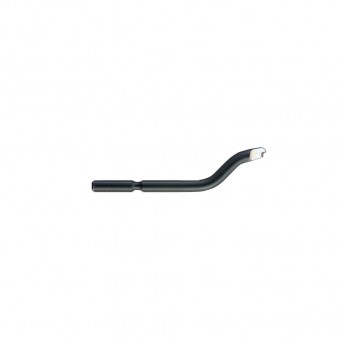

NOG.S80 - BS8001
Works best on shallow steps.
For right hand users.
.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 35 Deg
- Weight: 8 gr
- Pack quantity: 1 pcs

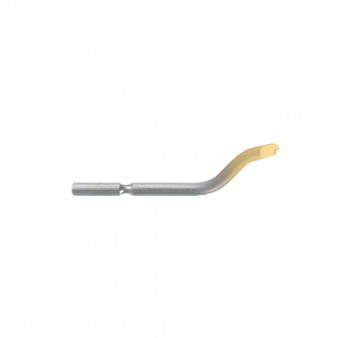

NOG.S80 TIN - BS8003
Works best on shallow steps.
S80 with TiN coating for longer blade life.
For right hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 35 Deg
- Weight: 8 gr
- Pack quantity: 1 pcs

NOG.S1500 BLADE - BS1510
special blade for deburring rubber and soft materials
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Weight: 43 gr
- Pack quantity: 10 pcs

NOG.N1 LH - BN1026
Works best on steel,aluminum and plastic.
For left hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 13 gr
- Pack quantity: 10 pcs

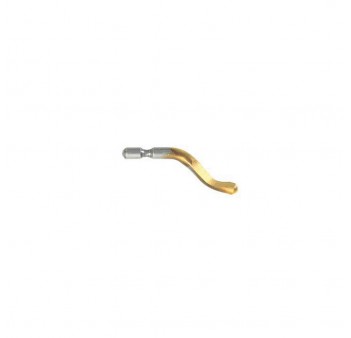

NOG.N1 LH TIN - BN1027
Works best on abrasive material.
N1 with Tin coating for longer blade life.
For left hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 5 gr
- Pack quantity: 1 pcs

NOG.N1 LH TIN - BN1027
Works best on abrasive material.
N1 with Tin coating for longer blade life.
For left hand users.
- Blade Material: H.S.S
- Hardness: 62-64 Rc
- Angle: 40 Deg
- Weight: 5 gr
- Pack quantity: 1 pcs

NOG.N1 DIAMOND - BN1028
Works best on glass & ceramics.
For right hand users.
- Hardness: 1400 - 1700 HV
- Weight: 5 gr
- Pack quantity: 1 pcs

NOG.N1 CARBIDE - BN1029
Works best on hardened steel & special plastics.
For right hand users.
- Blade Material: Carbide
- Hardness: 1400 - 1700 HV
- Angle: 50 Deg
- Weight: 6 gr
- Pack quantity: 1 pcs

NOG.N2 CARBIDE - BN2031
Works best on hardened steel & special plastics.
For left & right hand users
- Blade Material: Carbide
- Hardness: 1400 - 1700 HV
- Angle: 50 Deg
- Weight: 6 gr
- Pack quantity: 1 pcs
