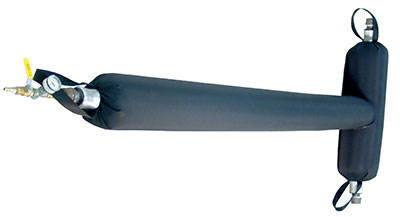

116 Series Multi-Flex™ Lateral Joint "T" Packers Sizes: 4" to 24"

For other inflatable plugs click here

Deflates To Small Flexible Size For Easy Insertion

Smooth, Even Relining

The Petersen® Packer has a fixed inflated diameter independent of the pipeline. This allows for a smooth repair with a constant diameter unlike rubber packers that generally follow the contour of the broken area of the pipeline causing an irregular I.D. repair.

Easy Installation and Removal

Small deflated diameter, light weight and flexibility allow installation of long Multi-FlexT Packers through a small opening. Removal after deflating is just as easy.

Flow-Thru

The by-pass design allows main line flow through the Multi-FlexT Packer during repairs.

Light Weight

Petersen® Multi-FlexT Packers are much lighter than molded rubber packers for easy placement.

High Strength Flexible Materials

Inflatable Multi-FlexT Packers are made from very high strength flexible woven and non-woven materials.  Connections are available for air, hot water, steam inflation and recirculation.

Air, Hot Water or Steam

Packers can be fitted with connections or use with circulating hot water, steam or ambient cure with air or water.

Custom Configurations

Custom Flexible and Rigid Plugs and Packers are manufactured for many high temperature and severe chemical applications. Please contact a Petersen engineer to discuss your requirements.

Other Sizes and Pressures Available

90° Lateral
Main Line Lateral Line

Maximum

Inflation

Pipeline

Max. Head*

Inflation

Port

(QC)

Shpg
Wt
lbs
Item
Number

Maximum

Diameter

Contact

Length

Maximum

Diameter

Contact

Length

in mm in mm in mm in mm psig bar ft m
4 102 16 406 2 51 16 406 25 1.7 28 8.8 1/4" 6 PET.116-0402-901616
6 152 18 457 4 102 24 610 25 1.7 28 8.8 1/4" 8 PET.116-0604-901824
8 203 24 610 4 102 32 812 25 1.7 28 8.8 1/4" 10 PET.116-0804-902432
10 254 40 1016 4 102 40 1016 25 1.7 28 8.8 1/4" 12 PET.116-1004-904040
12 305 48 1219 6 152 48 1219 25 1.7 28 8.8 1/4" 14 PET.116-1206-904848
18 457 48 1219 6 152 48 1219 25 1.7 28 8.8 1/4" 18 PET.116-1806-904848
24 610 48 1219 6 152 48 1219 25 1.7 28 8.8 1/4" 20 PET.116-2406-904848



45° Lateral
Main Line Lateral Line

Maximum

Inflation

Pipeline

Max. Head*

Inflation

Port

Shpg
Wt
lbs
Item
Number

Maximum

Diameter

Contact

Length

Maximum

Diameter

Contact

Length

in mm in mm in mm in mm psig bar ft m (QC)
4 102 16 406 2 51 16 406 25 1.7 28 8.8 1/4" 6 PET.116-0402-451616
6 152 18 457 4 102 24 610 25 1.7 28 8.8 1/4" 8 PET.116-0604-451824
8 203 24 610 4 102 32 812 25 1.7 28 8.8 1/4" 10 PET.116-0804-452432
10 254 40 1016 4 102 40 1016 25 1.7 28 8.8 1/4" 12 PET.116-1004-454040
12 305 48 1219 6 152 48 1219 25 1.7 28 8.8 1/4" 14 PET.116-1206-454848
18 457 48 1219 6 152 48 1219 25 1.7 28 8.8 1/4" 18 PET.116-1806-454848
24 610 48 1219 6 152 48 1219 25 1.7 28 8.8 1/4" 20 PET.116-2406-454848

Advise position of lateral on main line

Nylon loops on each of three ends for positioning

Other sizes & lengths also available

*QC Quick connection.

By-Pass Option - call for prices

*Inflatable Plug Warning: Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex™ Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 ½ to 2 times the diameter, but even a head of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage may cause property damage or injury.  NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure would cause injury.



Products covered by one or more of the following patents: 4,565,222; 5,353,842; 5,901,752; 6,446,669; 6,568,429; 6,899,138 and other applications pending.



Trademarks are the properties of their respective owner(s).
