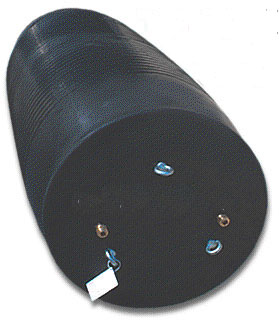

134 Series Municipal Style Kevlar® Reinforced Rubber Test Plugs Without By-Pass Sizes: 1.60" to 72"






Item Number PET.134-048





Pipe Diameter Plug
Diameter
Required

**Pipeline

Valve
Type
Eye Bolt
Size
Deflated Shpg
Wt
lbs
Item
Number
Inflation Max. Head
Maximum Minimum Length
in mm in mm in mm psig ft m in QC in mm in mm
2.8 72 1.6 41 1.40 36 36.0 34 10.4 1/4 M 0.24 6 7.7 195 1 PET.134-002
6 153 2.80 72 2.70 69 36.0 34 10.4 1/4 M 0.24 6 13.2 335 2 PET.134-006
8 203 3.63 92 3.60 92 36.0 34 10.4 1/4 M 0.24 6 21.1 536 3 PET.134-008
12 305 5.63 143 5.60 143 36.0 34 10.4 1/4 M 0.32 8 23 584 7 PET.134-012
16 406 7.50 190 7.60 194 36.0 34 10.4 1/4 M 0.32 8 25.0 635 10 PET.134-016
21 533 10.75 273 10.70 272 36.0 34 10.4 1/4 M 0.32 8 26.6 676 15 PET.134-021
24 610 13.00 330 12.70 323 36.0 34 10.4 1/4 M 0.39 10 34.1 867 22 PET.134-024
30 762 14.00 356 13.50 343 36.0 34 10.4 1/4 M 0.39 10 42.7 1085 26 PET.134-030
40 1016 19.00 483 18.60 473 21.6 16 4.9 1/4 M 0.39 10 46.7 1187 48 PET.134-040
48 1219 23.00 584 22.60 559 21.6 16 4.9 1/4 M 0.39 10 59.0 1499 90 PET.134-048
60 1524 30.00 762 23.60 600 14.5 13 4.0 1/4 M 0.39 10 90.6 2302 148 PET.134-060
72 1828 30.00 762 23.6 600 14.5 13 4.0 1/4 M 0.39 10 116.5 2959 231 PET.134-072


**Inflatable Plug Warning: Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex™ Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 ½ to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage.
