136 Series Municipal Style Kevlar® Reinforced Rubber Plugs With By-Pass Sizes: 3" to 72"

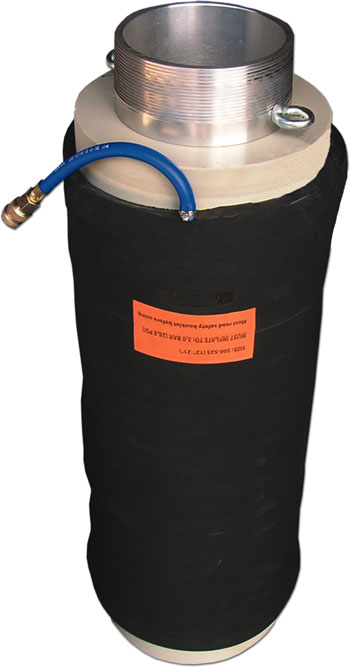

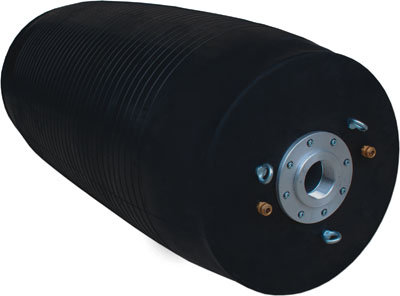

large bypass series 136series 136



Pipe Diameter

By-Pass
Size

in npt

Plug Required **Pipeline Valve
Type
Eye Bolt Size Deflated Length

Shpg
Wt
lbs

Item
Number
Maximum Minimum Diameter Inflation Max. Head
in mm in mm in mm psig ft m in QC in mm in mm
Multi-Size Municipal Plugs With Standard By-Pass
6 153 3.0 76 1/2 F 2.70 68 36 34 10.4 1/4 M 0.24 6 13.75 350 4 PET.136-006-8
8 203 3.63 92 1 F 3.50 89 36 34 10.4 1/4 M 0.24 6 23.0 584 8 PET.136-008-81
8 203 6.00 153 1 F 5.60 142 36 34 10.4 1/4 M 0.32 8 16.5 420 7 PET.136-008-816
12 305 5.63 143 1 F 5.50 140 36 34 10.4 1/4 M 0.32 8 25.0 635 12 PET.136-012-81
16 406 7.50 190 2 F 7.38 187 36 34 10.4 1/4 M 0.32 8 25.0 635 20 PET.136-016-8215
21 533 10.75 273 2 F 10.5 267 36 34 10.4 1/4 M 0.32 8 26.0 660 30 PET.136-021-82
24 610 13.0 330 2 F 12.5 318 36 34 10.4 1/4 M 0.39 10 35.0 889 40 PET.136-024-82
30 762 14.0 356 2 F 13.5 343 36 34 10.4 1/4 M 0.39 10 44.0 1118 50 PET.136-030-82
30 762 15.0 381 4 F 13.75 350 22 16 4.9 1/4 M 0.39 10 55.0 1397 84 PET.136-030-84
40 1016 19.0 483 2 F 18.5 470 22 16 4.9 1/4 M 0.39 10 48.0 1219 80 PET.136-040-82
48 1219 23.0 584 4 F 23.0 584 22 16 4.9 1/4 M 0.39 10 64.0 1626 113 PET.136-048-84
60 1524 25.0 635 4 F 23.5 597 15 13 4.0 1/4 M 0.39 10 97.0 2464 180 PET.136-060-84
72 1828 32.0 812 4 F 23.6 599 15 13 4.0 1/4 M 0.39 10 116.5 2960 233 PET.136-072-84
Multi-Size Municipal Plugs With Large By-Pass
8 203 4.0 102 2 M 3.80 97 36 34 10.4 1/4 M 0.24 6 18.25 464 5 PET.136-008-82
10 254 6.0 153 2 M 5.80 148 29 27 8.2 1/4 M 0.24 6 24.00 610 11 PET.136-010-82
10 254 6.0 153 3 M 5.80 148 29 27 8.2 1/4 M 0.24 6 24.00 610 11 PET.136-010-83
12 305 6.0 153 2 M 5.60 143 22 16 4.9 1/4 M 0.32 8 26.00 661 10 PET.136-012-8207
12 305 8.0 203 2 M 7.80 199 29 27 8.2 1/4 M 0.24 6 27.00 686 19 PET.136-012-8212
12 305 8.0 203 4 M 7.80 199 29 27 8.2 1/4 M 0.24 6 27.00 686 19 PET.136-012-84
16 406 7.5 191 2 M 7.25 185 22 16 4.9 1/4 M 0.24 6 31.00 788 17 PET.136-016-8207
16 406 7.5 191 4 M 7.25 185 22 16 4.9 1/4 M 0.24 6 31.00 788 17 PET.136-016-84
21 533 12.0 305 4 M 11.6 295 29 27 8.2 1/4 M 0.32 8 34.00 864 41 PET.136-021-84
21 533 12.0 305 6 M 11.6 295 29 27 8.2 1/4 M 0.32 8 34.00 864 41 PET.136-021-86
24 610 14.0 356 4 M 12.7 323 22 16 4.9 1/4 M 0.39 10 39.00 991 44 PET.136-024-84
24 610 14.0 356 6 M 12.5 318 22 16 4.9 1/4 M 0.32 8 39.00 991 47 PET.136-024-86
40 1016 20.0 508 4 M 18.6 473 22 16 4.9 1/4 M 0.39 10 53.00 1347 92 PET.136-040-84
40 1016 20.0 508 6 M 18.6 473 22 16 4.9 1/4 M 0.39 10 53.00 1347 92 PET.136-040-86
40 1016 20.0 508 8 M* 18.6 473 22 16 4.9 1/4 M 0.39 10 53.00 1347 92 PET.136-040-88
48 1219 24.0 610 6 M 22.6 574 22 16 4.9 1/4 M 0.47 12 57.00 1450 143 PET.136-048-86
48 1219 24.0 610 8 M* 22.6 574 22 16 4.9 1/4 M 0.47 12 57.00 1450 155 PET.136-048-88
60 1524 30.0 762 6 M 23.6 599 15 13 4.0 1/4 M 0.47 12 90.50 12300 198 PET.136-060-86
60 1524 30.0 762 8 M* 23.6 599 15 13 4.0 1/4 M 0.47 12 90.50 2300 214 PET.136-060-88
72 1828 32.0 812 6 M 23.6 599 15 13 4.0 1/4 M 0.47 12 116.5 2960 276 PET.136-072-86
72 1828 32.0 812 8 M* 23.6 599 15 13 4.0 1/4 M 0.47 12 116.5 2960 295 PET.136-072-88

*Most of these by-pass (flow-thru) plugs come complete with standard schedule 40 PVC caps (except 8"). 8" by-pass plugs requires schedule in80 PVC caps and are not included for economical reasons. Order 8" caps separately if required (extra charge ).

**Inflatable Plug Warning: Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex™ Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 ½ to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage.
