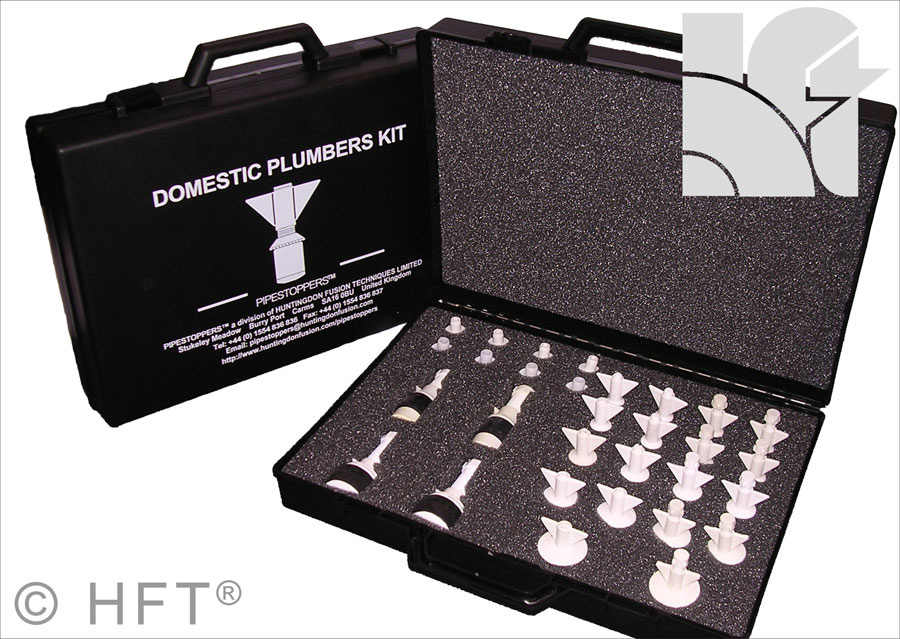

HFT Pipestoppers® Domestic Plumbers Kit



Designed specifically for plumbing applications for the leak testing of pipes and sinks.

The Domestic Plumbers Kit contains the most popular sizes of drain plugs and accessories.

These are all stored in a robust ABS plastic case.







PART Nº	PRODUCT DESCRIPTION
PS.PC001	For Kit contents, see table below for HFT Pipestoppers® Domestic Plumbers Testing Weight: 1.9 kg (4.18 lbs) Case Size: 450 x 340 x 100 mm (17.17 x 13.38 x 3.93")

All Dimensions are based on the Imperial system.
Sizes shown in mm are only mathematic conversions of the imperial dimensions and are not intended to represent metric standards.

Each HFT Pipestoppers® Domestic Plumbers Kit comprise a plastic foam lined ABS carry case comes complete with the following items:

PART Nº	QUANTITY	DESCRIPTION	PRODUCT SIZE				SIZE RANGE		HEIGHT OF SEAL		WEIGHT  PER PLUG
PSP1013 PSP1019 PSP1025 PSP1032 PSP1038 PSP113H PSP119H PSP125H PSP132H PSP138H PSP2038 PSP2050	2 2 2 2 1 2 2 2 2 1 2 2 4 4 1	Solid Stem Small Bore Plug Solid Stem Small Bore Plug Solid Stem Small Bore Plug Solid Stem Small Bore Plug Solid Stem Small Bore Plug Hollow Shaft Small Bore Plug Hollow Shaft Small Bore Plug Hollow Shaft Small Bore Plug Hollow Shaft Small Bore Plug Hollow Shaft Small Bore Plug Hollow Shaft Large Bore Plug Hollow Shaft Large Bore Plug BSP Nipple Caps and washers BSP Swivel Nut and Hose Tail and washers ABS Plastic Foam Lined Case	1/2" 3/4" 1" 1 1/4" 1 1/2" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 1/2" 2"		13 mm 19 mm 25 mm 32 mm 38 mm 13 mm 19 mm 25 mm 32 mm 38 mm 38 mm 51 mm		14 - 19 mm 18 - 25 mm 24 - 36 mm 30 - 44 mm 36 - 51 mm 13 - 19 mm 18 - 26 mm 23 - 36 mm 30 - 43 mm 36 - 50 mm 36 - 53 mm 49 - 64 mm 0.5" BSP 0.5" BSP		20 mm 23 mm 25 mm 31 mm 31 mm 20 mm 23 mm 25 mm 31 mm 31 mm 31 mm 31 mm		10 gms 15 gms 20 gms 35 gms 45 gms 10 gms 15 gms 20 gms 35 gms 45 gms 70 gms 80 gms
