Pipestoppers® Pool and Spa Kit

Pool and Spa Plug Kit

Designed specifically for plumbing applications for the leak testing of pipework used in pool and spa maintenance and leak testing the typical pipework found in swimming pool and spa installations.Nylon Plugs Pool Spa

Fix leaks without having to drain your swimming pools and spas.

Save expensive chemicals and heating costs by not needing to drain those pools and spas.

Overcome problems with large volume water drainage that requires special handling of water including chemicals.

Ready made kits of plugs to make the sealing of all holes easy and fast for reliable leak testing.

The plugs are made from nylon and natural rubber, so they will not corrode and seize up. They can also be totally dismantled for cleaning and part replacement.

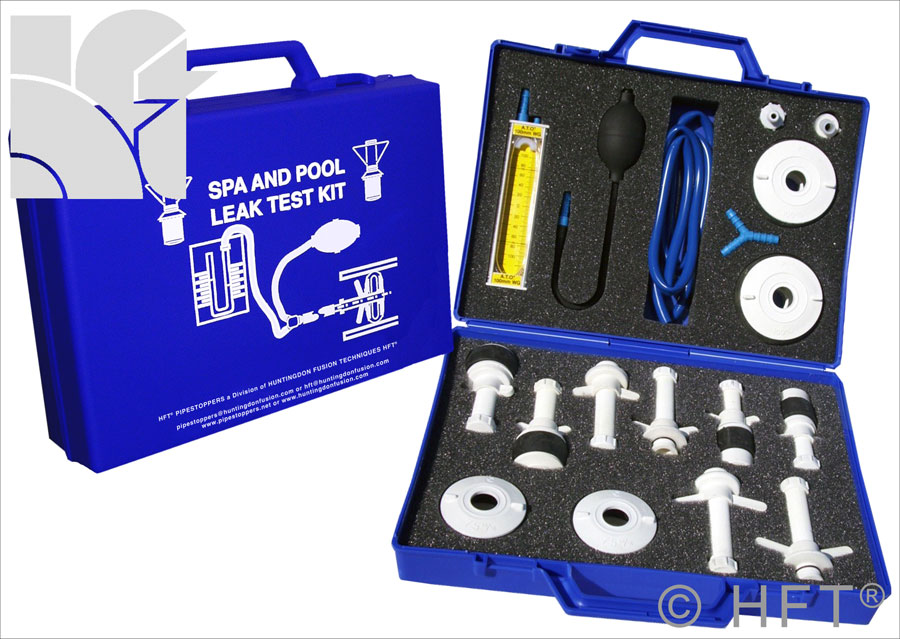

Each kit contains:

1 off      4" U-Gauge, Bulb, Y Union and Hoses
2 off 1.5" Nylon Plugs
2 off 2" Nylon Plugs
2 off 3" Nylon Plugs
2 off 4" Nylon Plugs
1 off Blue ABS Carry Storage Case with Cut Foam Liner
1 off 0.5" BSP Nipple caps
1 off 0.5" Swivel Nut with free Tail Piece



For larger diameters see the details of the Drain Test Plug Kit.

All plugs are available as individual items for replacement purposes.

Plug sizes from 1.5 inch and above have an ½" BSP threaded hollow shaft for connecting air lines to pressurise the items under test.

Plugs size 1.5" are available with a narrow bore threaded stem or are available as a solid stem.



PART Nº PRODUCT DESCRIPTION
PS.SPA001 For Kit contents, see table below for  Plumbing Leak Testing of Pipework in Pool and Spa Maintentance

Weight: 1.9 kg (4.18 lbs)

Size: 450 x 340 x 100 mm (17.17 x 13.38 x 3.93")


All Dimensions are based on the Imperial system.
Sizes shown in mm are only mathematic conversions of the imperial dimensions and are not intended to represent metric standards.


Each Pool and Spa Testing Kit comprises a plastic foam lined ABS carry case comes complete with the following items:

PART Nº QUANTITY DESCRIPTION PRODUCT SIZE     SIZE RANGE     HEIGHT OF SEAL   WEIGHT
PER PLUG
PSP138H

PSP2050
PSP2100
PSP2125

PSP1002
PSP1019

PSSPAK001


PSSPAC001



 2 off

2 off
2 off
2 off

1 off
1 off

1 off


1 off		 Hollow Shaft Small Bore Plug

Hollow Shaft Large Bore Plug
Hollow Shaft Large Bore Plug
Hollow Shaft Large Bore Plug

Swivel Nut wit Free Tail Piece
0.5" Nipple Caps, 3 mm Bore

4" U-gauge (manometer), bulb,
Y union and hoses

Blue ABS carry Case with Cut Foam Liner		 1 1/2"

2"
3"
4"



   38 mm

51 mm
76 mm
102 mm


   36 - 50 mm

49 - 64 mm
73 - 88 mm
92 - 110 mm

0.5" BSP
 		   31 mm

31 mm
31 mm
35 mm


   45 gms

80 gms
140 gms
160 gms
