HFT Pipestoppers® Commercial Vehicle Radiator and Cooler Leak Test Kit

Nylon Plugs Test Kit

Nylon Plugs radiator test kit

Designed specifically for commercial vehicle applications for the leak testing of radiators and inter-coolers.

For the larger holes found in radiators and coolers in trucks and lorries, the Commercial Kit provides those extra sizes that allow you to use this along side the Automotive Kit for the smaller holes found in car radiators.

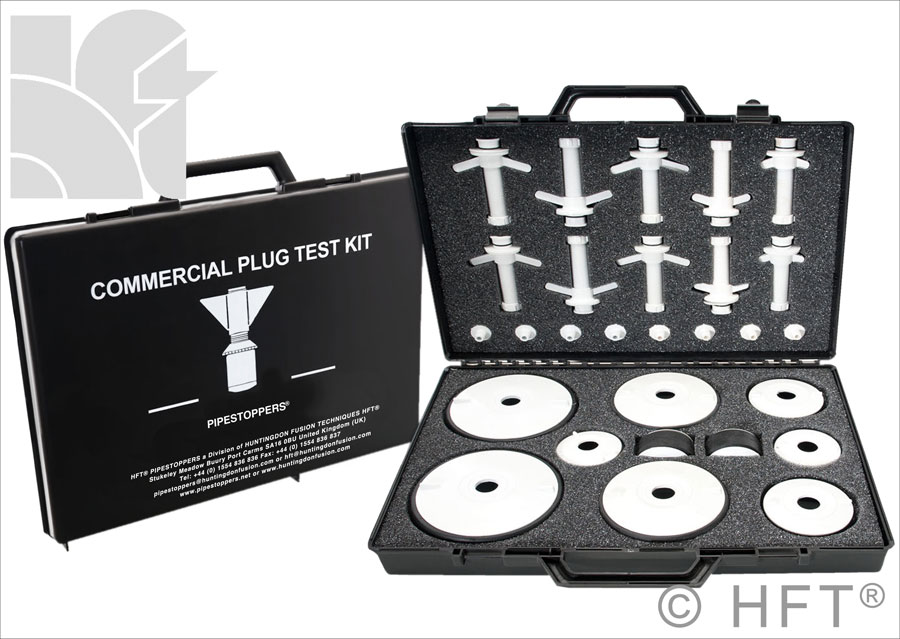

The Commerical Test Plug Kit contains:



2 x      2½" Hollow Shaft Plugs
2 x   3" Hollow Shaft Plugs
2 x   4" Hollow Shaft Plugs
2 x   5" Hollow Shaft Plugs
2 x   6" Hollow Shaft Plugs
4 x   1/2" BSP Nipple Caps
4 x 1/2" BSP Swivel Nut and Hose Tail




Also included are 4 x 0.5" BSP nipple caps and 4 x 0.5" BSP swivel nuts and hose tail.

Plus the rigid ABS plastic storage case with special cut to size foam.

These plugs all have hollow shafts with 0.5" BSP threads for the connection of an air hose.

PART Nº PRODUCT DESCRIPTION
PS.CMC001 For Kit contents, see table below for HFT Pipestoppers® Commercial Vehicle Radiator and Cooler Leak Test Kit

Weight: 2.65 kg (5.84 lbs)

Size: 450 x 340 x 100 mm (17.17 x 13.38 x 3.93")

All Dimensions are based on the Imperial system.
Sizes shown in mm are only mathematic conversions of the imperial dimensions and are not intended to represent metric standards.


Each HFT Pipestoppers® Commercial Leak Test Kit comprise a plastic foam lined ABS carry case comes complete with the following items:

PART Nº QUANTITY DESCRIPTION PRODUCT SIZE     SIZE RANGE     HEIGHT OF SEAL   WEIGHT
PER PLUG
PSP2063
PSP2075
PSP2100
PSP2125
PSP2150





2
2
2
2
2


4

4


1

Hollow Shaft Small Bore Plug
Hollow Shaft Small Bore Plug
Hollow Shaft Small Bore Plug
Hollow Shaft Small Bore Plug
Hollow Shaft Small Bore Plug


BSP Nipple Caps and washers

BSP Swivel Nut and Hose Tail and washers


ABS Plastic Foam Lined Case

2 1/2"
3"
4"
5"
6"



  64 mm
76 mm
102 mm
127 mm
152 mm
  63 - 76 mm
73 - 88 mm
82 - 98 mm
119 - 142 mm
145 - 164 mm

0.5" BSP


0.5" BSP


  31 mm
31 mm
31 mm
37 mm
37 mm
  130 gms
140 gms
148 gms
280 gms
390 gms









Trademarks are the properties of their respective owner(s).

October 2022

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
