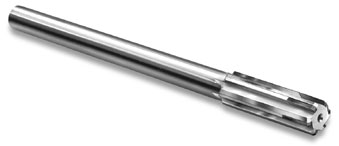

Carbide Tipped Straight Shank Chucking Reamers


TYPE 3400 -- STRAIGHT FLUTES & STRAIGHT SHANK -- FRACTIONAL SIZES
Straight shank and straight polished flutes.
Carbide tips brazed to one piece hardened tool steel bodies.
Cutting diameter tolerance plus .0003" minus .0000".

USE:
For all general reaming of steel, cast iron, non-ferrous metals, plastics and non-metals.

OPTIONS
Intermediate decimal & metric sizes (as indicated in extended table below).
Closer tolerances (see table below).
Cutting diameter reduced for small steps or pilot.
Radius end or end chamfer other than 45º.
End cutting.
Rose grind (twice normal back taper).
Short shank or undersize shank diameter.
Flat on shank or tanged shank.
Semi-finished type reamers in stock

EXACT DECIMAL SIZE REAMERS -
+ .0002" tolerance .
+ .0001" tolerance

carbide tipped chucking reamer
order by R1531-"size"
Tool
Diameter
Dimensions Finished To Modified Tool Diameter
Shank Diameter No. of Flutes Length Modified Diameter Range
Frac. Dec. Flute Carbide Overall Low High
    5/32     .1562     .151   4   1              1/2   4             .1560     .1769
    11/64     .1719     .151   4   1              1/2   4           -   -
    3/16     .1875      11/64   4   1  1/      1/2   4  1/     .1770     .2040
    3/16     .1875      11/64   4   1  1/      1/2   5             .1770     .2040
    13/64     .2031      11/64   4   1  1/      1/2   4  1/   -   -
    7/32     .2188      13/64   4   1  1/      1/2   5             .2041     .2210
    15/64     .2344      7/32   4   1  1/      1/2   6             .2211     .2380
    1/4     .2500      15/64   4   1  1/      1/2   6             .2381     .2530
    17/64     .2656      15/64   4   1  1/      1/2   6           -   -
    9/32     .2812      15/64   4   1  1/      1/2   6             .2531     .2840
    19/64     .2969      9/32   4   1  1/      1/2   6           -   -
    5/16     .3125      9/32   4   1  1/      1/2   6             .2841     .3150
    21/64     .3281      9/32   4   1  1/      5/8   6           -   -
    11/32     .3438      9/32   4   1  1/      5/8   6             .3151     .3470
    23/64     .3594      5/16   4   1  3/      5/8   7           -   -
    3/8     .3750      5/16   4   1  3/      5/8   7             .3471     .3780
    25/64     .3906      5/16   4   1  3/      5/8   7           -   -
    13/32     .4062      5/16   4   1  3/      5/8   7             .3781     .4090
    27/64     .4219      3/8   4   1  3/      5/8   7           -   -
    7/16     .4375      3/8   4   1  3/      5/8   7             .4091     .4410
    29/64     .4531      3/8   4   1  3/      5/8   7           -   -
    15/32     .4688      3/8   4   1  3/      5/8   7             .4411     .4720
    31/64     .4844      7/16   6   2              5/8   8           -   -
    1/2     .5000      7/16   6   2              5/8   8             .4721     .5030
    33/64     .5156      7/16   6   2              5/8   8           -   -
    17/32     .5312      7/16   6   2              5/8   8             .5031     .5340
    35/64     .5469      7/16   6   2              5/8   8           -   -
    9/16     .5625      7/16   6   2              5/8   8             .5341     .5660
    37/64     .5781      7/16   6   2              5/8   8           -   -
    19/32     .5938      7/16   6   2              5/8   8             .5661     .5970
    39/64     .6094      9/16   6   2  1/      5/8   9           -   -
    5/8     .6250      9/16   6   2  1/      5/8   9             .5971     .6280
    41/64     .6406      9/16   6   2  1/      5/8   9           -   -
    21/32     .6562      9/16   6   2  1/      5/8   9             .6281     .6590
    43/64     .6719      9/16   6   2  1/      5/8   9           -   -
    11/16     .6875      9/16   6   2  1/      5/8   9             .6591     .6910
    45/64     .7031      9/16   6   2  1/      5/8   9           -   -
    23/32     .7188      9/16   6   2  1/      5/8   9             .6911     .7220
    47/64     .7344      5/8   6   2  1/      3/4   9  1/   -   -
    3/4     .7500      5/8   6   2  1/      3/4   9  1/     .7221     .7530
    49/64     .7656      5/8   6   2  1/      3/4   9  1/   -   -
    25/32     .7812      5/8   6   2  1/      3/4   9  1/     .7531     .7840
    51/64     .7969      5/8   6   2  1/      3/4   9  1/   -   -
    13/16     .8125      5/8   6   2  1/      3/4   9  1/     .7841     .8160
    53/64     .8281      5/8   6   2  1/      3/4   9  1/   -   -
    27/32     .8438      5/8   6   2  1/      3/4   9  1/     .8161     .8470
    55/64     .8594      3/4   6   2  5/      3/4   10           -   -
    7/8     .8750      3/4   6   2  5/      3/4   10             .8471     .8780
    57/64     .8906      3/4   6   2  5/      3/4   10           -   -
    29/32     .9062      3/4   6   2  5/      3/4   10             .8781     .9090
    59/64     .9219      3/4   8   2  5/      3/4   10           -   -
    15/16     .9375      3/4   8   2  5/      3/4   10             .9091     .9410
    61/64     .9531      3/4   8   2  5/      3/4   10           -   -
    31/32     .9688      3/4   8   2  5/      3/4   10             .9411     .9720
    63/64     .9844      7/8   8   2  3/      3/4   10  1/   -   -
 1           1.0000      7/8   8   2  3/      3/4   10  1/     .9721   1.0030
 1  1/16   1.0625      7/8   8   2  3/      3/4   10  1/   1.0031   1.0660
 1  1/   1.1250      7/8   8   2  7/      7/8   11           1.0661   1.1280
 1  3/16   1.1875   1           8   2  7/      7/8   11           1.1281   1.1905
 1  1/   1.2500   1           8   3              7/8   11  1/   1.1906   1.2530
 1  5/16   1.3125   1           8   3              7/8   11  1/   1.2531   1.3155
 1  3/   1.3750   1           8   3  1/      7/8   12           1.3156   1.3780
 1  7/16   1.4375   1  1/   8   3  1/      7/8   12           1.3781   1.4405
 1  1/   1.5000   1  1/   8   3  1/      7/8   12  1/   1.4406   1.5030
 1  9/16   1.5625   1  1/   8   3  1/      7/8   12  1/   1.5031   1.5660
 1  5/   1.6250   1  1/   8   3  3/      7/8   13           1.5661   1.6280
 1 11/16   1.6875   1  1/   8   3  3/      7/8   13           1.6281   1.6910
 1  3/   1.7500   1  1/   10   4              7/8   13  1/   1.6911   1.7530
 1 13/16   1.8125   1  1/   10   4              7/8   13  1/   1.7531   1.8160
 1  7/   1.8750   1  1/   10   4  1/      7/8   14           1.8161   1.8780
 1 15/16   1.9375   1  1/   10   4  1/      7/8   14           1.8781   1.9410
 2           2.0000   1  1/   12   4  1/      7/8   14           1.9411   2.0030
