Recoil® Screw Thread Insert Repair Kits: British Thread Forms

BSW   |     BSF   |     BSP  |    BSC  |     BA  |     Range Kits

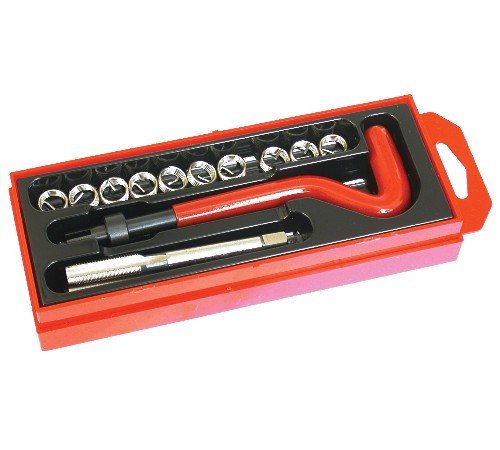

recoil kit

Why use RECOIL inserts ?

recoil insert

Recoil screw threads inserts are used to produce new threads or can be used to repair threaded holes which have been damaged or stripped and refurnish them to their original thread size.

The Recoil insert, which is larger in diameter than the tapped hole is compressed during installation then allowed go spring back, permanently anchoring the insert in the tapped hole.

Because of the larger diameter, the Recoil insert has a greater contact area and is normally stronger than the original threads



recoil kit Features
  • Create stronger and more efficient threads.
  • Simple and easy to use.
  • Designed for use in material such as alloys, steel, magnesium, plastic etc.
  • Simplifies changeover from different thread forms
  • Meets all current Military and Aviation Specifications
  • Interchangeable with other brands of helically wound inserts.
  • Wide temperature range of up to 800°F (430°C)
  • Specials available in Inconel or Phosphor Bronze
  • Recoil is ISO 9001 registered.



BSW ( british standard whitworth, coarse thread)




Size Part # Insert
Per Kit
Drill Size
MM INCH
1/8-40 STK1/8BSW 10 3.40 #29
5/32 only * 8-32 UNC available
3/16-24 STK3/16BSW 10 5.00 13/64
7/32-24 only * 12-24 UNC available
1/4-20 STK1/4BSW 10 6.70 17/64

5/16-18 STK5/16BSW 10 8.30 21/64
3/8-16 STK3/8BSW 10 9.90 25/64
7/16-14 STK7/16BSW 5 11.50 29/64
1/2-12 STK1/2BSW 5 13.00 17/32
9/16-12 STK9/16BSW 5 15.00 19/32

5/8-11 STK5/8BSW 5 16.50 21/32
3/4-10 STK3/4BSW 5 19.80 25/32
7/8-9 STK7/8BSW 5 23.00 29/32
1-8 STK1BSW 5 26.00 1-1/32
1-1/8-7 STK1.1/8BSW 5 29.50 1-5/32

1-1/4-7 STK1.1/4BSW 5 33.00 1-9/32
1-3/8-6 STK1.3/8BSW 5 36.00 1-13/32
1-1/2-6 STK1.1/2BSW 4 39.00 1-17/32
Size Part # Insert
Per Kit
Drill Size
MM INCH
note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.






BSF
Size Part # Insert
Per Kit
Drill Size
MM INCH
3/16-32 STK3/16BSF 10 5.00 13/64
1/4-26 STK1/4BSF 10 6.60 17/64
5/16-22 STK5/16BSF 10 8.20 21/64
3/8-20 STK3/8BSF 10 9.80 25/64
7/16-18 STK7/16BSF 5 11.50 29/64

1/2-16 STK1/2BSF 5 13.00 33/64
9/16-16 STK9/16BSF 5 14.50 37/64
5/8-14 STK5/8BSF 5 16.20 41/64
3/4-12 STK3/4BSF 5 19.50 49/64
7/8-11 STK7/8BSF 5 22.50 57/64

1-12 STK1BSF 5 26.00 1-1/64
1-1/4-9 STK1.1/4BSF 5 32.50 1-9/32
Size Part # Insert
Per Kit
Drill Size
MM INCH
note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.




BSP ( british standard parallel pipe )




Size Part # Insert
Per Kit
Drill Size
MM INCH
1/8-28 STK1/8BSP 10 9.90 3/8
1/4-19 STK1/4BSP 10 13.50 33/64
3/8-19 STK3/8BSP 10 17.00 21/32
1/2-14 STK1/2BSP 5 20.50 13/16

5/8-14 STK5/8BSP 5 23.50  59/64
3/4-14 STK3/4BSP 5 27.00 1-1/64
1-11 STK1BSP 5 33.50 1-9/32
note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.







BA
Size Part # Insert
Per Kit
Drill Size
MM INCH
0 BA STK0BA 10 6.20
1 BA STK1BA 10 5.50
2 BA STK2BA 10 4.90
4 BA STK4BA 10 3.80
6 BA STK6BA 10 2.90
note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.






BSC Brass or 26TPI


Size Part # Insert
Per Kit
Drill Size
MM INCH
1/4-26 STK1/4BSC 10 6.60 17/64
5/16-26 STK5/16BSC 10 8.20 21/64
3/8-26 STK3/8BSC 10 9.80 25/64
7/16-26 STK7/16BSC 5 11.10 7/16
1/2-26 STK1/2BSC 5 12.70 1/2
note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.





RANGE KITS


Parts # Includes
STKS30004 BSF 1/4,5/16,3/8,7/16,1/2
STKS30504 BA 0,1,2,4,6
STKS31004 BSP 1/8,1/4,3/8,1/2
STKS32004 BSW 1/4,5/16,3/8,7/16,1/2
STKS36001 BSC/Brass 1/4,5/16,3/8,7/16,1/2
Range kits include high speed steel Taps, Inserts and Installation/Tang Break Off Tools




link to American Threads Forms

link to Metric Threads Forms

link to Recoil Screw Thread Inserts



 .
