  2. Roper Whitney # 5 Jr. Handpunch
5 jr kit

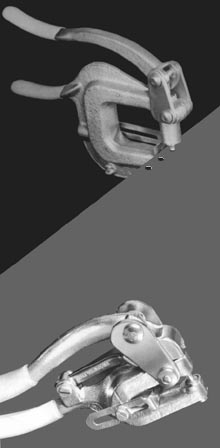

Roper Whitney # 5 Jr. Handpunch


Portable, Light Duty


Light Duty Portable Punches are for limited punching power (1.2 tons or less.) They're easy to carry in the pocket, on a belt or in a tool box. Hardened, machined bearing surfaces are used in these tools to provide dependable long life within the rated capacity.

  • Maximum rated capacity: * 1.2 tons
  • Smallest available
  • Hand operation
  • Adjustable stop gauge

The No. 5 Jr. punch has a standard 1 3/4-inch throat depth, while the No. XX has a deep throat configuration to punch up to 3 1/4-inch from the edge. The No. XX may be used to punch light channels with 1" minimum inside dimension and 1 3/8" maximum flange. Both punches have optional mounting bases, and are also available as kits with a standard assortment of round punches and dies in a durable plastic box.

* Refer to the tonnage chart to determine if the rated capacity of this tool will accommodate the type and thickness of metal and the size and shape hole that you will be punching. Do not, under any condition, exceed the rated capacity of this tool.

Dimensions

Reference No. 5 Jr No. XX
IN. MM IN. MM
A 8 1/4 209.55 10 1/4 260.35
B 3 3/4 96.84 6 3/8 161.93
C 1 3/4 44.45 3 1/4 82.55
D 7/16 11.11 2 1/8 53.98
E 5/16 7.94 9/16 14.29
F 9/32 7.14 9/16 14.29
G 1 13/32 35.72 1 5/8 41.28


Light Duty Portable Punches



Dimensions

Bench Mount BasesCase

Ordering Guide
Description Catalog No. Weight(Lbs.)
No. 5 Jr. No. XX No. 5 Jr. No. XX
Tool in Kit*** Whi.5Jr* 135010001** 4 9 1/2
Bench Mounting Base 139010050 139010001 3/4 1 1/8

* Includes tool, and one 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", and 9/32" round punch and die, and plastic box.
** Includes tool, and one 5/32",  7/32",  9/32", 11/32", 13/32", 15/32", and 17/32"  round punch and die, and plastic box.
*** No substitutions of punches and dies furnished unless 12 or more tools ordered.
Â¥ Includes one 3/16" round punch and die.
± Includes one 9/32" round punch and die.

Punches and Dies

Order additional punches and dies from Roper Whitney Punch & Die Part List List (574K )

Typical Size Ranges
  type o
Type O		 type m
Type M		 type n
Type N		 type p
Type P		 type r
Type R		 type s
Type S		 type t
Type T		 type d
Type D
No. 5
Jr.		 1/16 - 9/32 1/8  x 3/16 -
1/4 x 9/32		 1/8 x 3/16 -
5/32 x 7/32		 1/8 x 3/16 -
1/4 x 9/32		 1/8 -3/16 5/32 - 7/32 5/32 - 7/32 3/16 x 1/8 -
9/32 x 1/4
No.
XX		 1/16 - 17/32 1/8 x 3/16 -
7/16 x 1/2		 1/8 x 3/16 -
5/16 x 3/8		 1/8 x 3/16 -
7/16 x 1/2		 1/8 - 17/64 3/16 - 3/8 3/16 - 3/8 3/16 x 1/8 -
17/32 x 1/2
spacer






Back to Top of Page

Chart #1 Tons of Pressure Required to Punch Mild Steel
Round
Hole
Diameter		 Ga. 20 18 16 14 12 11 10 3/16" 1/4" 5/16" 3/8" 1/2"
In. .036 .048 .062 .075 .105 .120 .135 .188 .250 .312 .375 .500
1/8"   .4 .5 .6 .7 1.0 1.2 1.3 - - - - -
3/16"   .5 .7 .9 1.1 1.5 1.8 2.0 2.8 - - - -
1/4"   .7 .9 1.2 1.5 2.1 2.4 2.6 3.7 4.9 - - -
5/16"   .9 1.2 1.5 1.8 2.6 2.9 3.3 4.6 6.1 7.8 - -
3/8"   1.1 1.4 1.8 2.2 3.1 3.5 4.0 5.5 7.4 9.2 11.1 -
7/16"   1.2 1.6 2.1 2.6 3.6 4.1 4.6 6.4 8.6 10.7 12.8 -
1/2"   1.4 1.9 2.3 2.9 4.1 4.7 5.3 7.4 9.8 12.3 14.8 19.7
9/16"   1.6 2.1 2.6 3.3 4.6 5.1 5.9 8.3 11.1 13.9 16.5 22.0
5/8"   1.8 2.4 2.9 3.7 5.1 5.9 6.6 9.2 12.3 15.4 18.5 24.6
11/16"   1.9 2.6 3.2 4.0 5.7 6.2 7.3 10.1 13.5 17.0 20.2 26.9
3/4"   2.1 2.8 3.5 4.4 6.2 7.1 7.9 11.0 14.7 18.5 22.1 29.5
13/16"   2.3 3.1 3.8 4.8 6.7 7.6 8.6 12.0 16.0 20.0 23.8 31.8
7/8"   2.5 3.3 4.1 5.1 7.2 8.3 9.2 12.9 17.2 21.5 25.8 34.4
15/16"   2.6 3.5 4.4 5.5 7.7 8.8 9.9 13.8 18.4 23.0 27.5 36.8
1"   2.8 3.8 4.7 5.9 8.2 9.4 10.6 14.8 19.7 24.6 29.5 39.4
1 1/2"   4.2 5.5 7.0 8.8 12.3 14.0 25.9 22.0 34.4 43.0 51.5 68.8
2"   5.6 7.5 9.5 11.7 16.4 18.8 21.0 29.5 39.3 49.0 59.0 78.5
2 1/2"   7.0 9.4 11.7 14.7 20.5 23.5 26.5 36.8 49.0 61.5 73.6 98.2
3"   8.5 11.3 14.0 17.6 24.5 28.2 31.7 44.2 60.0 76.5 88.4 118.0
3 1/2"   9.9 13.0 16.5 20.5 28.8 32.7 37.0 51.5 68.7 86.0 103.0 137.0
4"   11.3 15.0 18.8 23.5 32.8 37.6 42.2 60.0 78.5 98.0 188.0 157.0





Back to Top of Page
