Engraving Tools Solid Carbide

Engraving tools  are primarily used for machining serial numbers and other inscriptions on a part.

Features | Specifications

  It may also be used, secondarily, as an economic tool for chamfering a corner or as an angle cutter.





  • The tool tip (A) is held to ±0.001 inch tolerance
  • ALTiN+ coating extends tool life
  • Made with premium submicron carbide

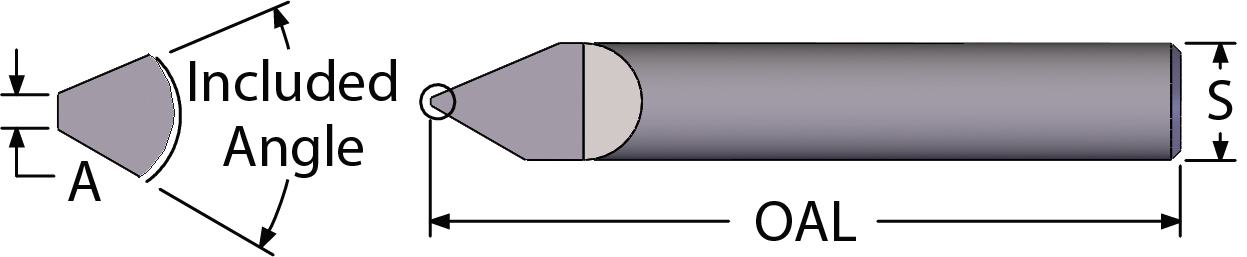

INCLUDED ANGLE “S” SHANK DIA. OAL “A” TIP DIA. ORDER #
UNCOATED ALTiN+
30° 0.1250 1.50 0.005 EN125-30 EN125-30A
30° 0.1875 2.00 0.007 EN187-30 EN187-30A
30° 0.2500 2.50 0.009 EN250-30 EN250-30A
30° 0.3125 2.50 0.011 EN312-30 EN312-30A
30° 0.3750 2.50 0.013 EN375-30 EN375-30A
30° 0.5000 3.00 0.015 EN500-30 EN500-30A
40° 0.1250 1.50 0.005 EN125-40 EN125-40A
40° 0.1875 2.00 0.007 EN187-40 EN187-40A
40° 0.2500 2.50 0.009 EN250-40 EN250-40A
40° 0.3125 2.50 0.011 EN312-40 EN312-40A
40° 0.3750 2.50 0.013 EN375-40 EN375-40A
40° 0.5000 3.00 0.015 EN500-40 EN500-40A
60° 0.1250 1.50 0.005 EN125-60 EN125-60A
60° 0.1875 2.00 0.007 EN187-60 EN187-60A
60° 0.2500 2.50 0.009 EN250-60 EN250-60A
60° 0.3125 2.50 0.011 EN312-60 EN312-60A
60° 0.3750 2.50 0.013 EN375-60 EN375-60A
60° 0.5000 3.00 0.015 EN500-60 EN500-60A
90° 0.1250 1.50 0.005 EN125-90 EN125-90A
90° 0.1875 2.00 0.007 EN187-90 EN187-90A
90° 0.2500 2.50 0.009 EN250-90 EN250-90A
90° 0.3125 2.50 0.011 EN312-90 EN312-90A
90° 0.3750 2.50 0.013 EN375-90 EN375-90A
90° 0.5000 3.00 0.015 EN500-90 EN500-90A
120° 0.1250 1.50 0.005 EN125-120 EN125-120A
120° 0.1875 2.00 0.007 EN187-120 EN187-120A
120° 0.2500 2.50 0.009 EN250-120 EN250-120A
120° 0.3125 2.50 0.011 EN312-120 EN312-120A
120° 0.3750 2.50 0.013 EN375-120 EN375-120A
120° 0.5000 3.00 0.015 EN500-120 EN500-120A
