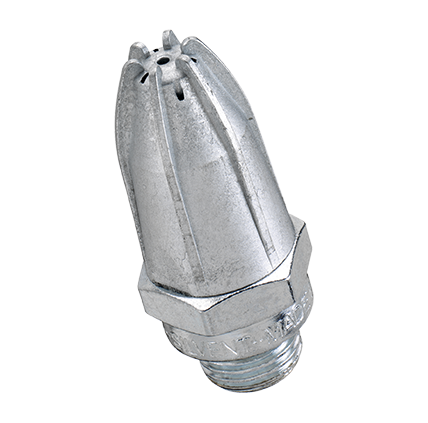

Silvent 209 L

Specs | Blowing properties | Benefits |  Air cone patterns

Order on Line add to cart

  • SILVENT 209 L is part of a new generation of patented Laval nozzles.

  • It is a refinement of Silvent™s 208 and 209 nozzle series and represents an entirely new phase in blowing technology.

  • The effect is achieved by surrounding a core jet moving at supersonic speed with a protective sheath of air running parallel to the direction of the central stream.

  • There is a mix of divergent slots and holes around the Laval orifice that generates a quiet, powerful and laminar air flow.

  • This nozzle provides extremely efficient blowing that utilizes your compressed air optimally.

  • Fully complies with OSHA safety standards and the noise limitations of the EU Machine Directive.

  • Patented.

Model No. SIL.209L209 L





Specifications
  SI units US units
Blowing force 3.4 N 12.0 oz
Air consumption 17 Nm³/h 10.0 scfm
Sound level 78 dB(A)
Air pattern Laval
Connection 1/4" BSP 1/4"-18 NPT
Connection type Male
Dimensions HEX19x44 mm HEX0.75x1.73 mm
Material (nozzle) Zinc
Weight 0.049 kg lbs
Max temp 70 °C 158 °F
Max operating pressure 1.0 MPa 143.0 psi

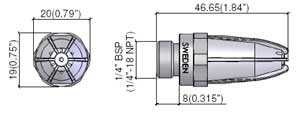

Dimensions







Benefits
Replace open pipe 4 mm 5/32 inch
Noise reduction 17 dB(A) 69 %
Air/cost savings 13 Nm³/h 45.9 scfm
Fulfill OSHA standards Yes
Meet the EU Machine directives Yes







Blowing properties at different pressures
SI units (kPa) 200 400 600 800 1000
Blowing force (N) 1.4 2.7 4.0 5.3 6.8
Air consumption (Nm³/h) 8.5 13.8 20.1 26.4 32.2
Sound level (dB(A)) 70.0 75.5 78.7 83.0 86.0
US units (psi) 40 60 80 100 120
Blowing force (oz) 6.9 10.1 13.0 16.3 20.0
Air consumption (scfm) 6.5 8.4 11.0 13.6 16.0
Sound level (dB(A)) 72.5 75.8 78.1 81.6 84.3

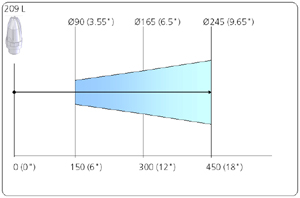

Air cone
Air cone patterns and velocity distribution
SI units (mm) 50 100 200 300 400 500
Air pattern (ø) 40 65 115 165 215 265
Velocity (m/s) 253 206 110 79 57 52
US units (inch) 2 4 8 12 16 20
Air pattern (ø) 1.57 2.56 4.53 6.50 8.46 10.43
Velocity (ft/s) 830 676 361 259 187 171
