Silvent SIL.920A

SILVENT SIL.920A, SIL.920ABSP. A  flat nozzle that generates a broad and efficient air cone.

Specs | Blowing properties | Benefits |  Air cone patterns

Order on Line add to cart






920 A

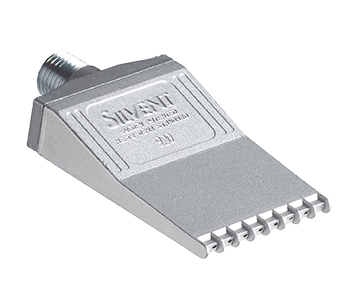

  • SILVENT SIL.920A, SIL.920ABSP flat nozzle that generates a broad and efficient air cone.

  • Outstanding for use wherever a wide but thin striking surface is required.

  • Flat nozzles are suitable for most areas of application, such as: drying, transporting, cooling, cleaning etc.

  • Often used in manifold systems, providing silent and highly efficient air knives.

  • Made of zinc with 1/4" male connection thread.

  • The exhaust ports are protected from external forces by fins.

  • Fully complies with EU Machine Directive noise limitations and OSHA safety regulations.

  • Patented.









Specifications
  SIL.920ABSP SIL.920A
  SI units US units
Blowing force 5.5 N 19.4 oz
Air consumption 30 Nm³/h 17.7 scfm
Sound level 81 dB(A)
Air pattern Flat
Connection 1/4" BSP 1/4"-18 NPT
Connection type Male
Dimensions 46.3x14.3x80 mm 1.82x0.56x3.15 inch
Material (nozzle) Zinc
Weight 0.120 kg 0.265 lbs
Max temp 70 °C 158 °F
Max operating pressure 1.0 MPa 143.0 psi

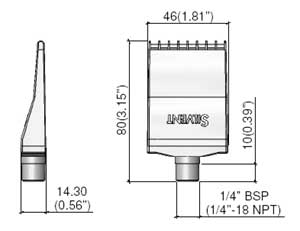

Dimensions







Benefits
Replace open pipe 6 mm 1/4 inch
Noise reduction 21 dB(A) 77 %
Air/cost savings 37 Nm³/h 130.6 scfm
Fulfill OSHA standards Yes
Meet the EU Machine directives Yes







Blowing properties at different pressures
SI units (kPa) 200 400 600 800 1000
Blowing force (N) 2.0 4.3 7.0 9.2 11.4
Air consumption (Nm³/h) 12.0 25.0 38.0 50.1 62.0
Sound level (dB(A)) 72.0 79.1 83.3 86.6 88.4
US units (psi) 40 60 80 100 120
Blowing force (oz) 10.4 16.2 22.1 27.8 33.7
Air consumption (scfm) 10.8 15.4 20.0 24.6 29.2
Sound level (dB(A)) 75.1 79.3 82.5 85.0 87.0

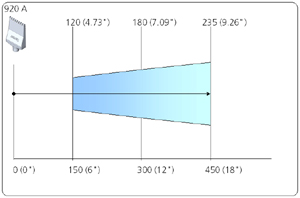

Air cone
Air cone patterns and velocity distribution
SI units (mm) 50 100 200 300 400 500
Air pattern (width) 80 100 140 180 220 260
Air pattern (height) 40 60 100 140 180 220
Velocity (m/s) 122 100 57 40 36 33
US units (inch) 2 4 8 12 16 20
Air pattern (width) 3.15 3.94 5.51 7.09 8.66 10.24
Air pattern (height) 1.57 2.36 3.94 5.51 7.09 8.66
Velocity (ft/s) 400 328 187 131 118 108
