Metric Coordinate Measuring Machine Clamp Kits

Metric Coordinate Measuring Machine Clamp Kits are used to properly hold down workpiece during workpiece inspection

Metric Coordinate Measuring Machine Clamp Kits
• For material information see individual components
 • Kits are used to properly hold down workpiece during workpiece inspection.
 • Kit Contains:
 8 Coupling Nuts
 8 Flange Nuts
 2 Serrated End Clamps - 64mm O.A.L.
 2 Serrated End Clamps - 102mm O.A.L.
 2 Serrated End Clamps - 152mm O.A.L.
 2 Steel Step Blocks (Max. Height 41mm)
 2 Steel Step Blocks (Max. Height 64mm)
 2 Steel Step Blocks (Max. Height 152mm)
 24 Studs - 4 Each of 80mm, 110mm, 140mm,
 155mm, 175mm and 200mm long.
 1 Holder
 • Optional T-Slot Nuts available
clamping down block

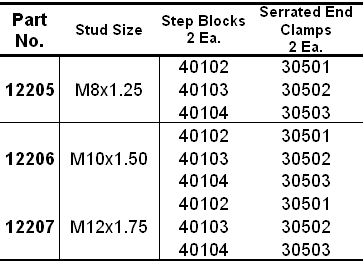

size table

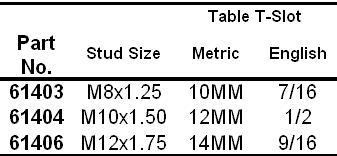

Optional T-Slot Nuts
size table



link to Te-Co product index
