Metric Studs

  • Black Oxide Finish
  • Medium Carbon Steel
  • Tensile Strength: 125,000 p.s.i. min.
  • Special lengths and sizes will be quoted upon request
  • Dimensions in millimeters

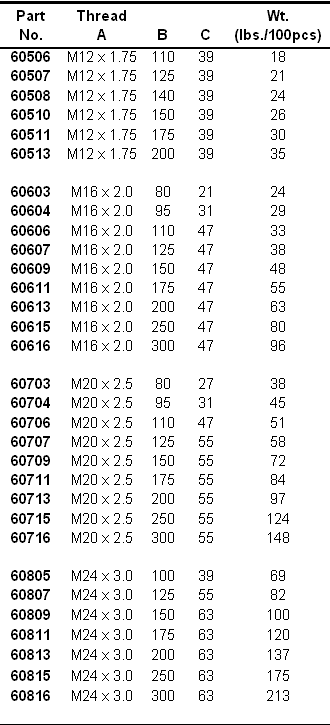

Item Thread Size (A) Total Length (B) Thread Length (C)

TE-60201 M6 x 1.0 50 mm 20 mm
TE-60202 M6 x 1.0 65 mm 20 mm
TE-60203 M6 x 1.0 80 mm 27 mm
TE-60204 M6 x 1.0 95 mm 27 mm
TE-60206 M6 x 1.0 110 mm 31 mm

TE-60208 M6 x 1.0 140 mm 35 mm
TE-60210 M6 x 1.0 150 mm 35 mm
TE-60211 M6 x 1.0 175 mm 35 mm
TE-60213 M6 x 1.0 200 mm 35 mm

TE-60301 M8 x 1.25 50 mm 20 mm
TE-60302 M8 x 1.25 65 mm 20 mm
TE-60303 M8 x 1.25 80 mm 27 mm
TE-60304 M8 x 1.25 95 mm 31 mm
TE-60306 M8 x 1.25 110 mm 31 mm

TE-60308 M8 x 1.25 140 mm 35 mm
TE-60310 M8 x 1.25 150 mm 35 mm
TE-60311 M8 x 1.25 175 mm 35 mm
TE-60313 M8 x 1.25 200 mm 35 mm

TE-60402 M10 x 1.5 65 mm 20 mm
TE-60403 M10 x 1.5 80 mm 27 mm
TE-60404 M10 x 1.5 95 mm 31 mm
TE-60406 M10 x 1.5 110 mm 35 mm
TE-60407 M10 x 1.5 125 mm 35 mm

TE-60408 M10 x 1.5 140 mm 35 mm
TE-60410 M10 x 1.5 150 mm 35 mm
TE-60411 M10 x 1.5 175 mm 35 mm
TE-60413 M10 x 1.5 200 mm 35 mm

TE-60501 M12 x 1.75 50 mm 20 mm
TE-60502 M12 x 1.75 65 mm 20 mm
TE-60503 M12 x 1.75 80 mm 27 mm
TE-60504 M12 x 1.75 95 mm 31 mm
TE-60506 M12 x 1.75 110 mm 39 mm

TE-60507 M12 x 1.75 125 mm 39 mm
TE-60508 M12 x 1.75 140 mm 39 mm
TE-60510 M12 x 1.75 150 mm 39 mm
TE-60511 M12 x 1.75 175 mm 39 mm
TE-60513 M12 x 1.75 200 mm 39 mm

TE-60603 M16 x 2.0 80 mm 21 mm
TE-60604 M16 x 2.0 95 mm 31 mm
TE-60606 M16 x 2.0 110 mm 47 mm
TE-60607 M16 x 2.0 125 mm 47 mm
TE-60609 M16 x 2.0 150 mm 47 mm

TE-60611 M16 x 2.0 175 mm 47 mm
TE-60613 M16 x 2.0 200 mm 47 mm
TE-60615 M16 x 2.0 250 mm 47 mm
TE-60616 M16 x 2.0 300 mm 47 mm

TE-60703 M20 x 2.5 80 mm 27 mm
TE-60704 M20 x 2.5 95 mm 31 mm
TE-60706 M20 x 2.5 110 mm 47 mm
TE-60707 M20 x 2.5 125 mm 55 mm
TE-60709 M20 x 2.5 150 mm 55 mm

TE-60711 M20 x 2.5 175 mm 55 mm
TE-60713 M20 x 2.5 200 mm 55 mm
TE-60715 M20 x 2.5 250 mm 55 mm
TE-60716 M20 x 2.5 300 mm 55 mm

TE-60805 M24 x 3.0 100 mm 39 mm
TE-60807 M24 x 3.0 125 mm 55 mm
TE-60809 M24 x 3.0 150 mm 63 mm
TE-60811 M24 x 3.0 175 mm 63 mm

TE-60813 M24 x 3.0 200 mm 63 mm
TE-60815 M24 x 3.0 250 mm 63 mm
TE-60816 M24 x 3.0 300 mm 63 mm
